DIS-ASSEMBLY/RE-ASSEMBLY

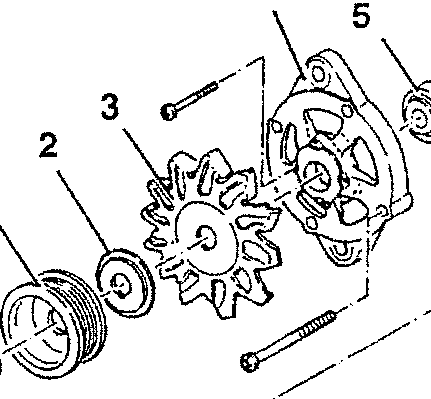

Disassembled alternator components including pulley, spacer, fan, drive side support, drive side bearing, cover plate, rotor, regulator side bearing, stator, rectifying unit, collector ring support, anti-disturbance condenser, voltage regulator-brush holder, and protective cap.
  1. Pulley
  2. Spacer
  3. Fan
  4. Drive side support
  5. Drive side bearing
  6. Cover plate
  7. Rotor
  8. Regulator side bearing
  9. Stator
  10. Rectifying unit
  11. Collector ring support
  12. Anti-disturbance condenser
  13. Voltage regulator - brush holder
  14. Protective cap

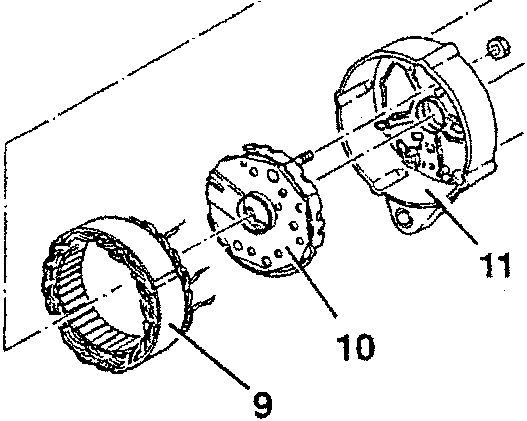

Disassembled alternator components including rotor, stator, rectifying unit, collector ring support, anti-disturbance condenser, voltage regulator-brush holder, and protective cap.
  1. Using tool N. 1.822.138.000 together with wrench USAG XZN M10L slacken the nut fastening the alternator pulley and remove it.
  2. Retrieve the spacer.

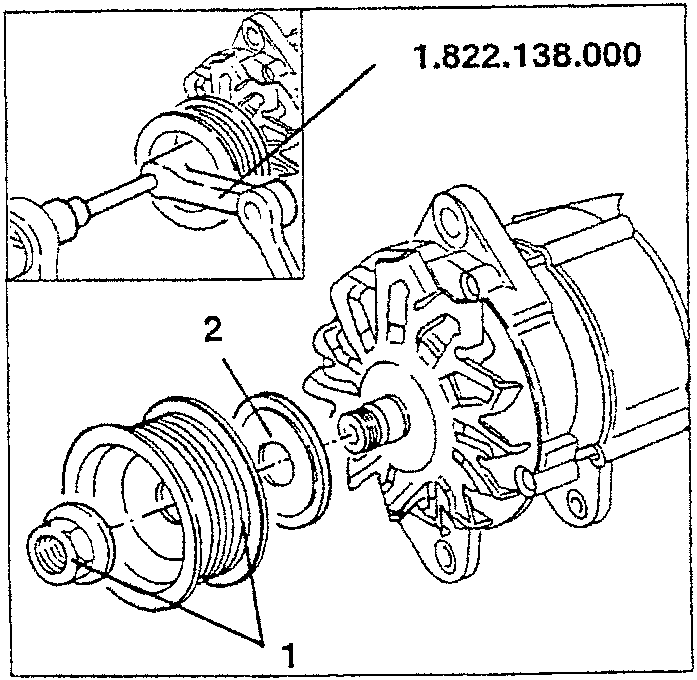

Alternator with tool N. 1.822.138.000 being used to remove the pulley.

300 mm for dynamometer spanner with arm
65 ÷ 74 Nm
6.6 ÷ 7.5 kgr

400 mm for dynamometer spanner with arm
67 ÷ 76 Nm
6.9 ÷ 7.8 kgr

  1. Take the cooling fan off the rotor shaft.

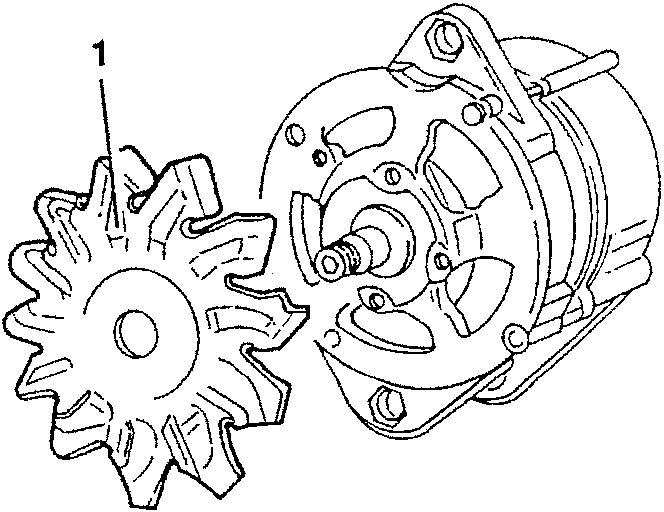

Alternator with rotor and pulley separated.
