CEILING LAMP TIMER

REMOVAL/REFITTING

• Disconnect the battery (-) terminal.

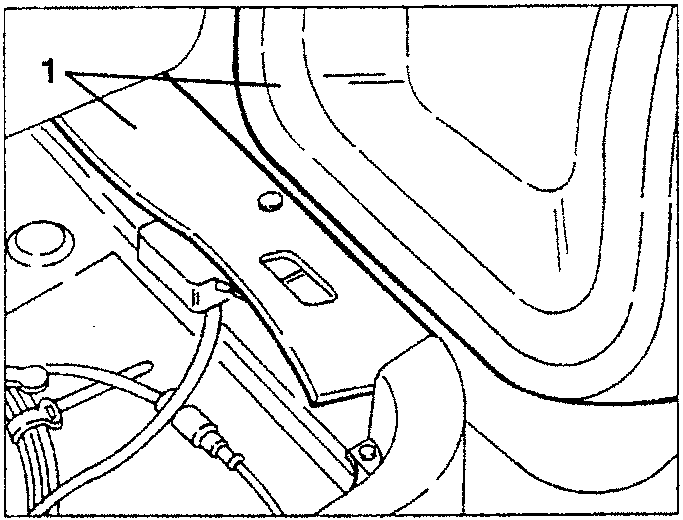

1. Raise the raight-hand side rear cushion and move aside the floor trim to gain access to the ceiling lamp timer.

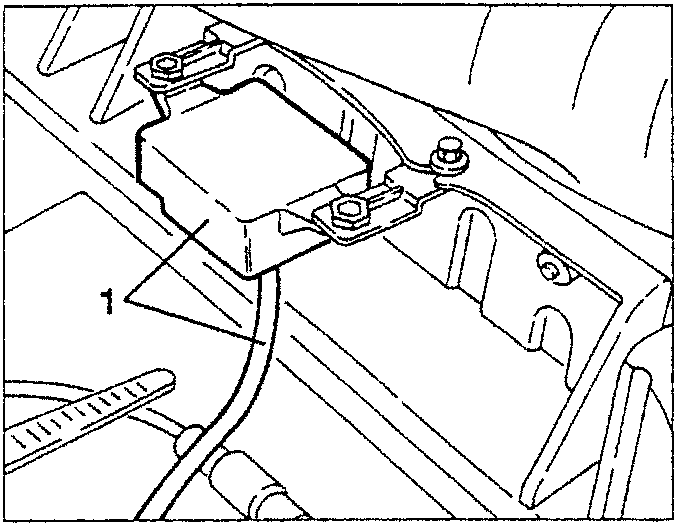

1. Disconnect the electrical connection, slacken the two fastening screws and remove the ceiling lamp timer.
