IGNITION COILS
(1351 IAW)
REMOVING REFITTING
- Disconnect the battery (-) terminal.

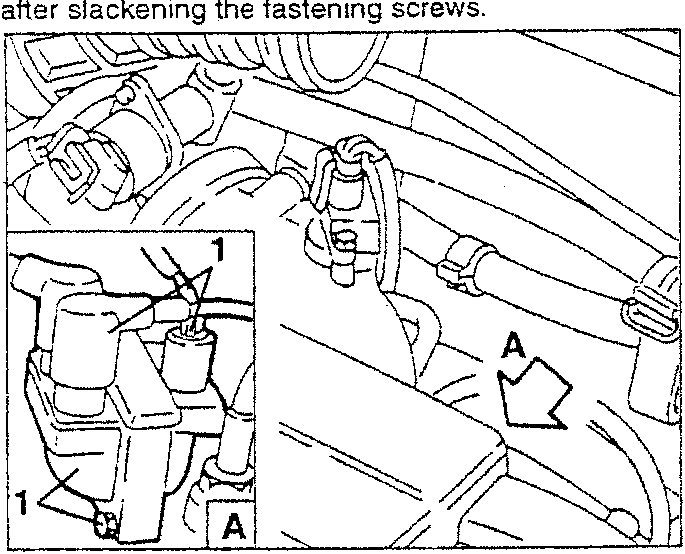

- Disconnect the electrical connection and the spark plug cables from the left ignition coil, then remove it after slackening the fastening screws.
- Remove the resounder, air intake pipe and corrugated sleeve (see specific paragraphs).

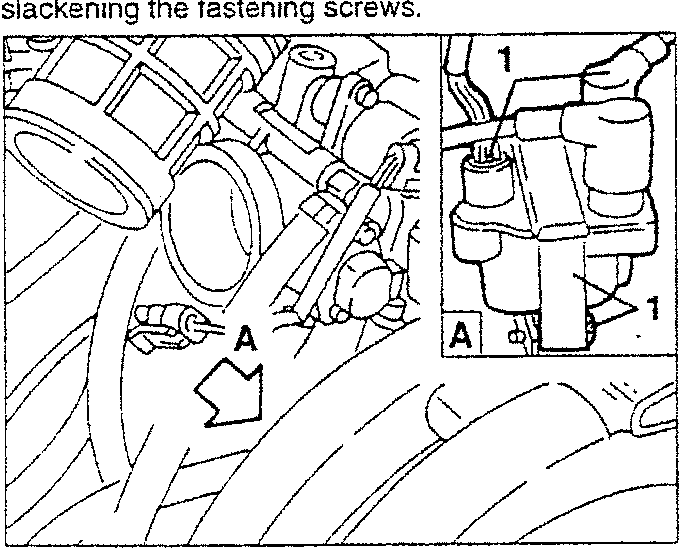

- Disconnect the electrical connection and spark plug cables from the right ignition coil, then remove it after slackening the fastening screws.
IGNITION MODULE
(1596 MP3.1)
REMOVING REFITTING
- Disconnect the battery (-) terminal.
- Disconnect the electrical connection from the constant idle speed actuator.
- Disconnect the electrical connection from the ignition module.

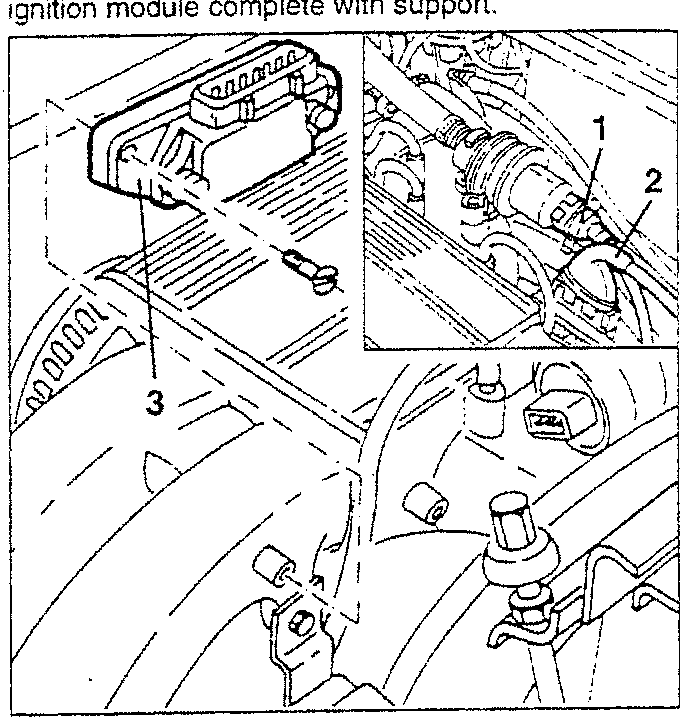

- Slacken the two fastening screws and remove the ignition module complete with support.
IGNITION COILS
(1596 MP3.1 - 1712 M2.10.3)
REMOVING REFITTING
- Remove the intake box (see GROUP 10).

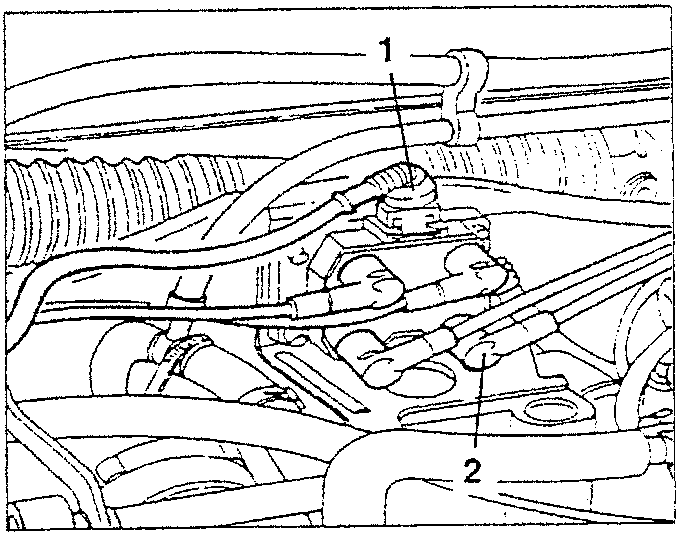

- Disconnect the electrical connection supplying the ignition coils.
- Disconnect the spark plug cables from the ignition coils.
CHECKS AND INSPECTIONS
- Check that the characteristics of the ignition coils are within the specified limits. If not, change the coils.
| Characteristics | Resistance (*) |
|---|---|
| Main winding | 550 mΩ ± 10% |
| Secondary winding | 7.4 kΩ ± 10% |
(*) : At a temperature of 23°C ± 5°C
