145 electrical system diagnosisRemoving/refitting

REMOVING/REFITTING

  • Disconnect the battery (-) terminal.

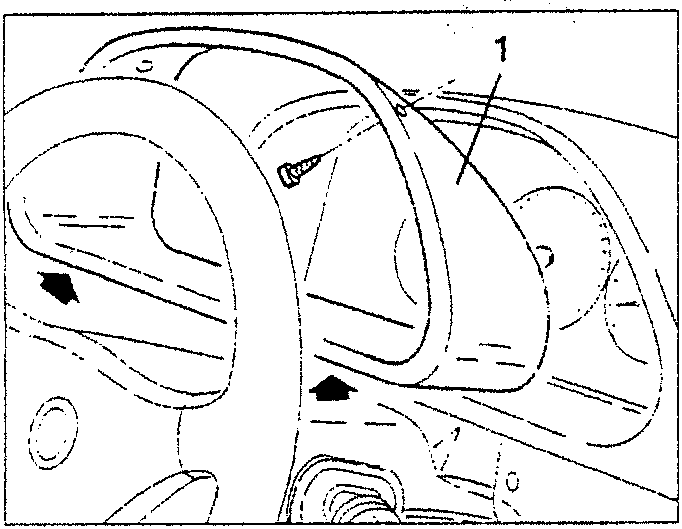

  1. Slacken the two fastening screws and remove the control panel trim plate, prising in the points shown by the arrows.
Control panel trim plate removal

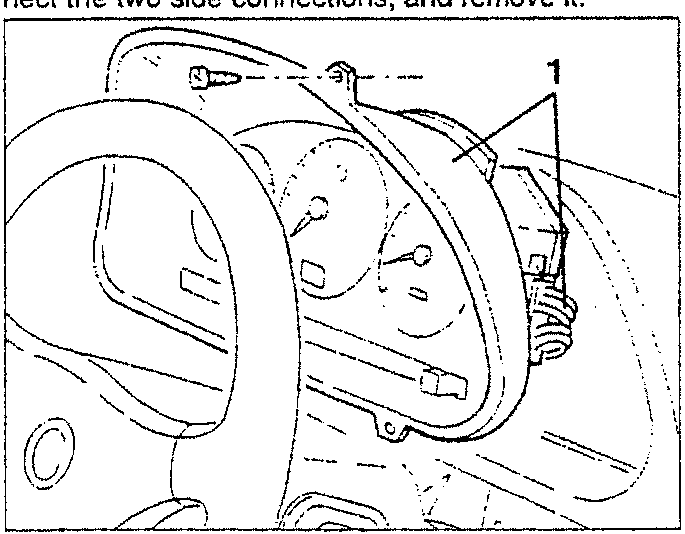

  1. Slacken the four screws fastening the control panel and remove it from its housing jus enough to disconnect the two side connections, and remove it.
Control panel removal

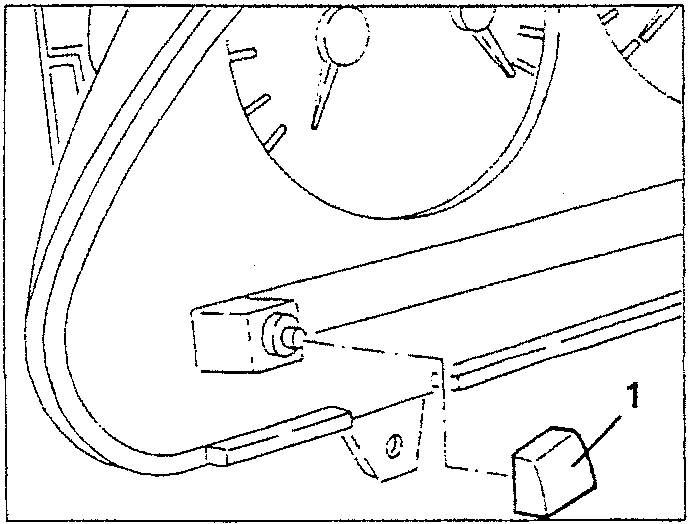

  1. On the bench, remove the trip meter reset button.
Trip meter reset button removal

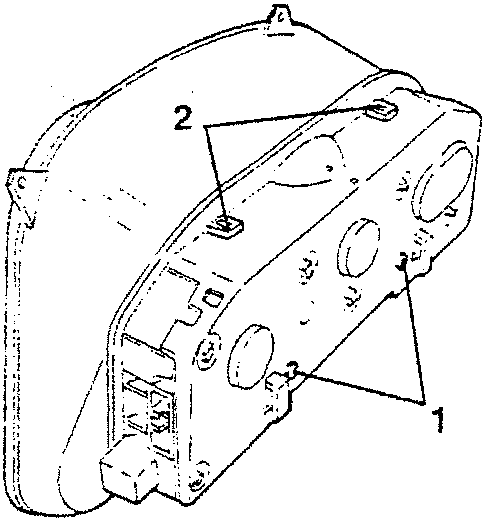

  1. Slacken the two control panel fastening screws from the transparent piece.
  2. Release the two catches and separate the panel from the transparent piece.
Control panel separation from transparent piece

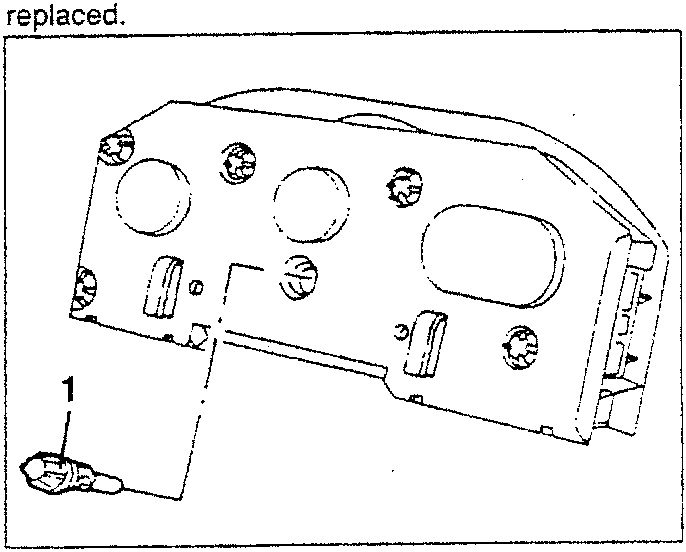

  1. If necessary replace the panel lighting bulbs removing the bulb holder and removing the bulbs to be replaced.
Panel lighting bulb replacement
