FUSE BOX

REMOVAL/REFITTING

  • Disconnect the battery (-) terminal.
  • Remove the valve cover trim (see GROUP 70).
  1. Loosen the two bolts fastening the fuse box to the support hinges.

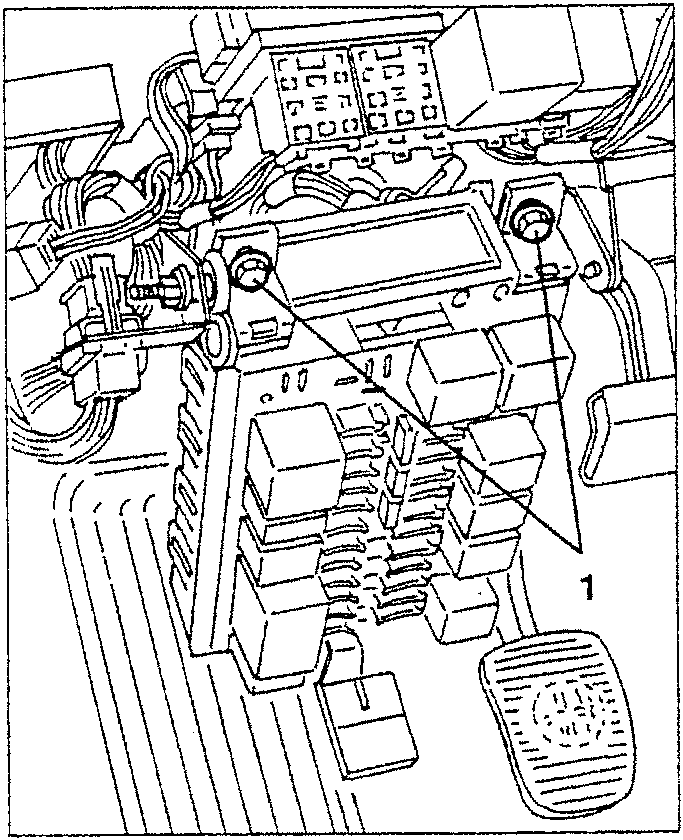

Fuse box with cable bracket and electrical connections
  1. Slacken the two screws fastening the cable bracket.
  • Disconnect the electrical connections from the fuse box and remove it; retrieve the cable bracket.

WINDSCREEN WIPER UNIT

REMOVAL/REFITTING

  • Disconnect the battery (-) terminal.
  • Remove the air inlet grilles (see GROUP 70).
  1. Slacken the two nuts and two screws fastening the windscreen wiper unit.
  2. Raise the windscreen wiper unit just enough to disconnect the two electrical connections, then remove it.

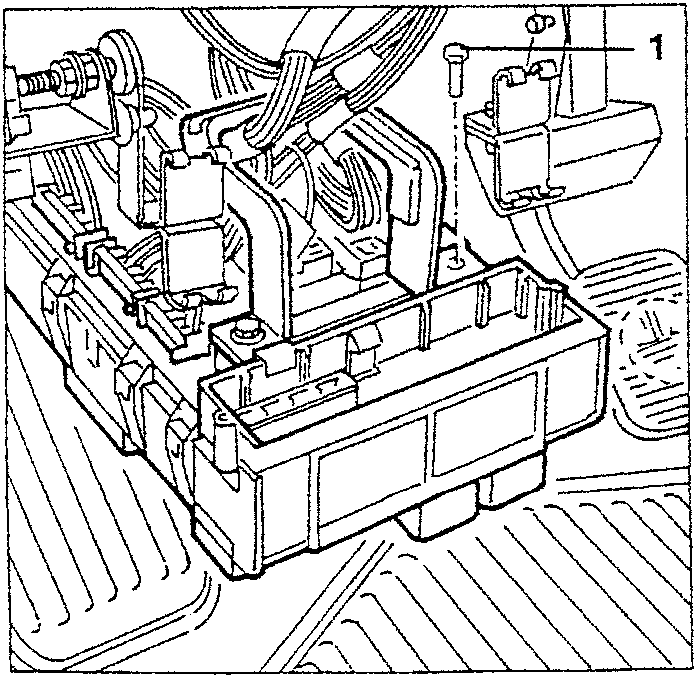

Car fuse box removal diagram with labeled components

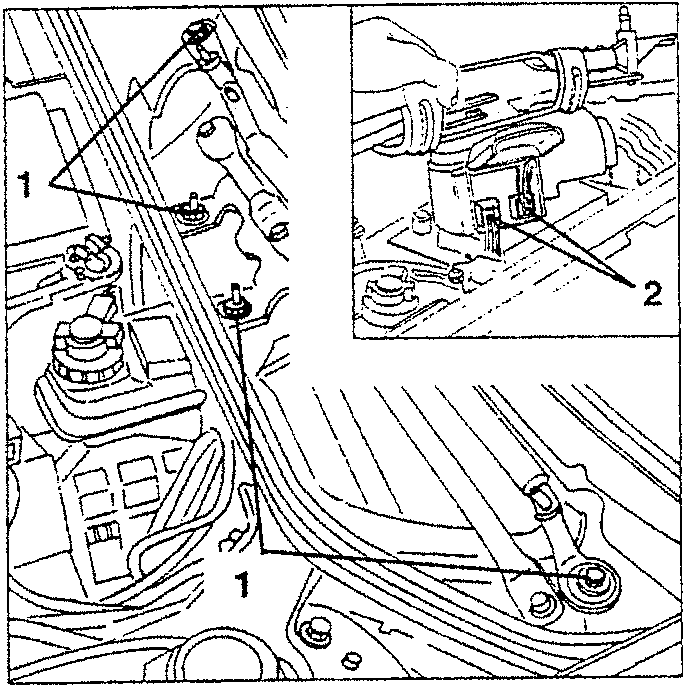

Windscreen wiper unit with nuts and screws

REARSCREEN WIPER UNIT

REMOVAL/REFITTING

  • Disconnect the battery (-) terminal.
  1. Remove the two bulb lids.
  2. Slacken the two screws fastening the inner trim.

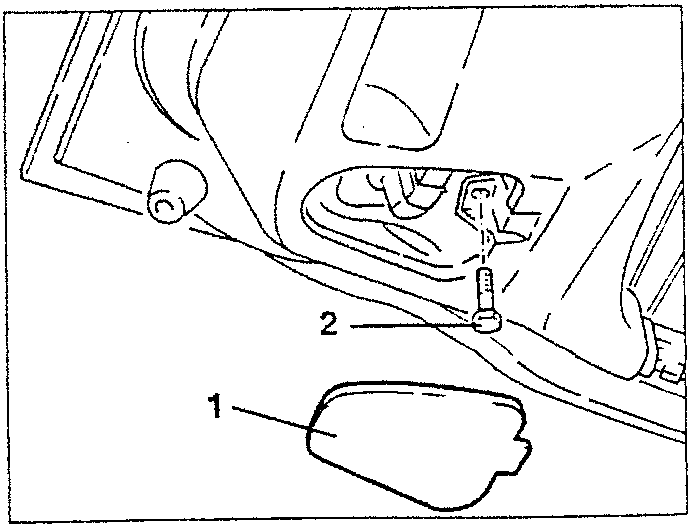

Rear screen wiper unit with bulb lids and screws
