REMOVAL/REFITTING

(for 1910 JTD version)

  • Set the car on a lift.
  • Make sure that the ignition key is at the “STOP” position, then disconnect the battery (-) terminal.
  • Remove the right front wheel and dust guard.
  1. Working as illustrated, on the tensioner, loosen the tension of the engine components belt and remove it.

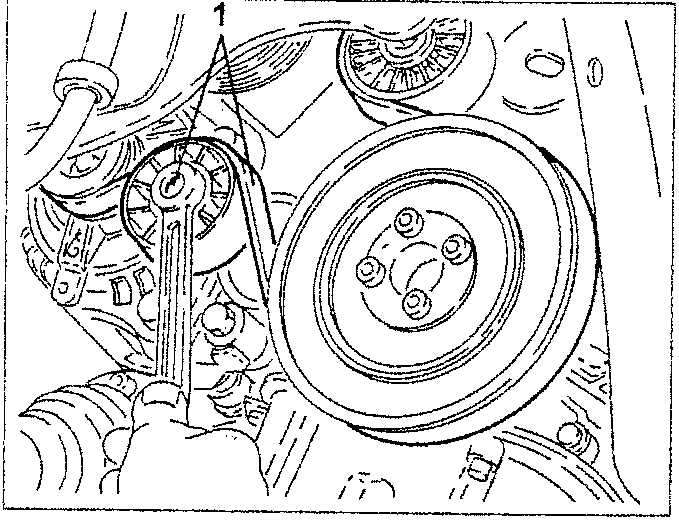

Engine components belt tensioner
  1. Slaken the fastenings and remove the under engine guard.

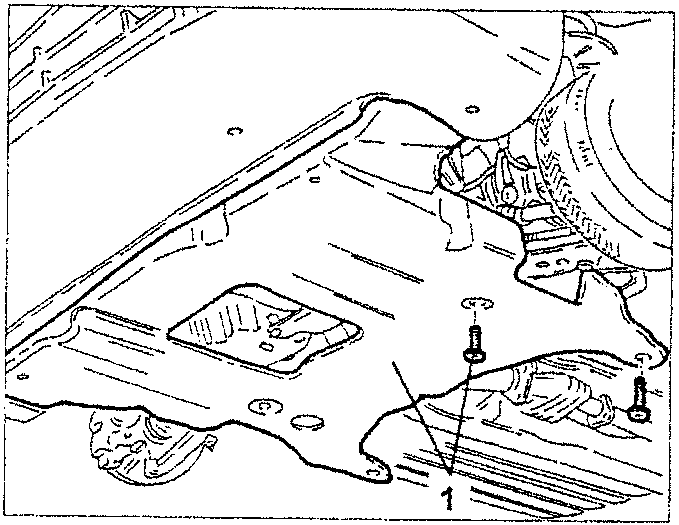

Under engine guard removal

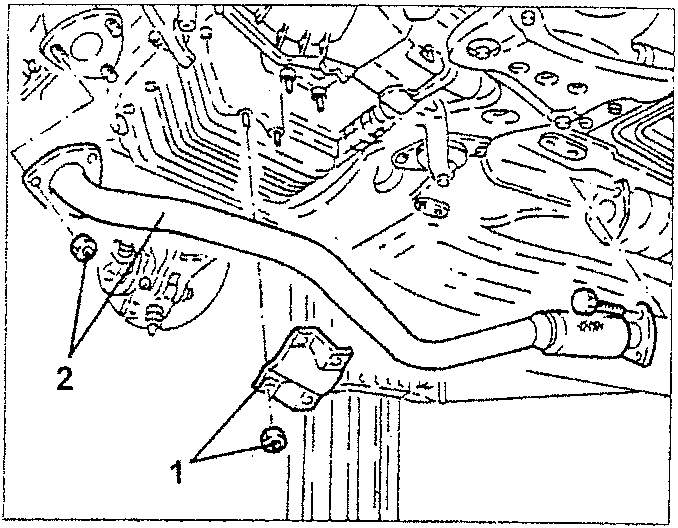

  1. Slaken the fastening nuts and remove the reinforcement bracket.
  2. Slaken the nuts and screws, then remove the front section of the exhaust pipe.
Alternator electrical connections
  • Disconnect the electrical connections from the alternator.
  1. Slacken the alternator fastening bolts, then position it temporarily.

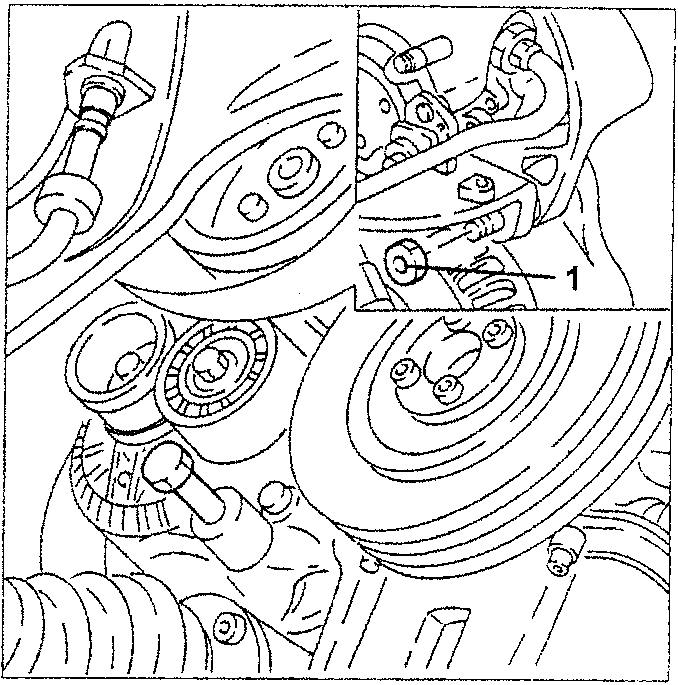

Alternator fastening bolts
  1. Slaken the fastening nuts and remove the heat shield from the power steering box.

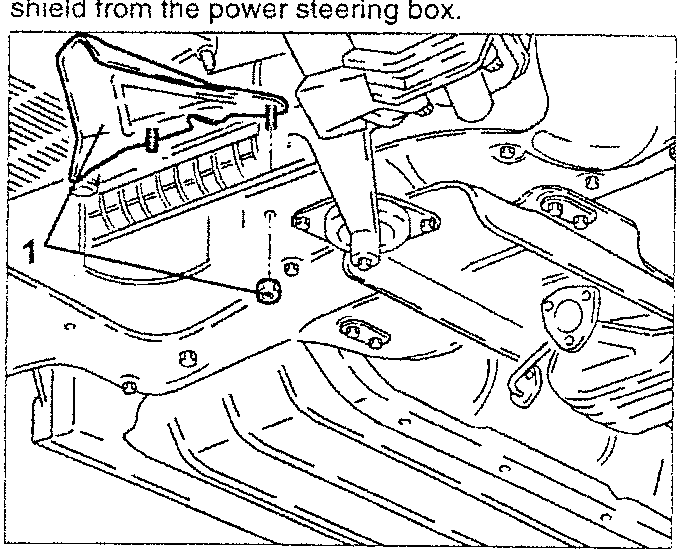

Heat shield removal from power steering box
