145 electrical system diagnosisBattery · page 2 of 2

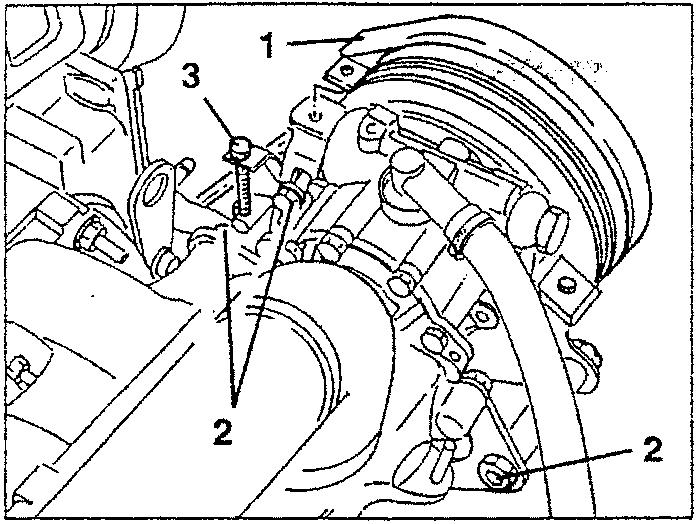

1. Remove the power steering pump belt guard.
2. Slacken the alternator fastening screws.
3. Lower the tension of the power steering pump drive belt working on the micrometric tensioner, then remove it.

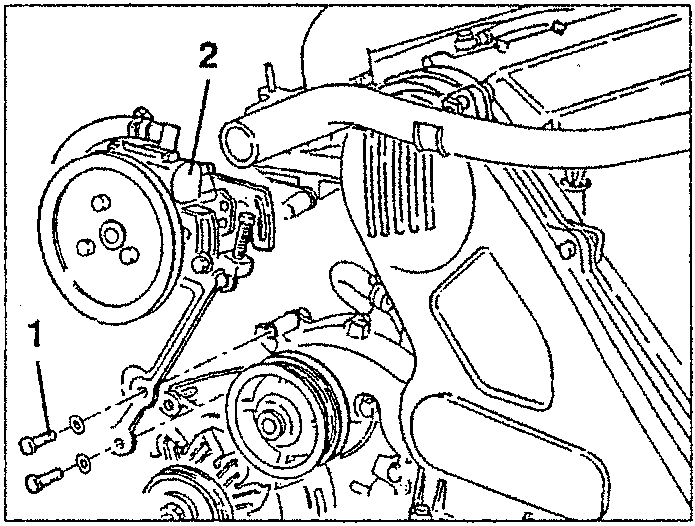

1. Back off the screws slackened previously and the two screws shown in the figure.
2. Remove the power steering pump complete with bracket without disconnecting the hoses.

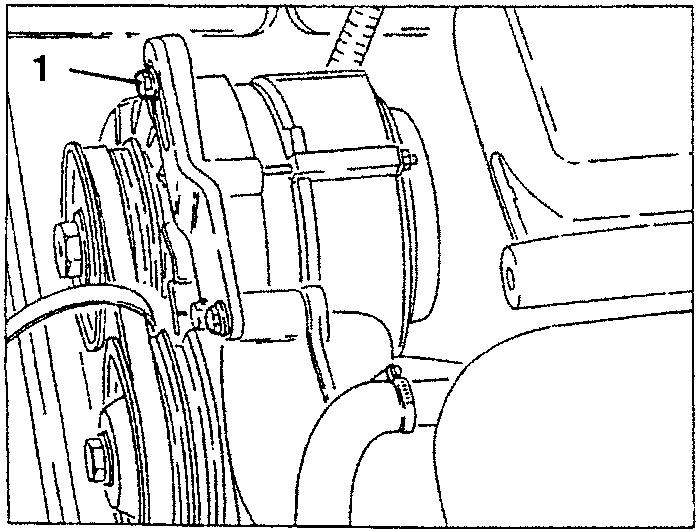

1. Slacken and remove the upper alternator fastening bolt.

• Raise the car.

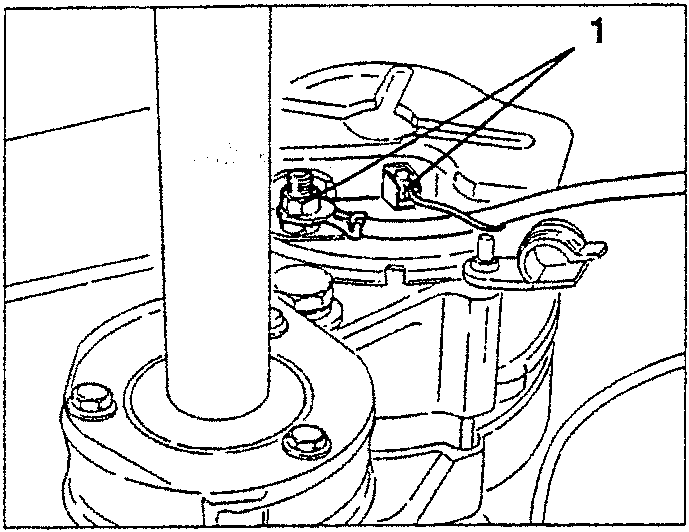

1. Disconnect the alternator connections.

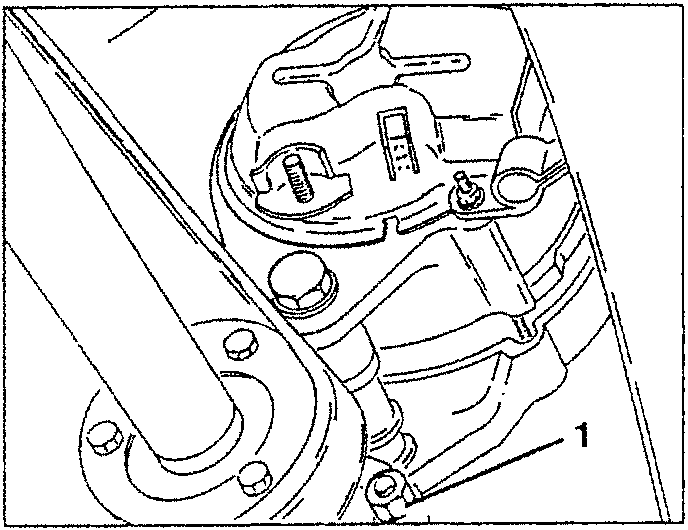

1. Slacken and remove the lower alternator fastening bolt.

• Lower the car.
• Remove the alternator - water pump drive belt and retrieve the power steering pump drive belt.
• Remove the alternator upper support bracket.

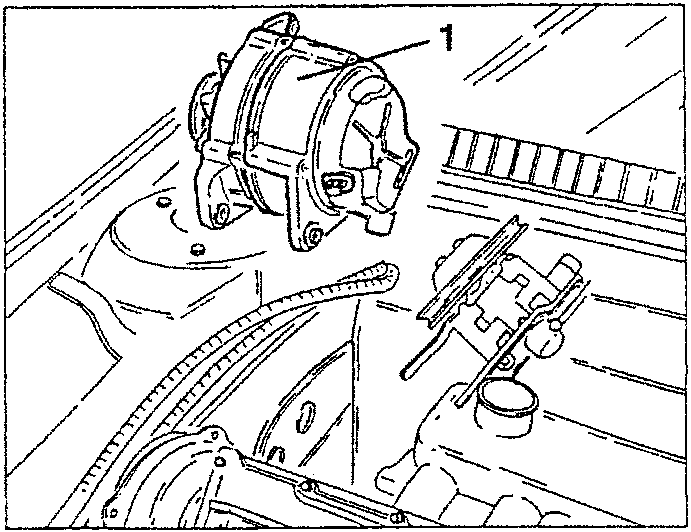

1. Remove the alternator pulling it upwards.
