145 electrical system diagnosisDis - assembly/re - assembly · page 1 of 2
  • Remove the intake box (see GROUP 10).
  1. Disconnect the electrical connections from the alternator.

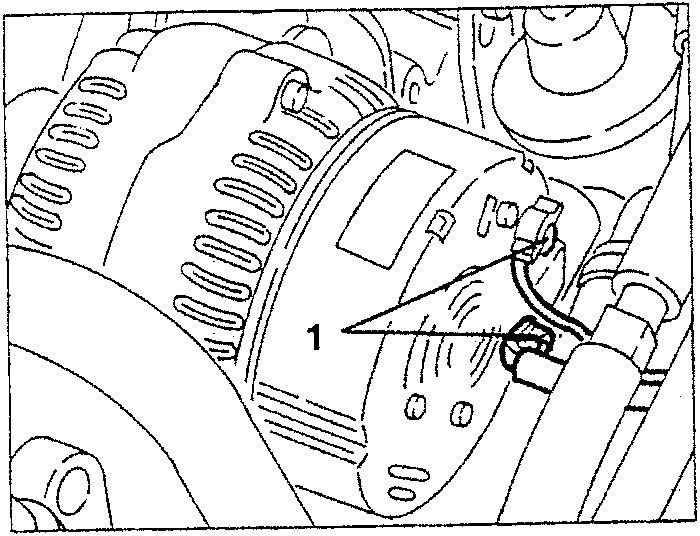

Alternator with electrical connections
  1. Slacken the two bolts fastening the alternator and prise off the drive belt without removing it.
  2. Slacken the fastening bolts completely and remove the alternator.

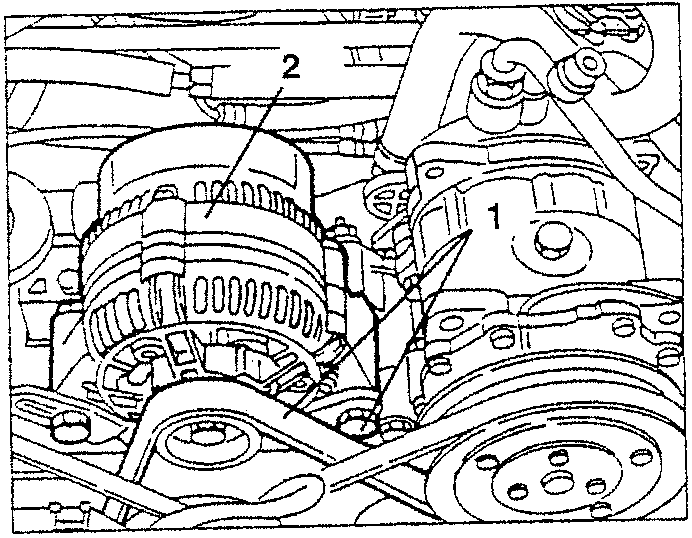

Alternator with drive belt

When refitting, tension the alternator - water pump drive belt (see GROUP 00).

DIS - ASSEMBLY/RE - ASSEMBLY

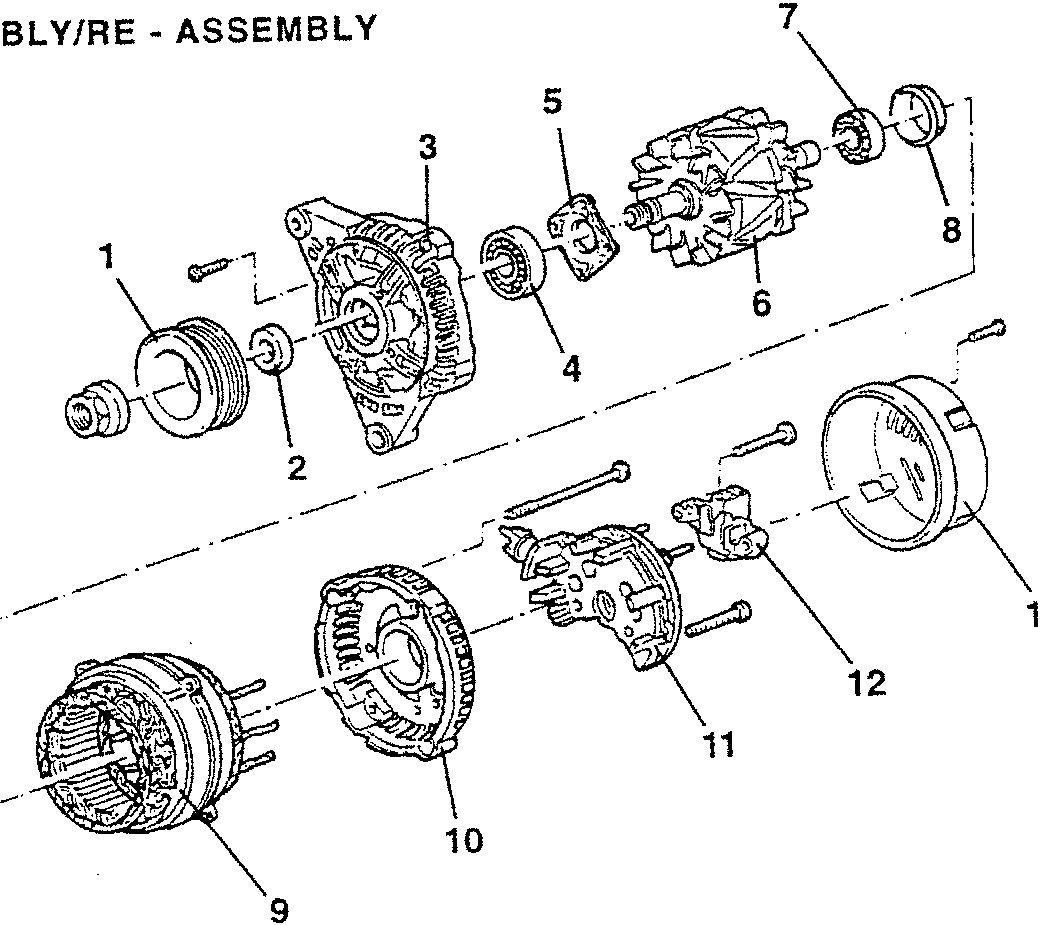

Disassembled alternator parts
  1. Pulley
  2. Spacer
  3. Drive side support
  4. Drive side bearing
  5. Cover plate
  6. Rotor
  7. Regulator side bearing
  8. Centering ring
  9. Stator
  10. Support for collector rings
  11. Rectifier unit
  12. Voltage regulator - brush holder
  13. Protection cap
