Alfa Romeo 145/146 Electrical System Diagnosis Manual, Volume 3 (1994-2001)01 · 145 electrical system diagnosis
01 · Diagnostics

Glow plugs

Make
Alfa Romeo
Model
145/146 Electrical System Diagnosis Manual, Volume 3
Year
1994–2001
Section
Electrical components › Glow plugs
145 electrical system diagnosisGlow plugs

GLOW PLUGS

REMOVAL/REFITTING (for 1910 JTD version)

  • Make sure that the ignition key is in the «STOP» position, then disconnect the (-) battery terminal.
  1. Slacken the fastening nuts and move aside the oil vapour separator.
  2. Slacken the fastening screws and move aside the fuel return manifold pipe.
  3. Disconnect the electrical connections from the glow plugs.
  4. Slacken and remove the glow plugs.

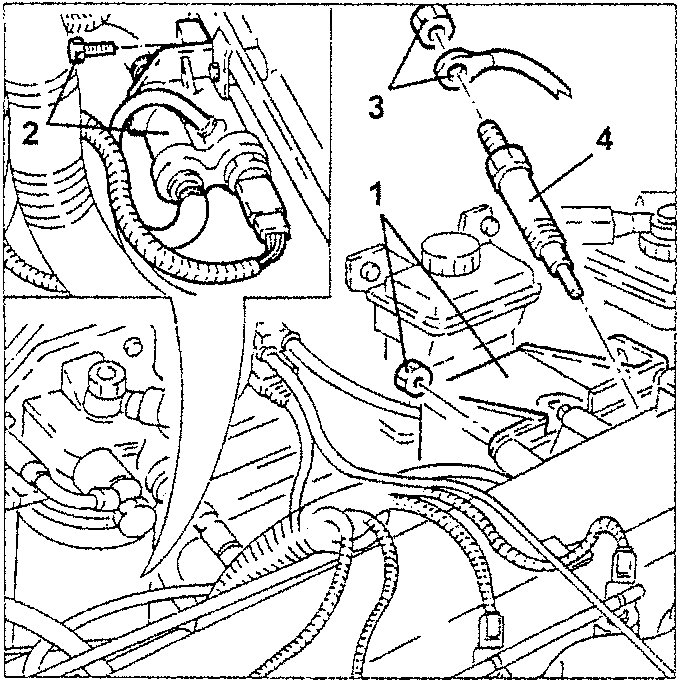

Diagram showing glow plug removal with numbered parts: 1. Glow plug, 2. Electrical connection, 3. Fuel return manifold pipe, 4. Oil vapour separator.
  1. Part 1: Glow plug.
  2. Part 2: Electrical connection.
  3. Part 3: Fuel return manifold pipe.
  4. Part 4: Oil vapour separator.

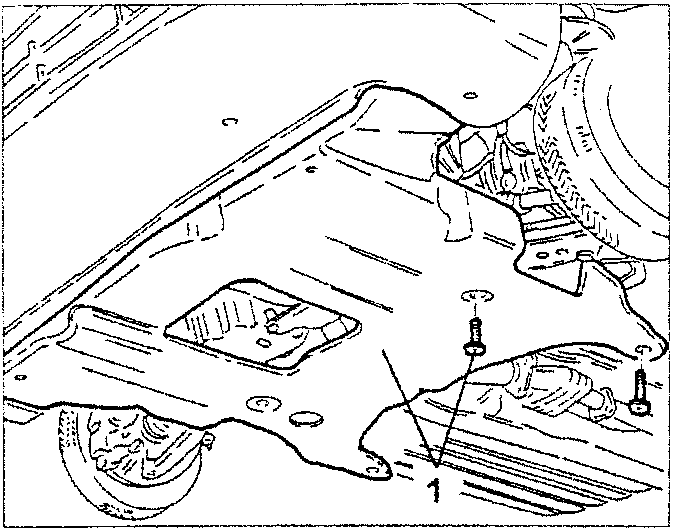

Diagram showing removal of power steering box heat shield with numbered part: 1. Power steering box heat shield.
  1. Slacken the nuts and remove the power steering box heat shield.

STARTER MOTOR

REMOVAL/REFITTING (for 1910 JTD version)

  • Set the car on a lift.
  • Make sure that the ignition key is in the «STOP» position, then disconnect the (-) battery terminal.
  1. Slacken the fasteners and remove the under engine guard.

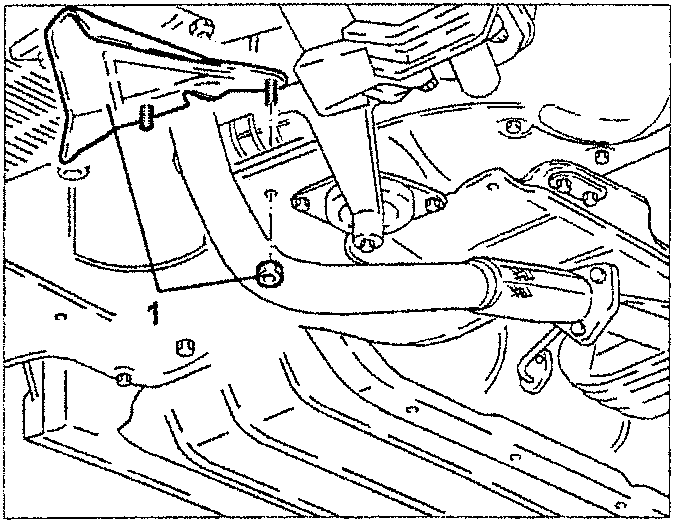

Diagram showing starter motor removal with numbered parts: 1. Starter motor, 2. Electrical connection.
  1. Disconnect the electrical connections from the starter motor.
  2. Slacken the fastening screws and remove the starter motor.

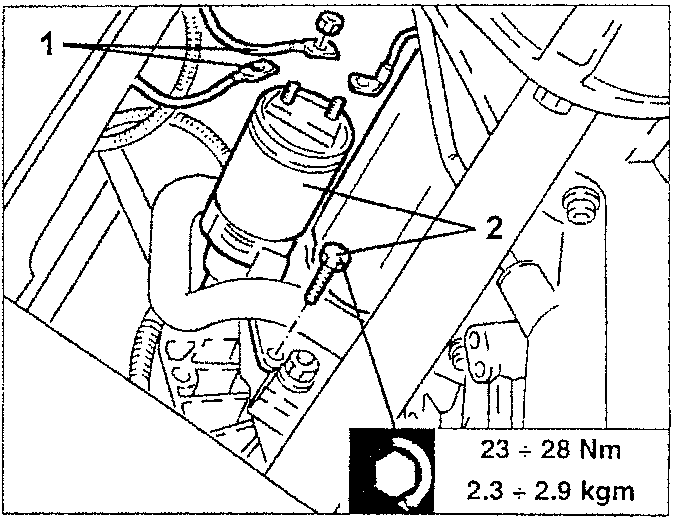

Diagram showing starter motor with torque specification: 1. Starter motor, 2. Fastening screw.

23 ÷ 28 Nm
2.3 ÷ 2.9 kgm
