145 electrical system diagnosisIgnition switch
IGNITION SWITCH
REMOVAL/REFITTING
- Disconnect the battery (-) terminal.
- Remove the steering column half cover.

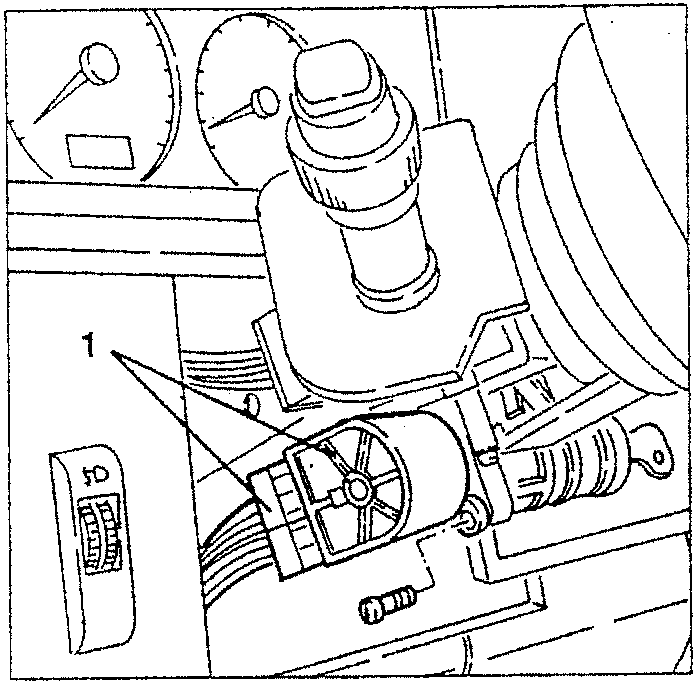

- Slacken the fastening screw, take the ignition switch off the starter block shaft, then remove it after disconnecting the electrical connections.
- Ignition switch
STEERING COLUMN LEVER UNIT
REMOVAL/REFITTING
- Disconnect the battery (-) terminal.
- Remove the steering column half covers (see GROUP 70).

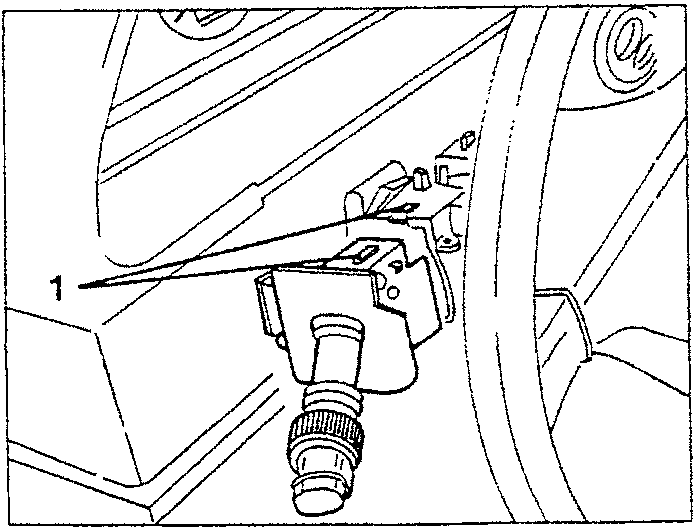

- Contemporaneously press the two fastening tabs and remove the left control lever pulling it outwards.
- Control lever
SERVICES CONTROL UNIT
REMOVAL/REFITTING

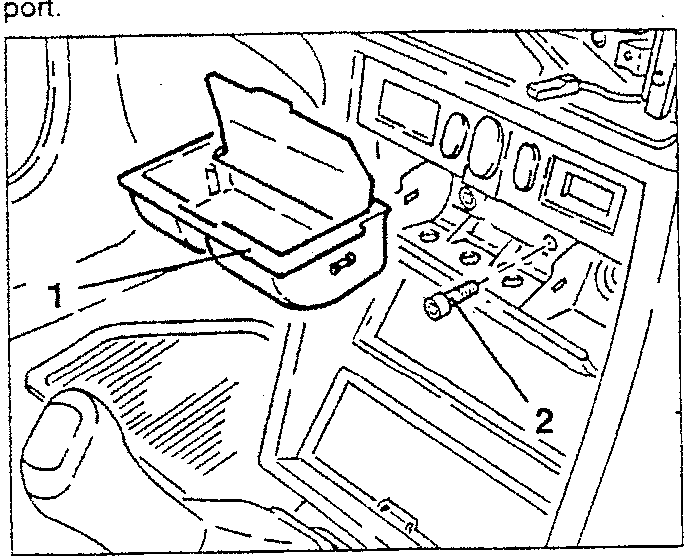

- Remove the ashtray.
- Slacken the two screws fastening the ashtray support.
- Ashtray
- Screw
IGNITION SWITCH

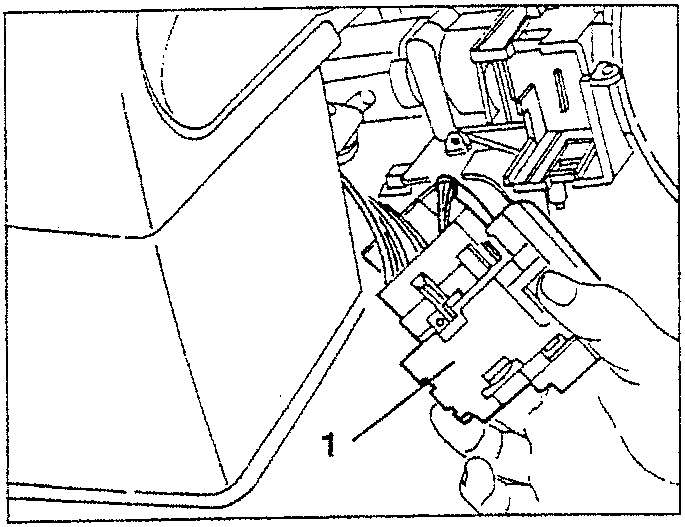

- Disconnect the electrical connection from the left control lever and remove it.

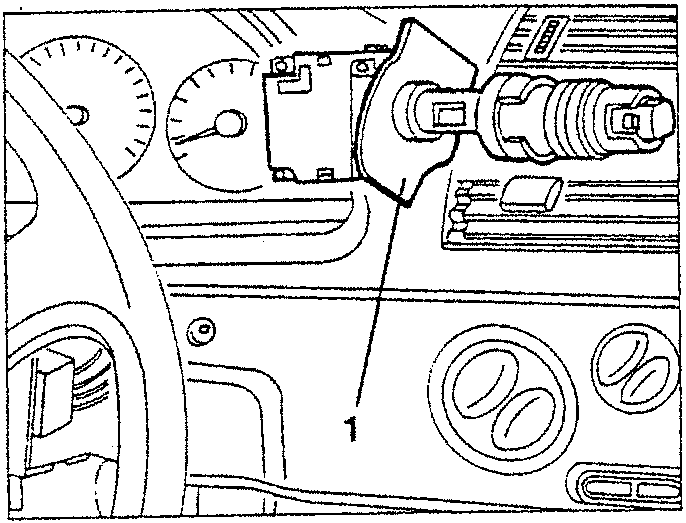

- Proceed in the same way to remove the right control lever.
