145 electrical system diagnosisInjection control unit
INJECTION CONTROL UNIT
(1910 JTD Version)
REMOVAL/REFITTING
- Make sure that the ignition key is in the «STOP» position, then disconnect the (-) battery terminal.

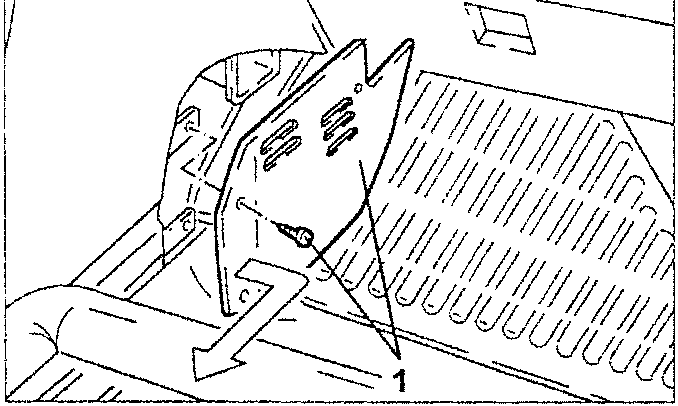

- Slacken the two fastening screws, then remove the trim of the air delivery vent to the feet of the front passenger.

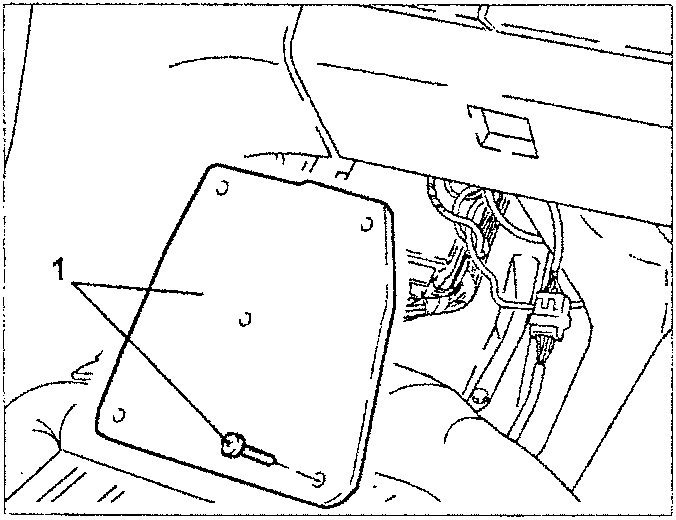

- Move aside the mat, then remove the control unit cover after slackening the fastening screws.

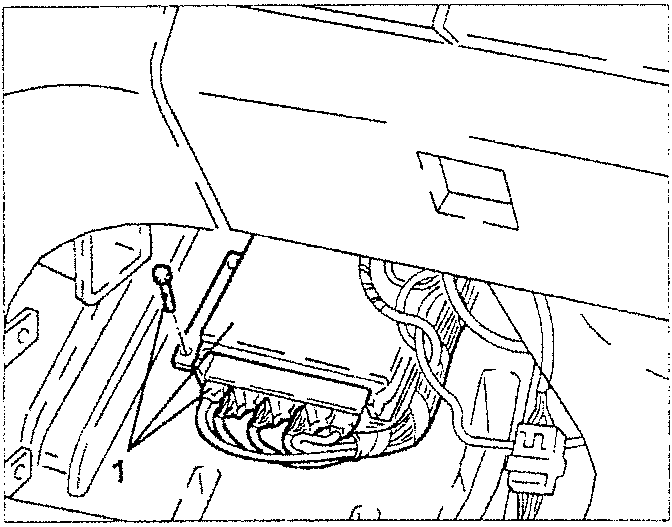

- Slacken the fastening screws, disconnect the electrical connections and remove the injection control unit.
