Replacing climate control unit controls bulbs

REPLACING CLIMATE CONTROL UNIT CONTROLS BULBS

• Remove the climate control unit controls module (see GROUP 50).

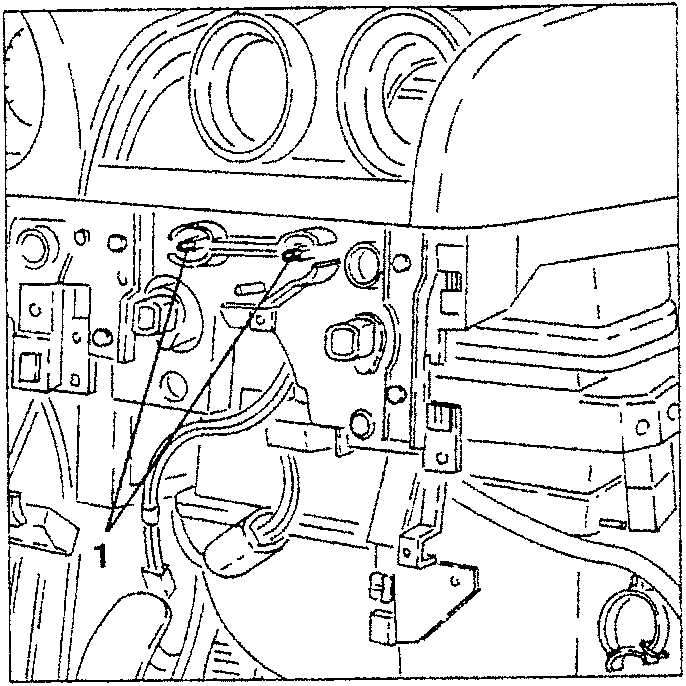

1. Remove the the two bulbs of the climate control unit controls pulling them outwards.

1. Part 1: bulb

REPLACING ASHTRAY AND CIGAR LIGHTER BULBS

• Disconnect the battery (-) terminal.

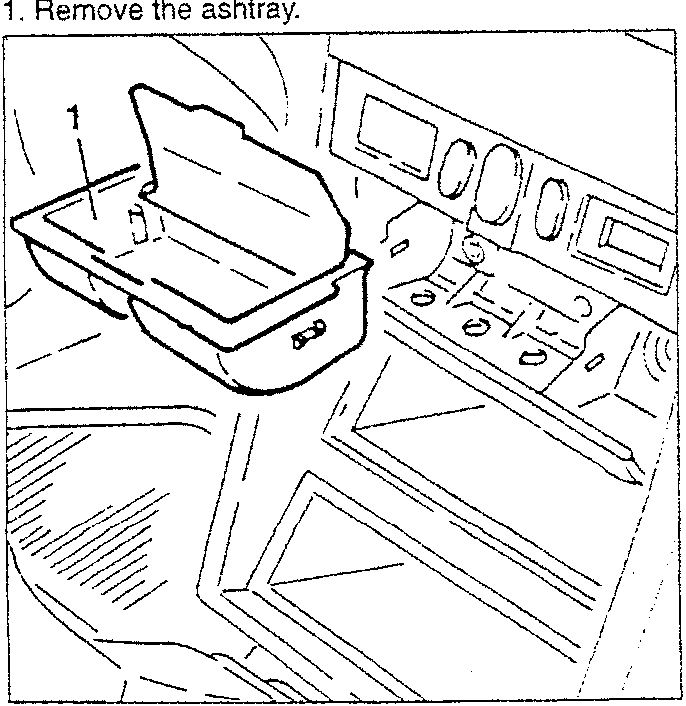

1. Part 1: ashtray

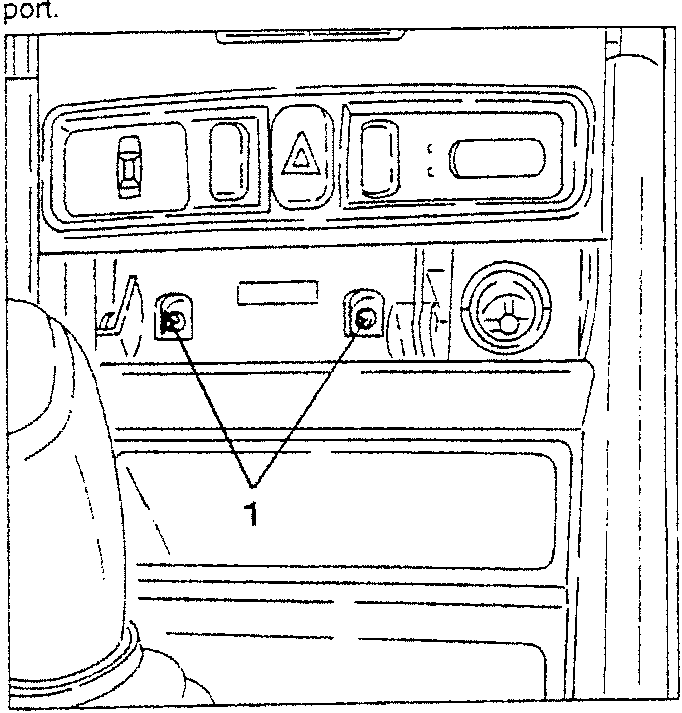

1. Slacken the two screws fastening the ashtray support.
2. Withdraw the ashtray support just enough to gain access to the electrical connections.
3. Withdraw the bulb holder complete with wiring and withdraw the ashtray bulb from it.

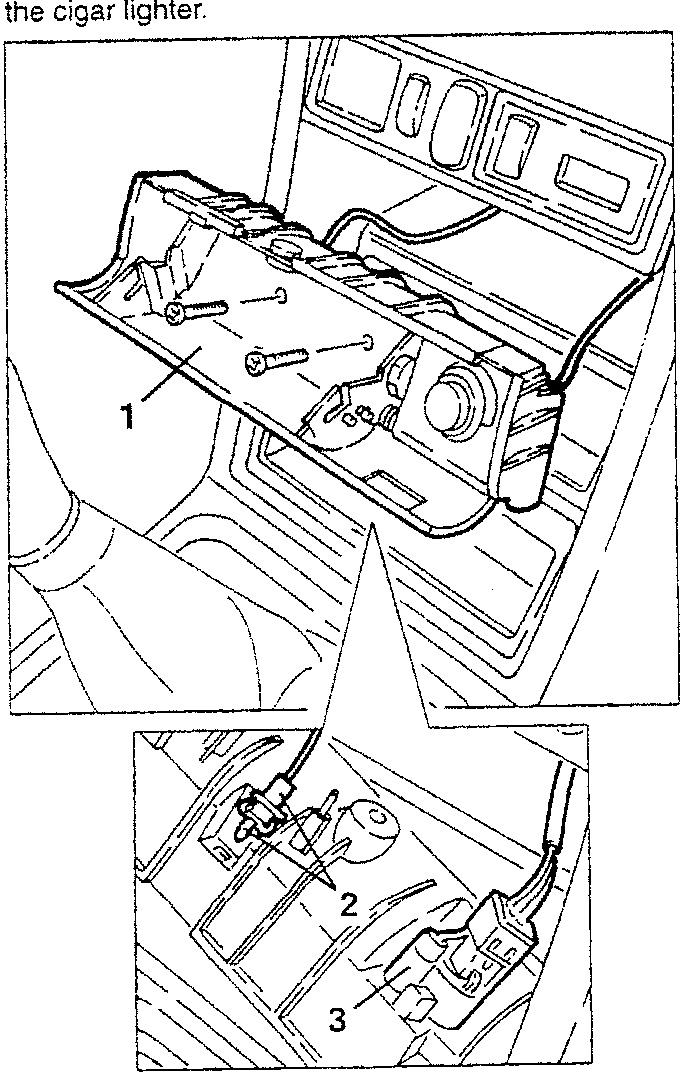

4. Remove the bulb holder and withdraw the bulb from the cigar lighter.

1. Part 1: ashtray support
2. Part 2: bulb holder
3. Part 3: bulb
