145 electrical system diagnosisBattery · page 1 of 2

BATTERY

The battery is located in the left hand side of the engine compartment.

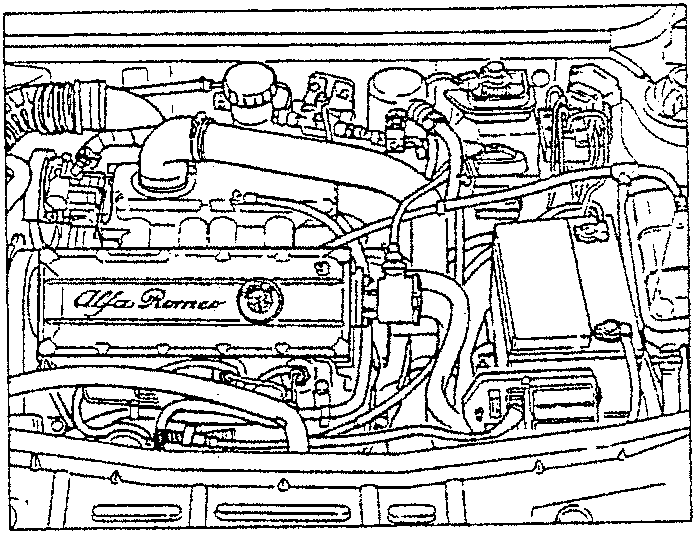

Engine compartment showing battery location

For the description, recharging and maintenance refer to the instructions for the Boxer engines.

REMOVAL/REFITTING

  1. Disconnect the battery terminals.
  2. Slacken the fastening nut and remove the battery clamp.
  3. Remove the battery.

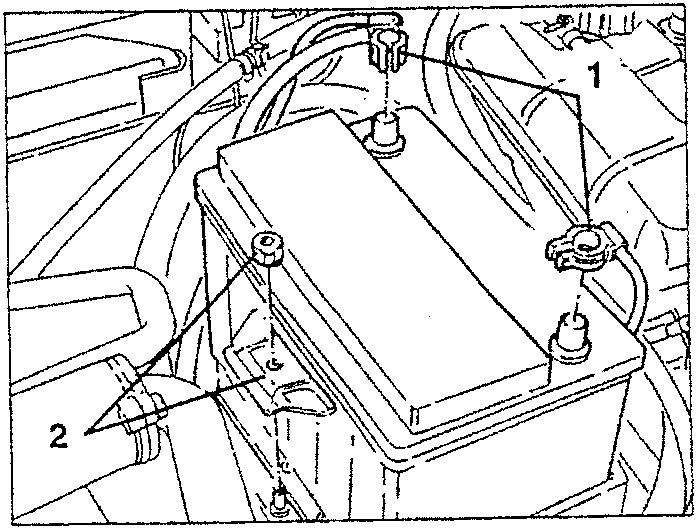

Battery with terminals and clamp

ALTERNATOR

Refer to the section on Boxer engines for the description.

REMOVAL/REFITTING

  • Set the car on a lift.
  • Disconnect the battery (-) cable.
  • Disconnect the oil vapour recirculation hose from the corrugated air intake sleeve.

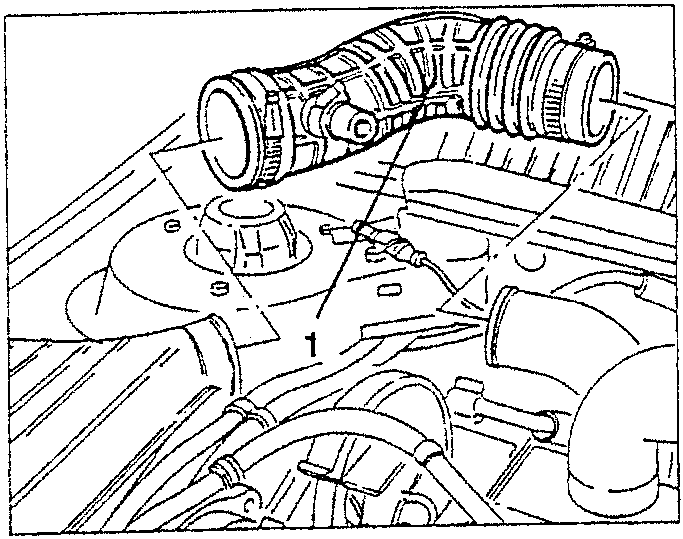

Turbocharger with corrugated sleeve
  1. Remove the corrugated sleeve between the cleaner and the turbocharger.

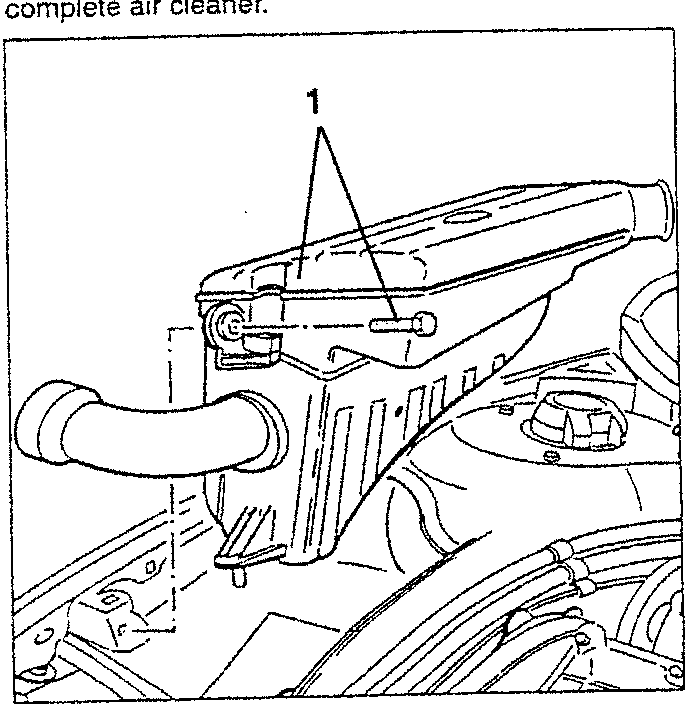

Air cleaner assembly
  1. Slacken the fastening screws and remove the complete air cleaner.

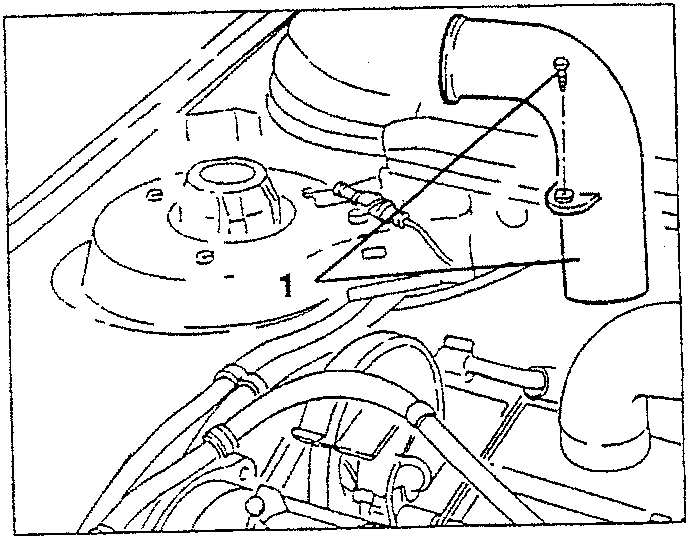

Turbocharger with air intake pipe
  1. Remove the air intake pipe from the turbocharger.
