Alfa Romeo 145/146 Electrical System Diagnosis Manual, Volume 3 (1994-2001)01 · 145 electrical system diagnosis
01 · Diagnostics

Removing/refitting

Make
Alfa Romeo
Model
145/146 Electrical System Diagnosis Manual, Volume 3
Year
1994–2001
Section
Electrical components › Removing/refitting
145 electrical system diagnosisRemoving/refitting

REMOVING/REFITTING

(Specific for T.Spark 16V with gearbox C513.5 from chassis no.............)

  • Set the car on a lift.
  • Disconnect the battery (-) terminal.
  1. Disconnect the electrical connection from the air flow meter.
  2. Disconnect the electrical connection from the intake air temperature sensor.
  3. Slacken the fastening clamp and disconnect the oil vapour recirculation pipe from the cylinder head cover.

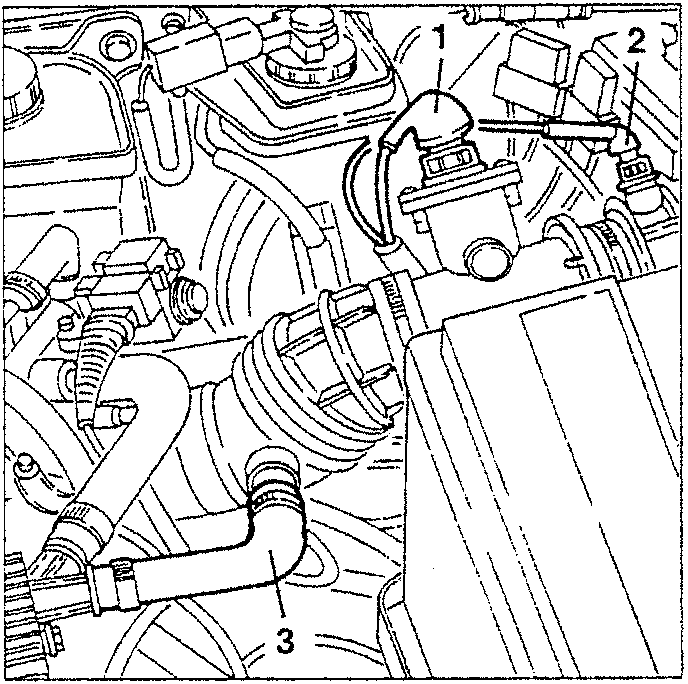

Engine bay showing electrical connections and pipes
  1. 1 Air flow meter electrical connection
  2. 2 Intake air temperature sensor electrical connection
  3. 3 Oil vapour recirculation pipe
  4. Slacken the two fastening clamps, then remove the corrugated sleeve complete.

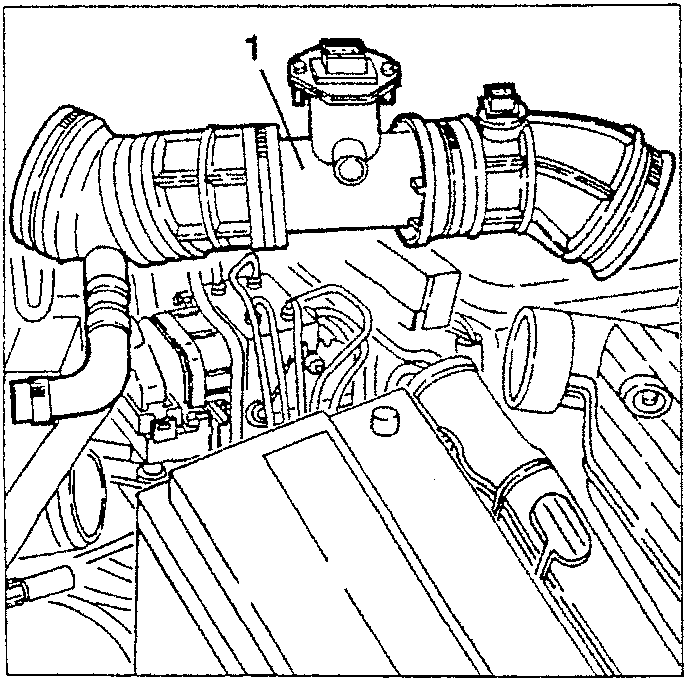

Corrugated sleeve and engine components
  1. Working from the space obtained by removing the corrugated sleeve, slacken the screw illustrated fastening the starter motor to the gearbox.

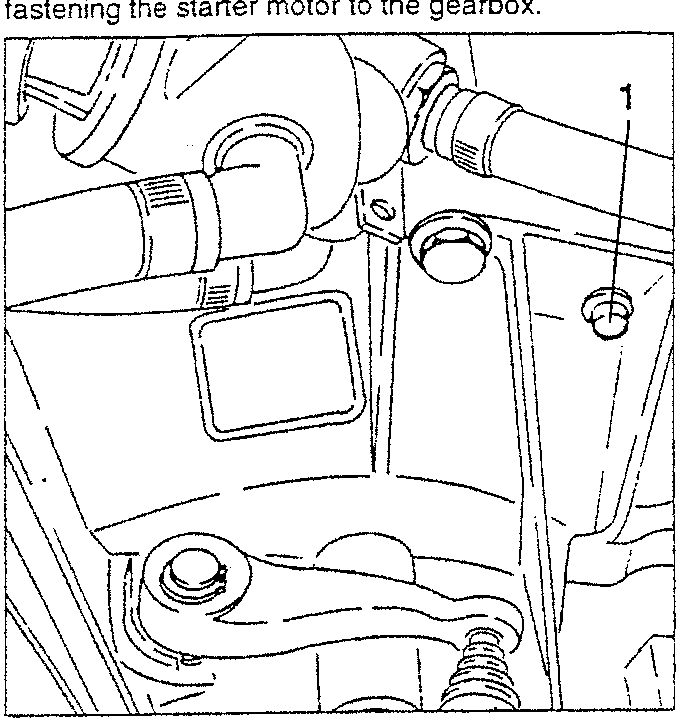

Starter motor and gearbox connection
  1. Raise the car then disconnect the electrical connections from the starter motor.
  2. Slacken the remaining two fastening screws and remove the starter motor.

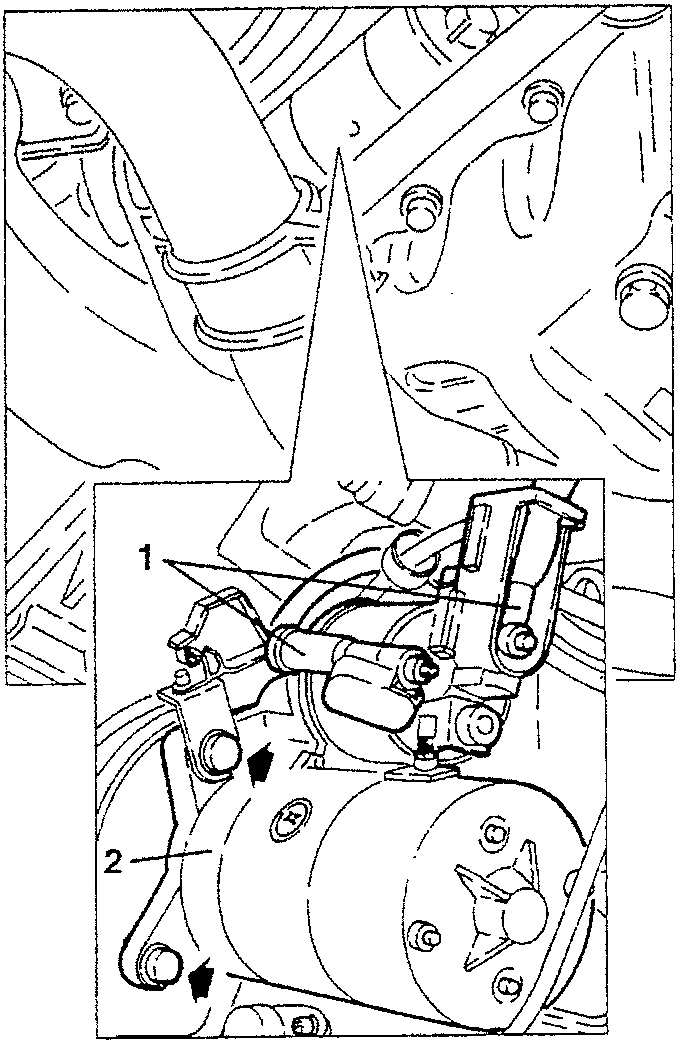

Starter motor removal with screws
