AUTOMATIC CLIMATE CONTROL SYSTEM CONTROL UNIT

REMOVING/REFITTING

  • Disconnect the battery (-) terminal.
  1. Move away the lower part of the dashboard as illustrated (see GROUP 70).
  2. Release the control unit from the fastening catch and withdraw it to gain access to the electrical connections.

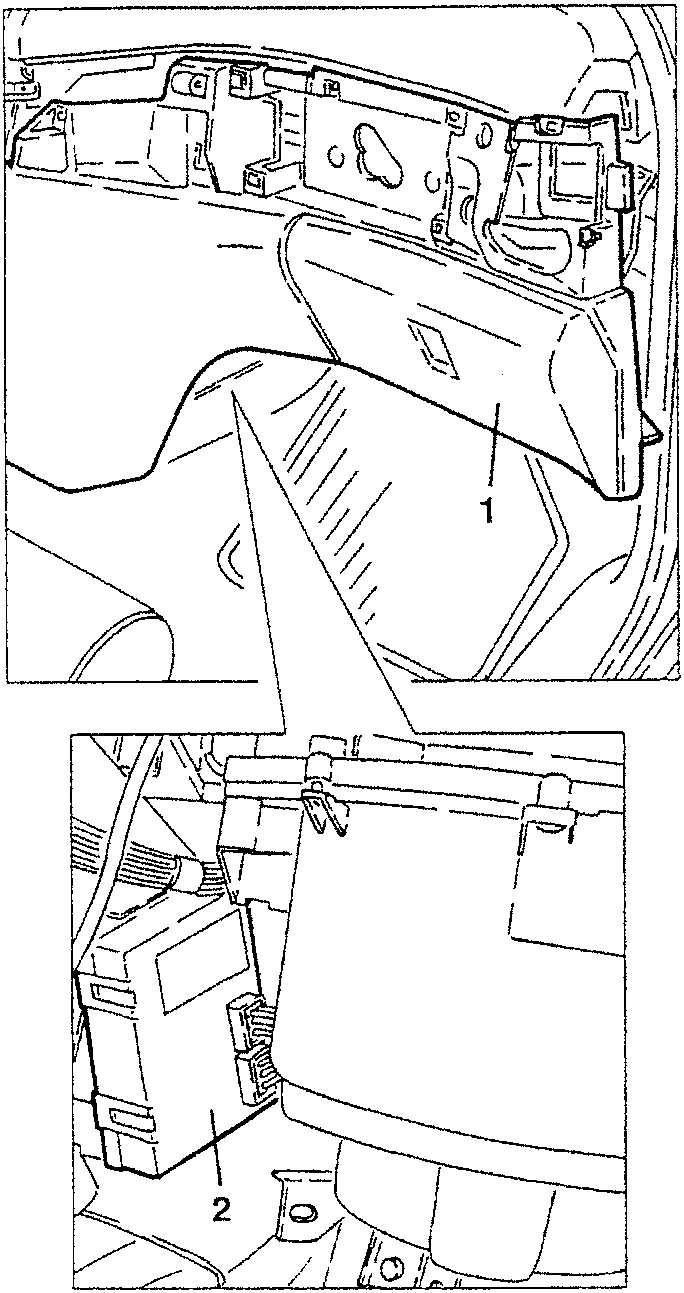

Diagram showing dashboard removal and control unit location.
  1. Part 1: Control unit.
  2. Part 2: Fastening catch.

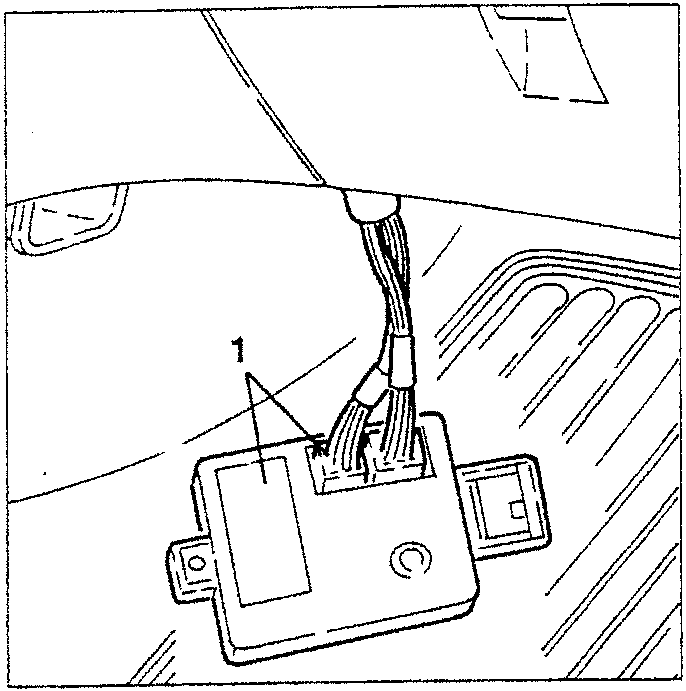

Close-up of the control unit with electrical connections.
  1. Disconnect the electrical connections from the control unit, then remove it.
