THIRD STOP LIGHT

REMOVING/REFITTING

  • Disconnect the battery (-) terminal.

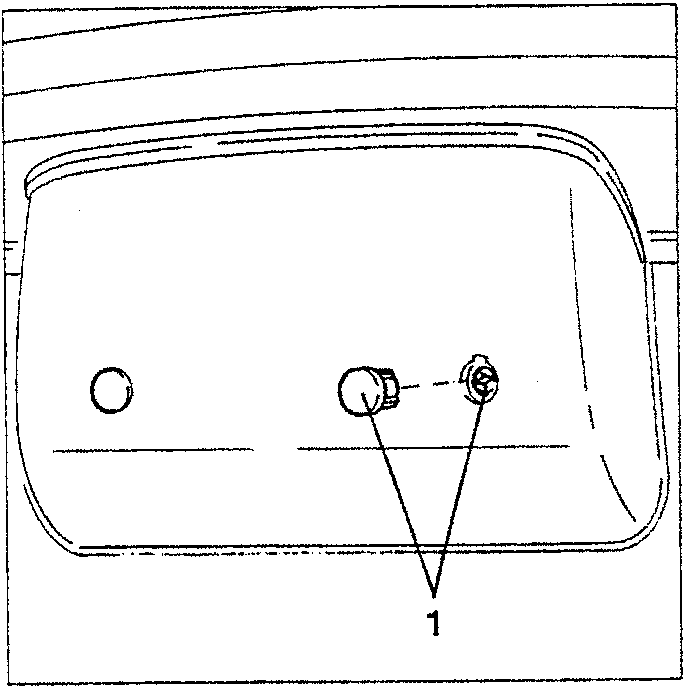

  1. Working with the boot lid open, remove the two plastic caps and slacken the fastening screws below.
Third stop light assembly showing two plastic caps and fastening screws

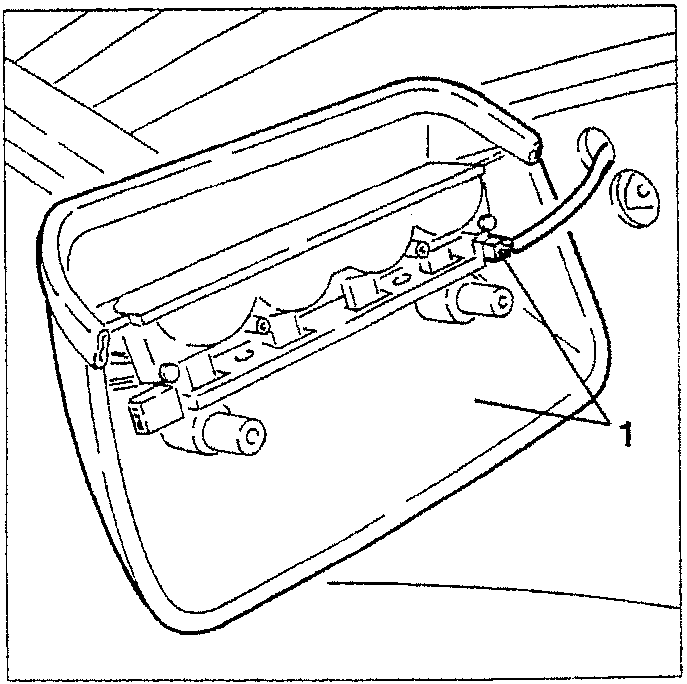

  1. Move back the third stop light just enough to disconnect the electrical connection, then remove it.
Third stop light being moved back to disconnect electrical connection

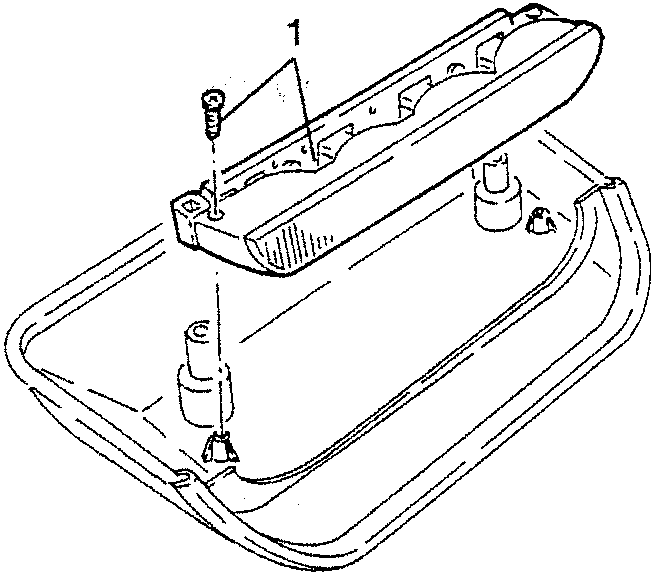

  1. On the bench, if necessary, slacken the two fastening screws and remove the bulb support unit.
Bulb support unit with fastening screws

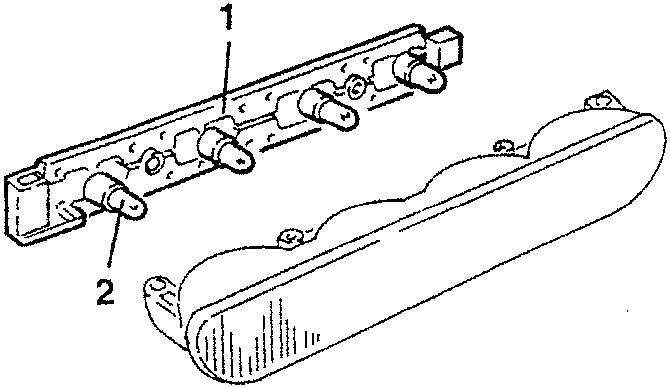

  1. Separate the bulb support base.
  2. If necessary remove any bulbs to be changed pressing and turning them counter-clockwise.
Separated bulb support base and bulb holder
