145 electrical system diagnosisBulb table

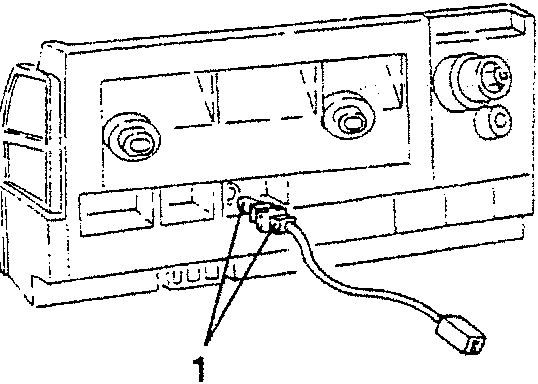

1. Remove the bulb holder complete with wiring and withdraw the ashtray bulb from it.

BULB TABLE

SERVICE	POWER RATING (W)	TTPE
HIGH BEAM	55	D
LOW BEAM	55	D
FRONT SIDE LIGHT	5	A
FRONT DIRECTION INDICATOR	21	B
SIDE REPEATERS	5	A
REAR DIRECTION INDICATORS	21	B
REAR STOP/ SIDE LIGHT	21/5	B
REVERSING LIGHT	21	B
REAR FOG GUARD	21	B
ROOF LIGHTS	10	C
NO. PLATE LIGHT	5	A
FOG LAMPS	55	D
READING SPOT LAMP	5	B
CONTROLS LIGHTING	1.2	A
THIRD STOP LIGHT	5	A

TYPES OF BULBS

A	"All glass" bulbs are snap fastened. To remove them, pull.
B	Bayonet bulbs To remove them from the bulb holder: press the bulb, turn it counter-clockwise, then remove it.
C	Cylindrical bulbs To remove them, release from the side contacts.
D	Halogen bulbs To remove the bulb, release the fastening clip of the bulb from its housing.

CAUTION: When changing a bulb always replace it with one of the same type.
