Services control unit

SERVICES CONTROL UNIT

REMOVING/REFITTING

• Disconnect the battery (-) terminal.
• Remove the climate control unit controls module (see GROUP 50).

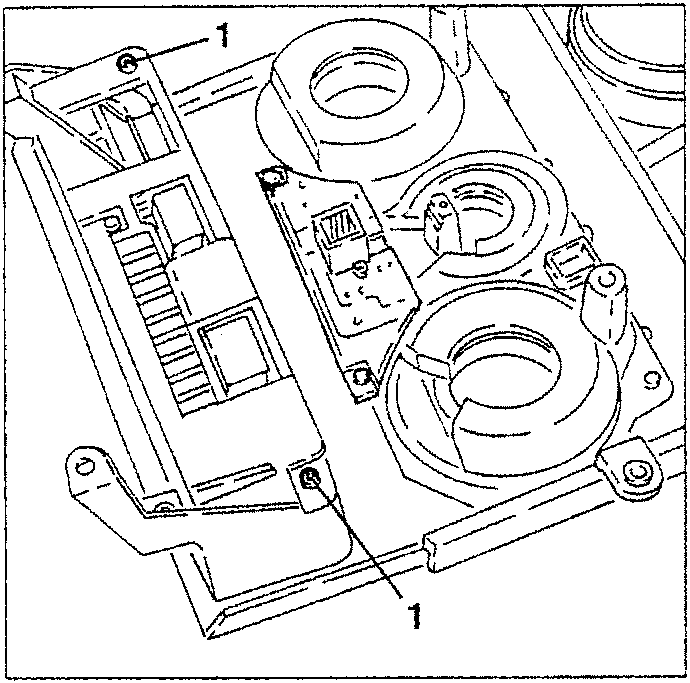

1. On the bench, slacken the two screws fastening the services control unit from the climate control unit controls module.

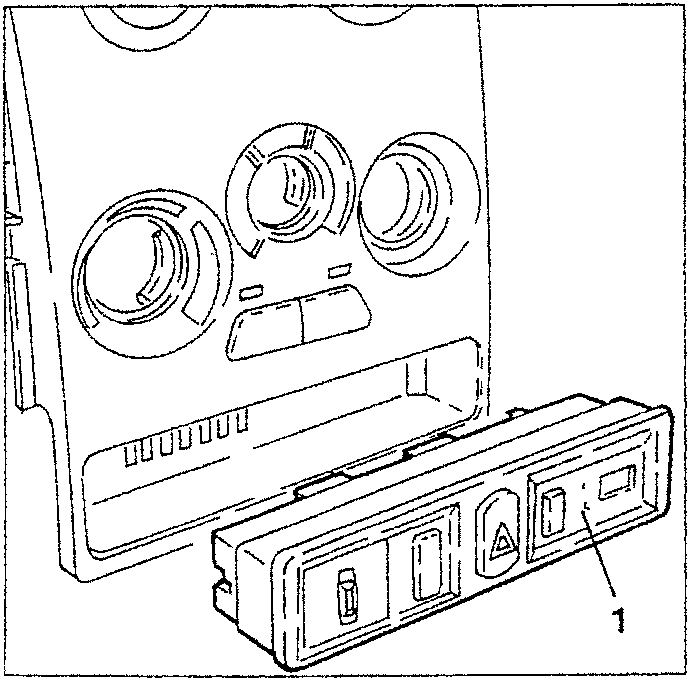

1. Remove the services controls unit from the climate control unit controls module.

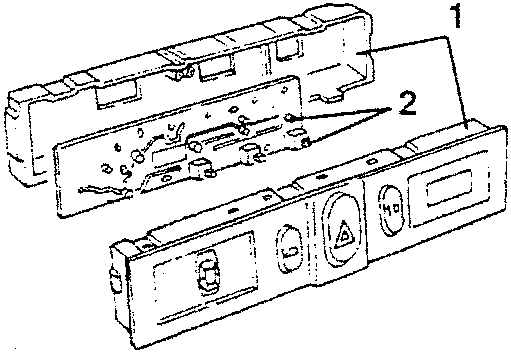

1. If necessary, release the catches and open the services control unit.
2. Replace the leds and switches on the board.

WING MIRROR ADJUSTMENT DOUBLE SWITCH

REMOVING/REFITTING

• Disconnect the battery (-) terminal.

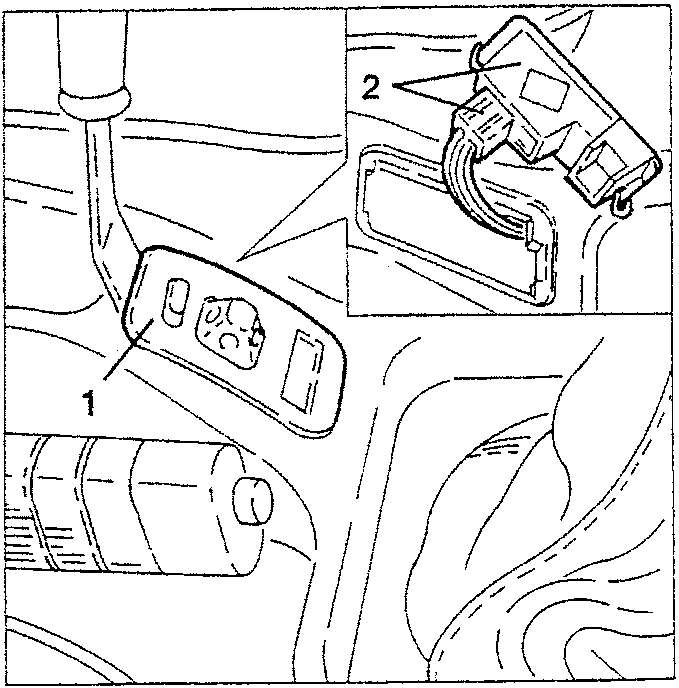

1. Working as illustrated, remove the wing mirror double switch from its housing.
2. Disconnect the electrical connection and remove the wing mirror adjustment double switch.

CLOCK

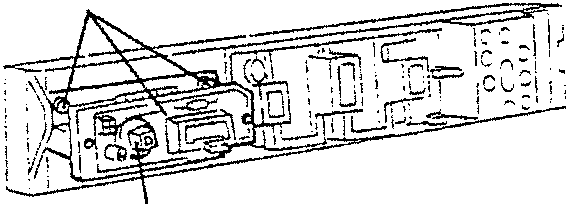

1. Slacken the fastening screw and remove the clock.
2. Withdraw the bulb holder and remove the clock light bulb.
