145 electrical system diagnosisRemoving/refitting

REMOVING/REFITTING

(Specific for T.SPARK with gearbox C513.5 from chassis no. ............)

  • Set the car on a lift.
  • Disconnect the battery (-) terminal.
  • Raise the car and remove the right front wheel and mud flap.

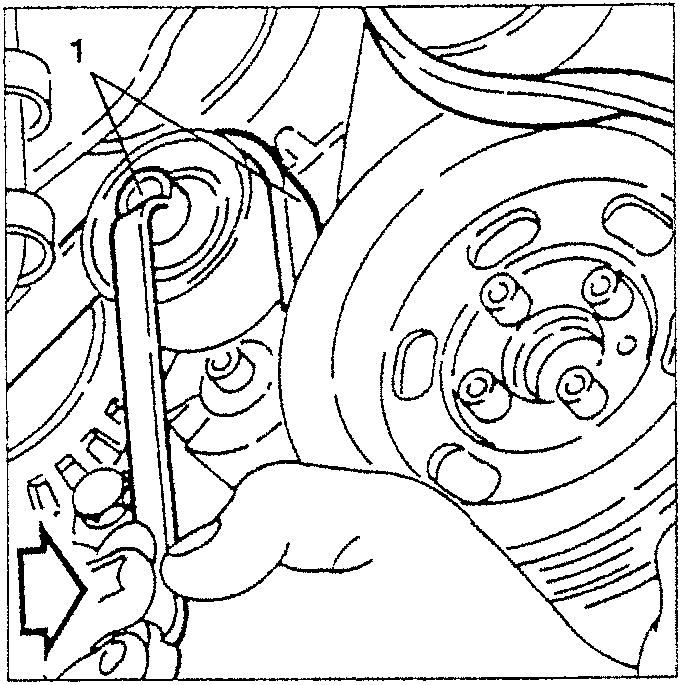

  1. Working as illustrated on the pulley guide, slacken the tension of the auxiliary components drive belt and remove it.
Illustration showing a hand using a tool to slacken a belt tensioner near a wheel hub.
  • Remove the right axle shaft (see GROUP 27).

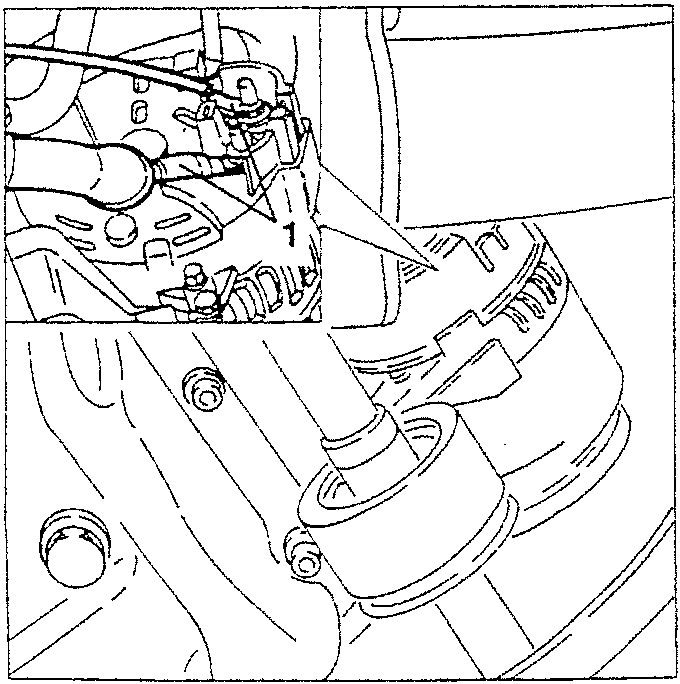

  1. Disconnect the electrical connections from the alternator.
Illustration showing hands disconnecting electrical connectors from an alternator mounted on an engine.

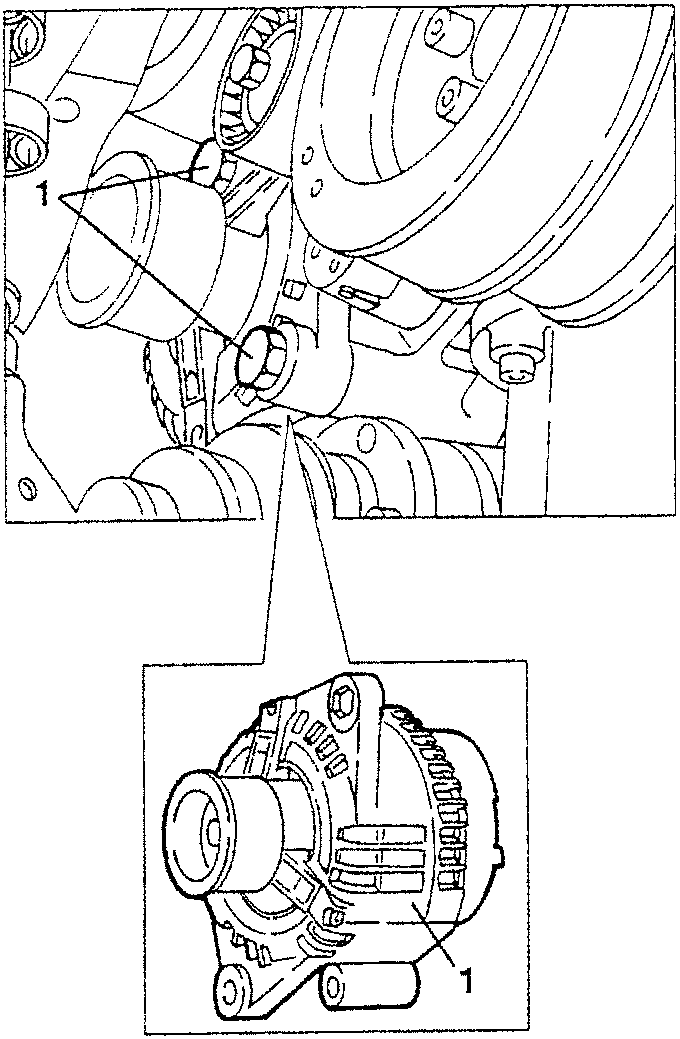

  1. Slacken the two fastening bolts and remove the alternator withdrawing it from under the car.
Illustration showing the alternator being removed from under the car, with a close-up inset of the alternator unit.
