145 electrical system diagnosisBattery · page 2 of 2

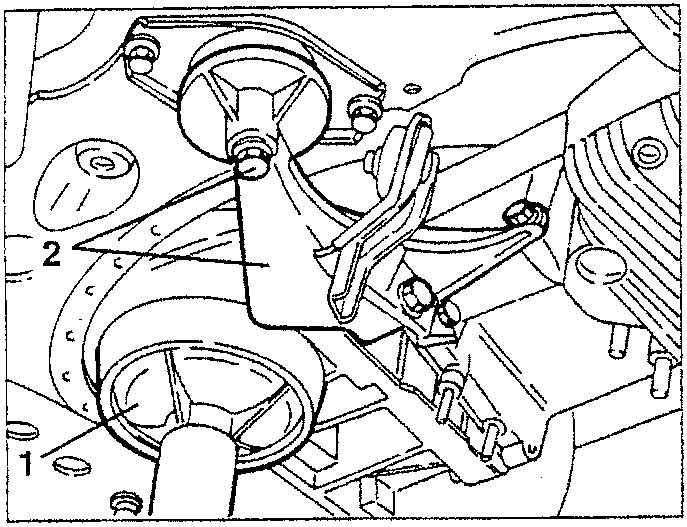

  1. Set a hydraulic jack under the gearbox as illustrated.
  2. Slacken the fastening screws and remove the rear power unit support.
Illustration showing a hydraulic jack set under the gearbox, with labeled parts 1 and 2

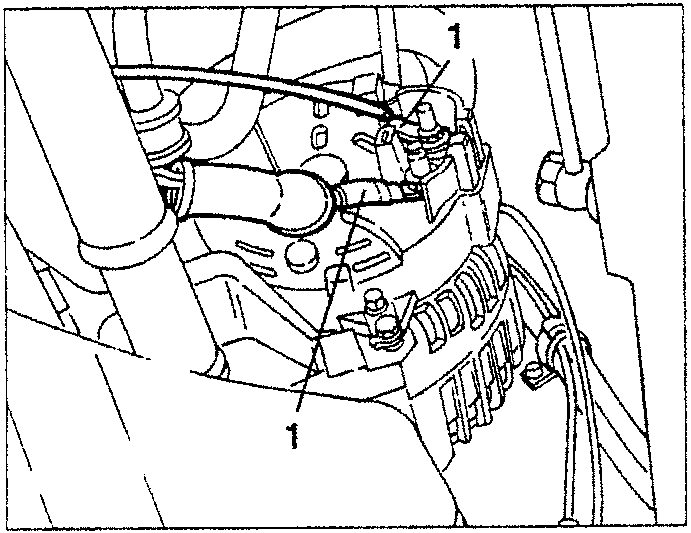

  1. Disconnect the electrical connections from the alternator.
Illustration showing electrical connections being disconnected from the alternator, with labeled part 1

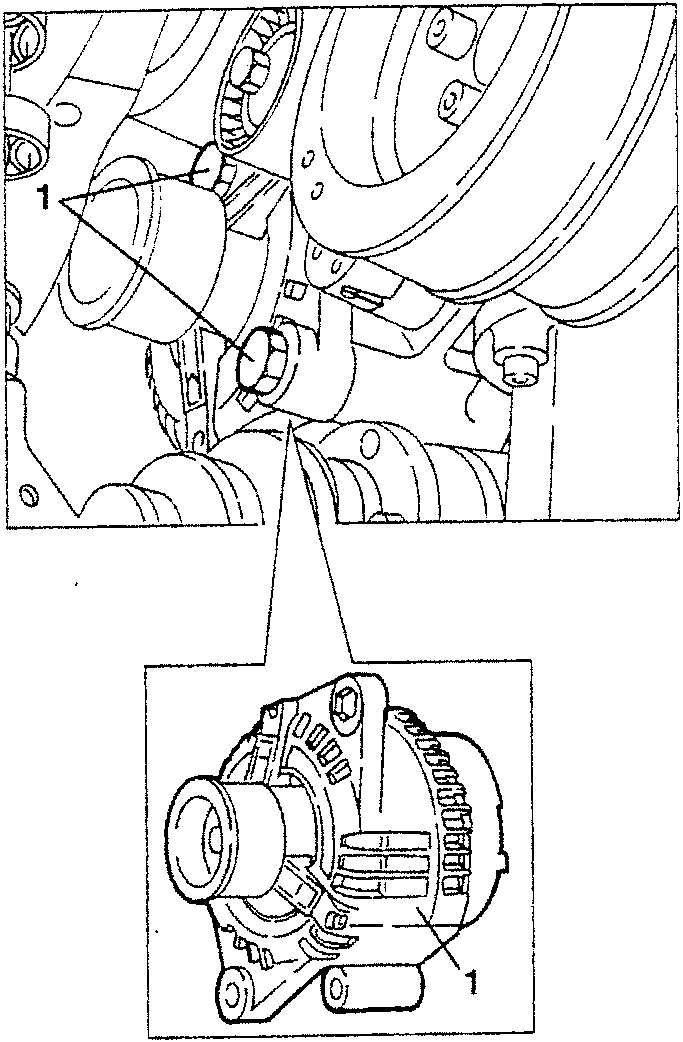

  1. Slacken the two fastening bolts and remove the alternator retrieving it from under the car withdrawing it from the recess obtained by removing the rear power unit support.
Illustration showing the alternator being removed, with labeled part 1
