Replacing ashtray and cigar lighter bulbs

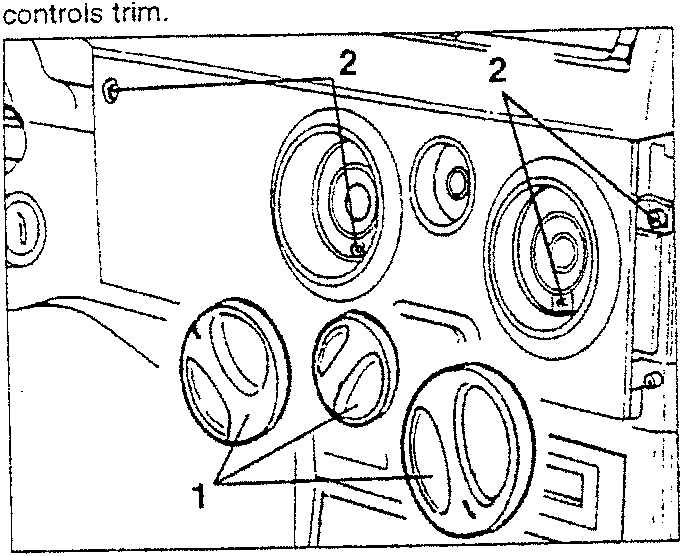

1. Prise and remove the climate control unit knobs.
2. Slacken the four screws fastening the climate unit controls trim.

1. climate control unit knobs
2. screws

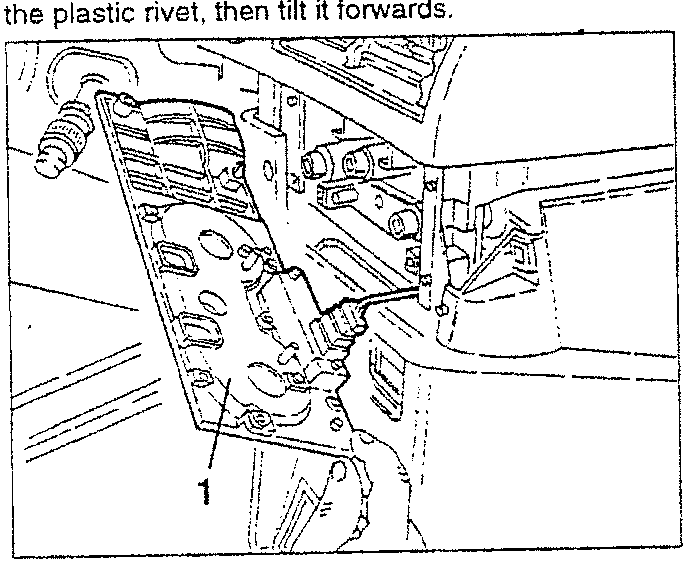

1. Remove the climate control unit controls trim from the plastic rivet, then tilt it forwards.

1. climate control unit controls trim

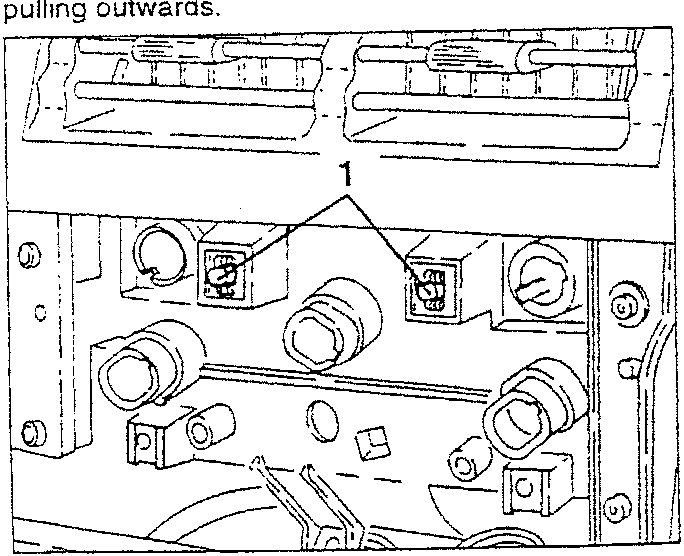

1. Remove the two climate unit controls light bulbs pulling outwards.

1. light bulbs

REPLACING ASHTRAY AND CIGAR LIGHTER BULBS

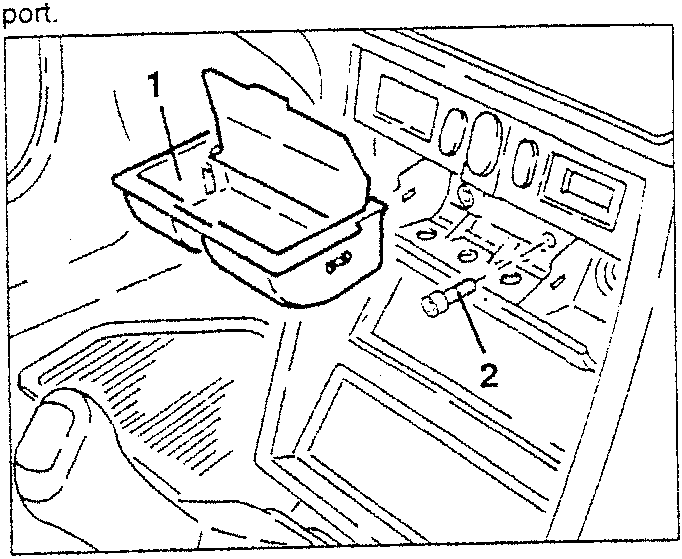

1. Remove the ashtray.
2. Slacken the two screws fastening the ashtray support.

1. ashtray
2. screws

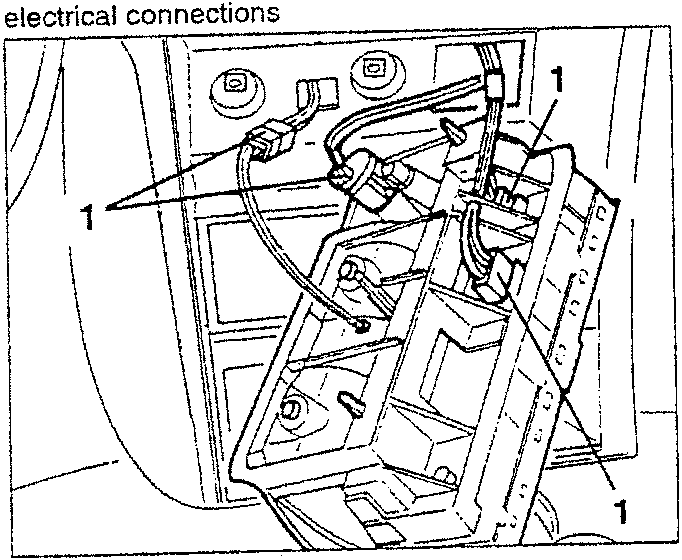

1. Prise the ashtray support complete with services control group and remove it after disconnecting the electrical connections.

1. ashtray support

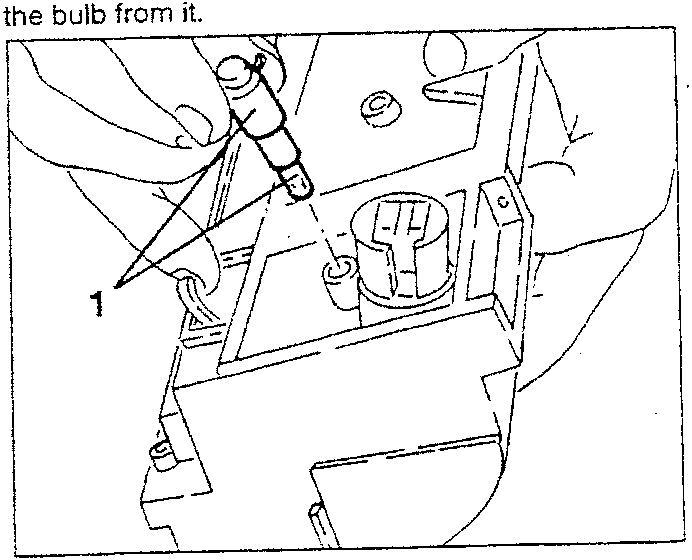

1. On the bench, withdraw the bulb holder and remove the bulb from it.

1. bulb
