145 electrical system diagnosisRemoval/refitting · page 2 of 2

• Set a hydraulic jack under the engine.

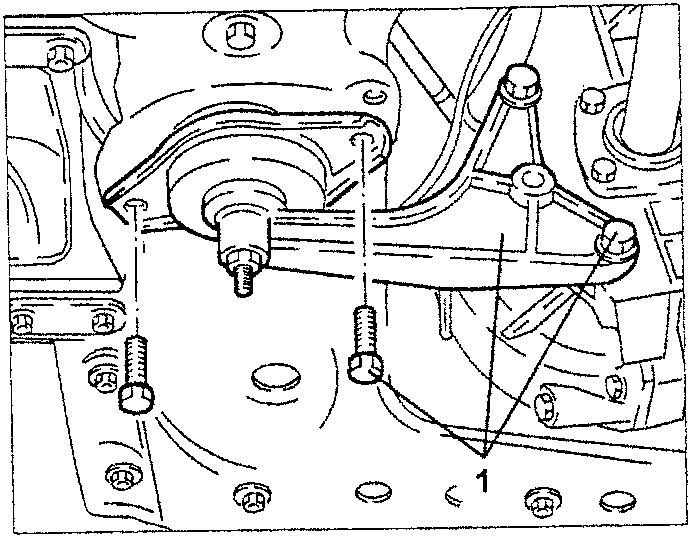

1. Slacken the fastening screws and remove the complete power unit rear support.

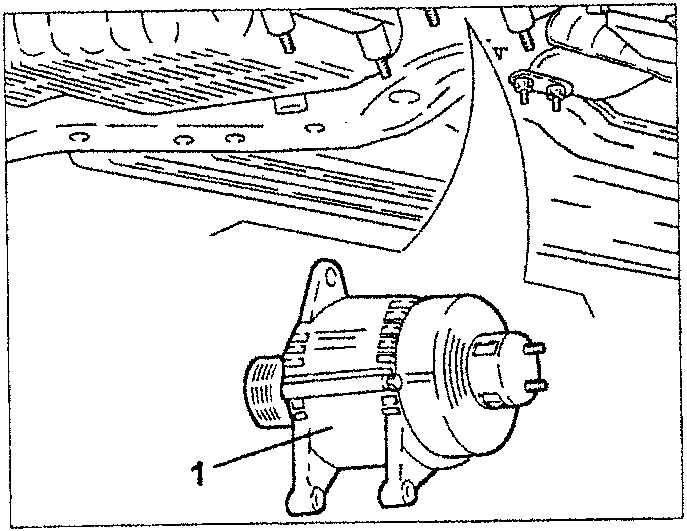

1. Lower the hydraulic jack supporting the engine just enough to withdraw the alternator.

NOTE: To make it easier to remove the alternator lever on the front suspension crossmember to move the engine forward and make more room for removal.
