145 electrical system diagnosisFuse box · page 2 of 2

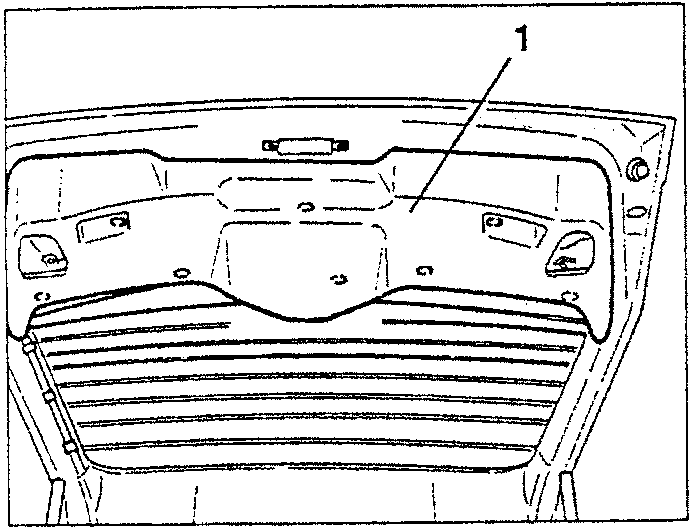

1. Remove the inner trim from the plastic nails positioned as shown in the figure and remove it.

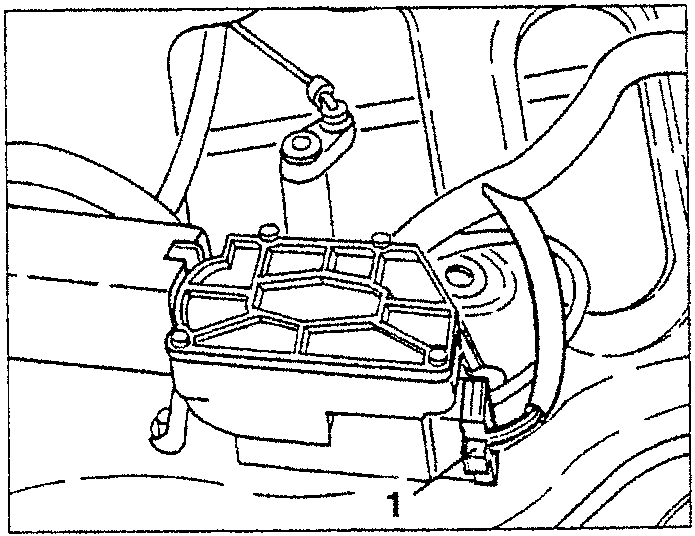

1. Disconnect the electrical connection of the rear-screen wiper.

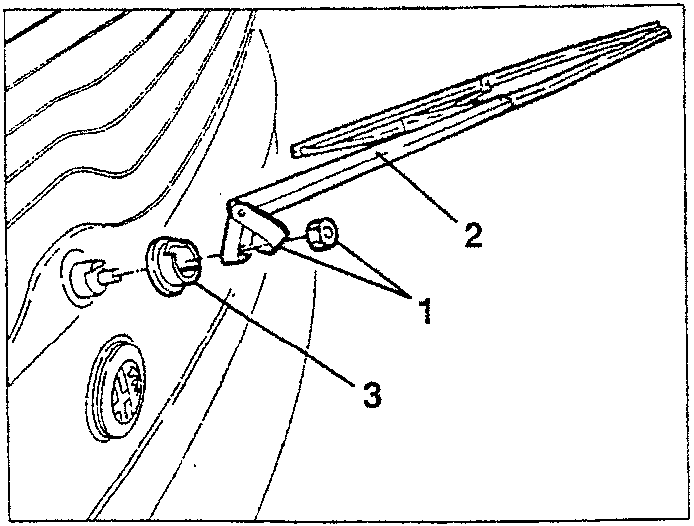

1. Lower the tailgate, raise the protection cap and slacken the nut fastening the rearscreen wiper arm.
   2. Remove the rearscreen wiper arm.
   3. Remove the rearscreen wiper protection rubber.

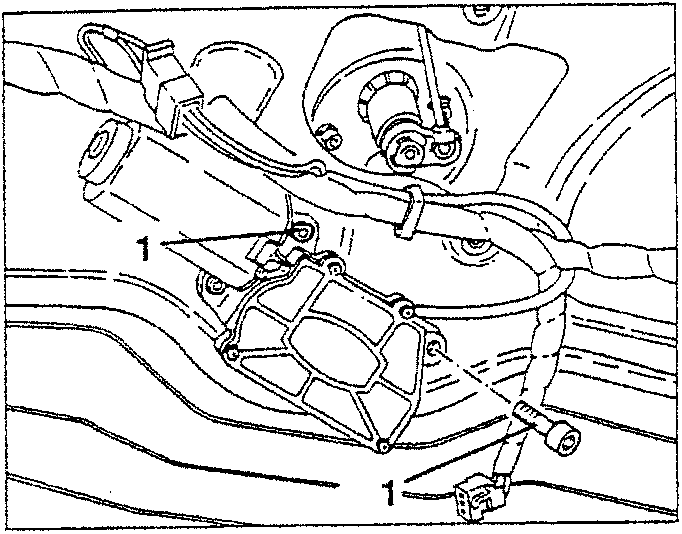

1. Raise the tailgate and slacken the three screws fastening the rearscreen wiper motor.

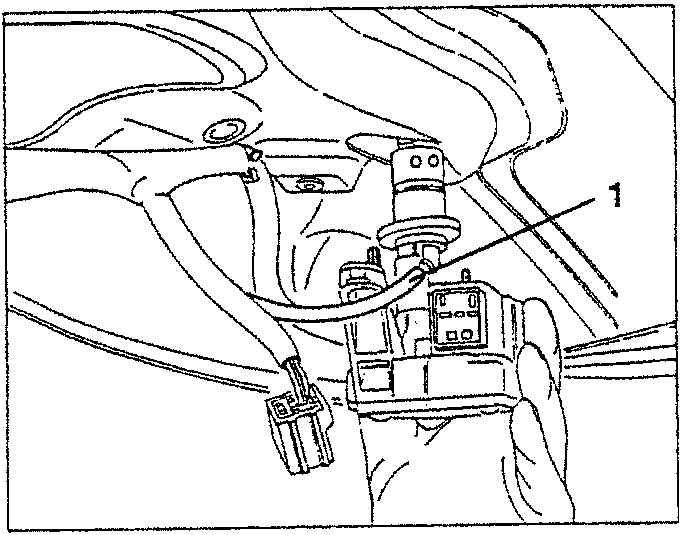

1. Pull out the rearscreen motor just enough to disconnect the cleaning fluid tube.

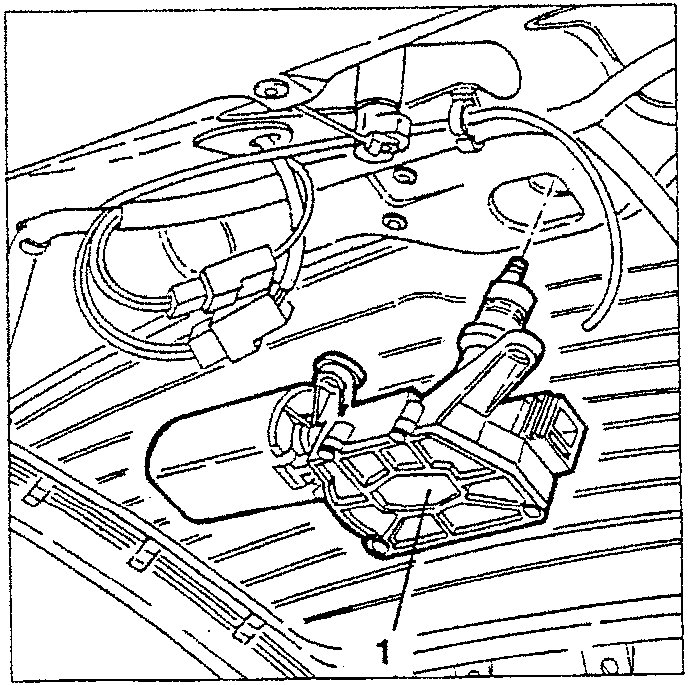

1. Remove the rearscreen motor.
