Freelander Service Procedures
EXTERIOR FITTINGS
REPAIRS
76-2-7

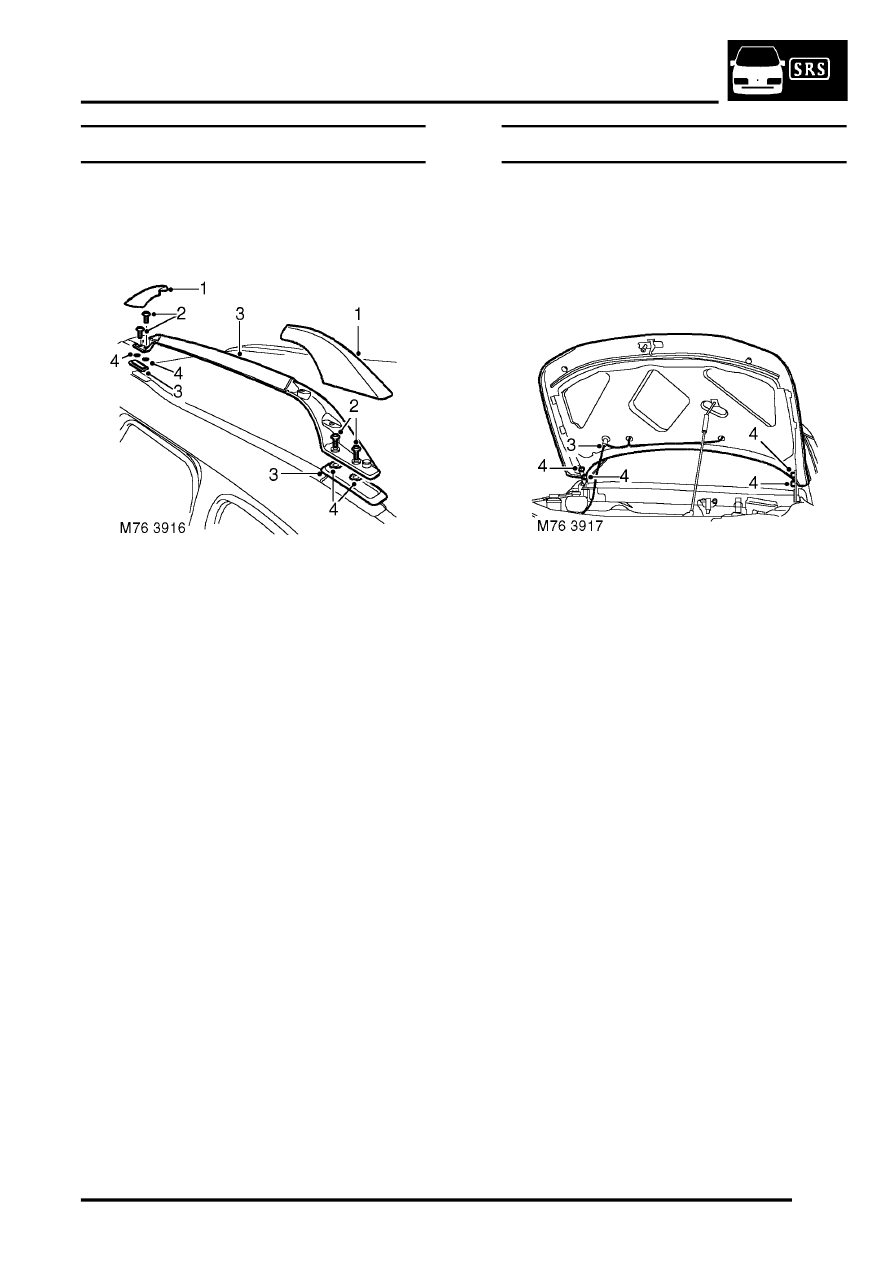

Side rail - integral roof rack - 5 door
$% 76.11.30
Remove
1. Remove finishers from feet of side rail.
2. Remove 4 Torx screws securing side rail to roof
panel.
3. Remove side rail and 2 gaskets.
NOTE: Do not carry out further dismantling if
component is removed for access only.
4. Remove seal from each torque bolt.
5. Remove Torx bolts from side rail.
Refit
1. Fit Torx bolts and seals to replacement side rail.
2. Fit gaskets to side rail.
3. Position side rail and tighten Torx bolts to 22
Nm (16 lbf.ft).
4. Fit finishers to feet of side rail.
Bonnet
$% 76.16.01.99
Remove
1. Support bonnet in open position.
2. Fit protection covers to wings and mark hinge
outline on bonnet if bonnet is to be refitted.
3. Disconnect windscreen washer tube at elbow
joint.
4. With assistance, remove bolts securing hinges
to bonnet and remove bonnet.
Refit
1. With assistance, position bonnet to hinges. Fit
and lightly tighten bolts.
2. Connect windscreen washer tube.
3. Close bonnet. Check that bonnet is aligned to
both front wings and that gaps are equal. If
necessary, adjust bonnet alignment and/or
gaps.
4. Finally tighten hinge bolts to 9 Nm (7 lbf.ft).
