Freelander Service Procedures
EXTERIOR FITTINGS
76-2-4
REPAIRS

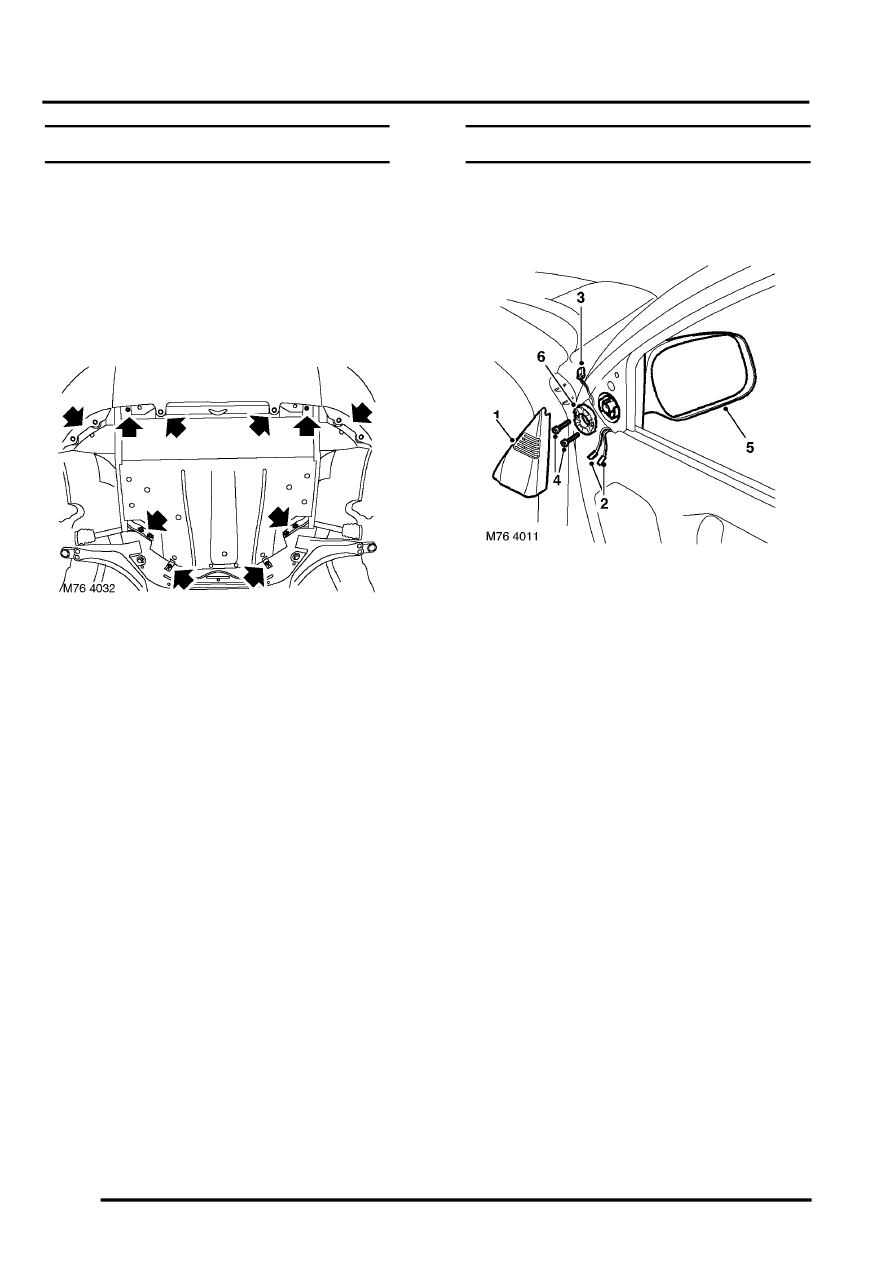

Panel - underbelly
$% 76.10.50
Remove
1. Raise front of vehicle.
WARNING: Do not work on or under a
vehicle supported only by a jack. Always
support the vehicle on safety stands.
2. Remove 2 screws securing bumper valance to
underbelly panel brackets.
3. Remove 4 screws securing wheel arch liners to
bumper valance, if fitted.
4. Remove 2 bolts securing rear of underbelly
panel.
5. Remove 6 bolts securing underbelly panel
frame.
6. Remove underbelly panel.
Refit
1. Position underbelly panel.
2. Fit bolts securing underbelly panel frame and
tighten to 45 Nm (33 lbf.ft).
3. Fit bolts securing rear of underbelly panel and
tighten to 8 Nm (6 lbf.ft).
4. Fit and tighten screws securing wheel arch
liners to bumper valance, if fitted.
5. Fit and tighten screws securing bumper
valance to brackets.
6. Remove stands and lower vehicle.
Mirror - exterior - electric
$% 76.10.57
Remove
1. Remove cheater panel.
2. Up to 04MY:Disconnect 2 Lucars from tweeter
and place cheater panel aside.From 04MY:
Disconnect multiplug from tweeter and position
cheater panel aside.
3. Disconnect multiplug from mirror.
4. Support mirror and remove 2 Torx screws.
From 04MY: Remove additional Torx screw.
5.
6. Remove exterior mirror.
7. Collect clamping plate.
Refit
1. Position mirror, locate clamping plate, fit and
tighten Torx screws to 6 Nm (4.5 lbf.ft).
2. Connect multiplug to mirror.
3. 04MY: Connect multiplug to tweeter.
4. Connect Lucars to tweeter in cheater panel.
5. Fit cheater panel to door.
