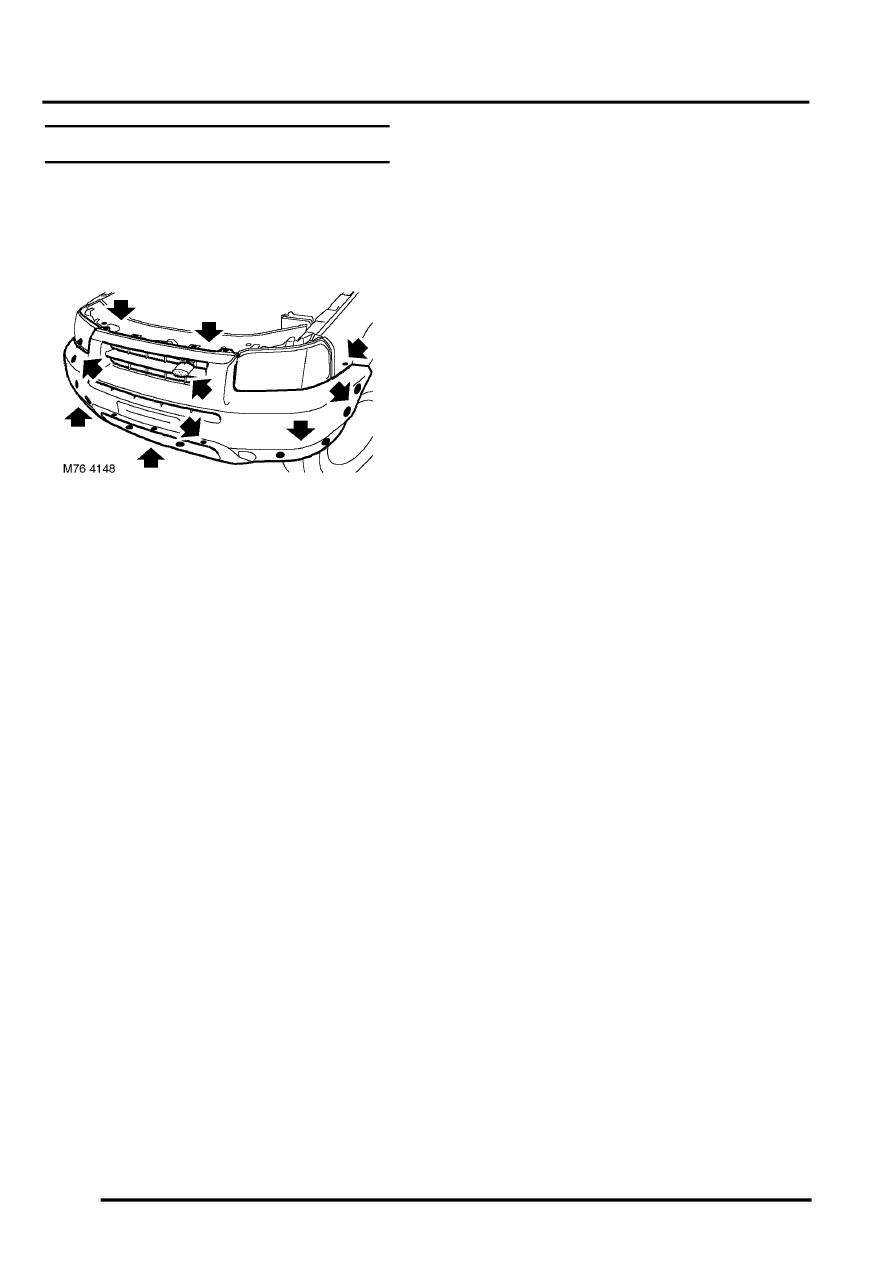

Bumper - assembly - front - up to 04MY
$% 76.22.72
Remove
1. Open bonnet.
2. Remove 8 screws securing wheel arch liners to
bumper, release liners from wheelarch for
access.
3. Remove 2 screws securing bumper valance to
underbelly panel brackets.
4. Remove 3 scrivets securing bumper to
armature.
5. Remove 2 bolts securing rear edge of front
bumper to inner front wing.
6. Remove 4 screws securing bumper to bonnet
locking platform.
7. NAS Models: Release side repeater,
disconnect multiplug and remove repeater.
8. With assistance carefully lift and pull forward
each side of bumper to release bumper side
mounts and clips.
CAUTION: Always protect paintwork when
removing or refitting any body trims or
bumpers.
9. Remove front number plate.
10. Remove badge from grill and discard clips.
Refit
1. Fit badge to grill.
2. Fit number plate.
3. With assistance, fit bumper assembly to body.
4. NAS Models: Feed side repeater harness
through bumper, connect multiplug and fit
repeater.
5. Ensure bumper locating pegs are correctly
aligned.
6. Fit and tighten bolts securing bumper to wings.
7. Fit screws securing bumper to bonnet locking
platform.
8. Fit scrivets to armature.
9. Fit screws securing bumper to underbelly
panel.
10. Fit and align wheelarch liners and tighten
screws.
11. Close bonnet.
