Crankshaft front pulley (page 2 of 3)

4. Insert locking pin 18G 1717 through FIP drive gear and into hole in adapter plate. Locking pin must be a sliding fit. If pin is a tight fit, proceed as follows:

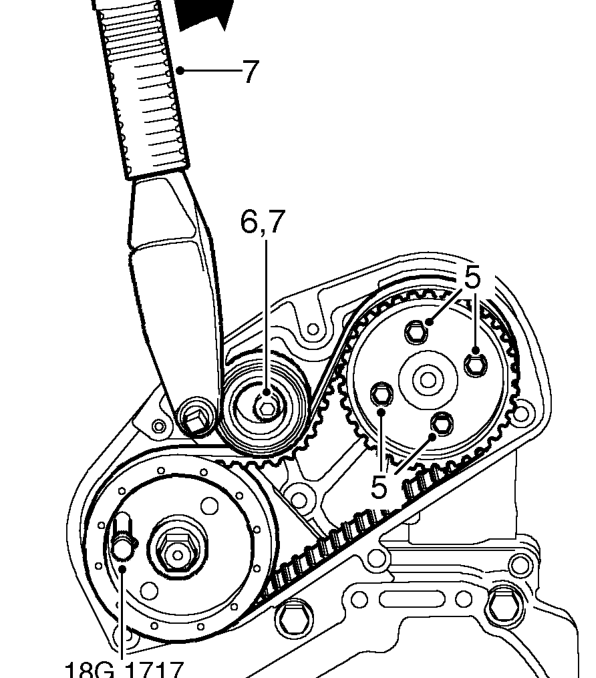

5. Loosen 4 bolts securing FIP timing belt drive gear to hub.
6. Loosen timing belt tensioner Allen bolt.
7. Using a torque wrench fitted to tensioner pulley backplate, apply a clockwise, as viewed from rear of engine, torque loading of 6 Nm to drive belt. Maintain loading and tighten tensioner pulley Allen bolt to 44 Nm.

CAUTION: Do not exceed specified torque figure.

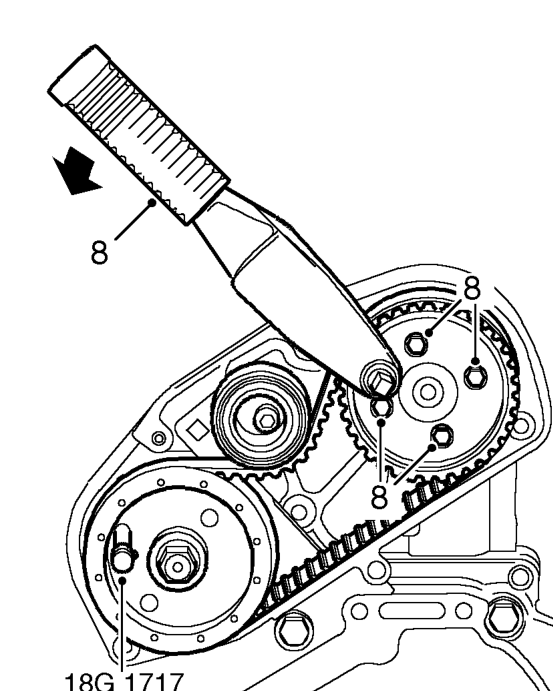

8. Fit torque wrench to square hole in FIP timing belt drive gear as shown and apply an anti-clockwise, as viewed from rear of engine, torque loading of 25 Nm. Maintain loading and tighten 4 bolts securing gear to 25 Nm.
9. Remove FIP drive gear locking pin 18G 1717 and timing pin 18G 1523.
