Cylinder head gasket - models with intercooler (page 2 of 4)

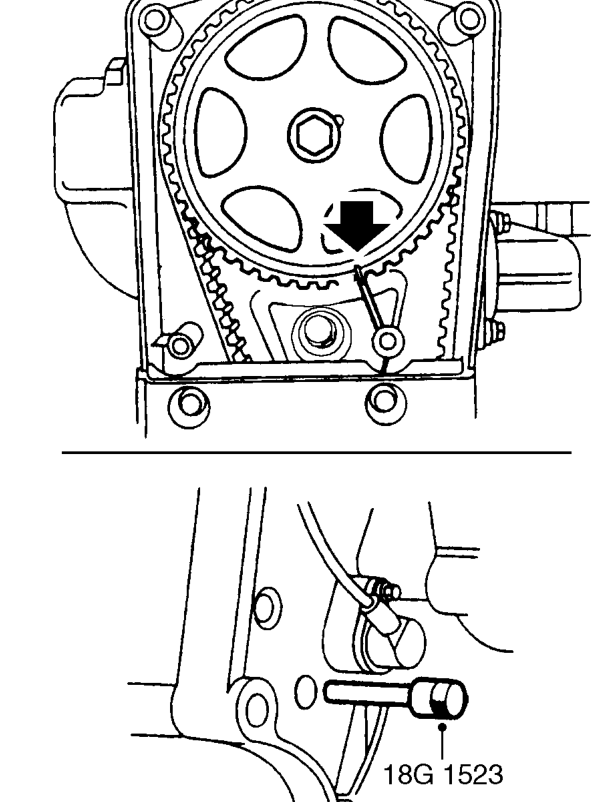

8. Insert timing pin 18G 1523 through hole in gearbox adapter plate, hold pin in contact with flywheel and using assistance, rotate crankshaft clockwise until timing pin enters hole in flywheel.
9. Check that timing marks on camshaft gear and back cover are aligned.

CAUTION: Do not use camshaft gear, gear retaining bolt or timing belt to rotate crankshaft.

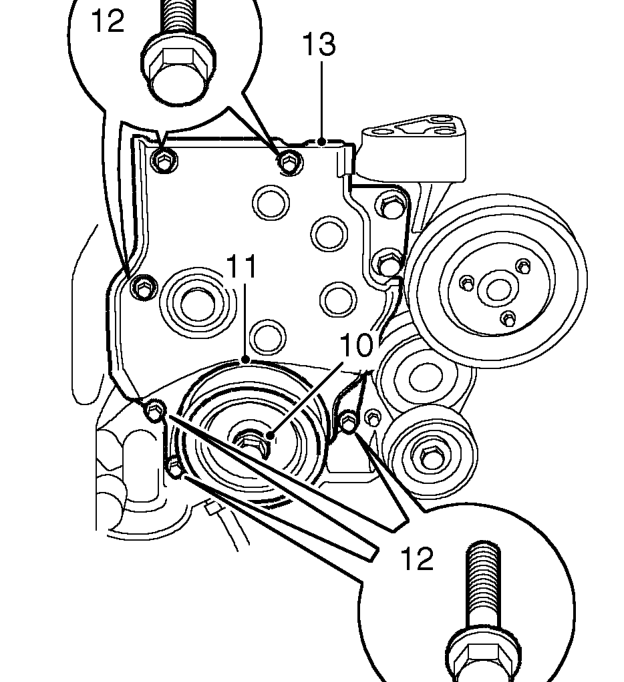

10. Remove bolt securing pulley to crankshaft.
11. Remove crankshaft front pulley.
12. Remove 6 bolts securing timing belt lower cover to rear cover.
13. Remove timing belt lower cover.
