Cylinder head gasket - models with intercooler (page 4 of 4)

Make

Rover

Model

200 Workshop Manual

Year

1995–1999

Section

Repairs

Engine - L SeriesCylinder head gasket - models with intercooler · page 4 of 4

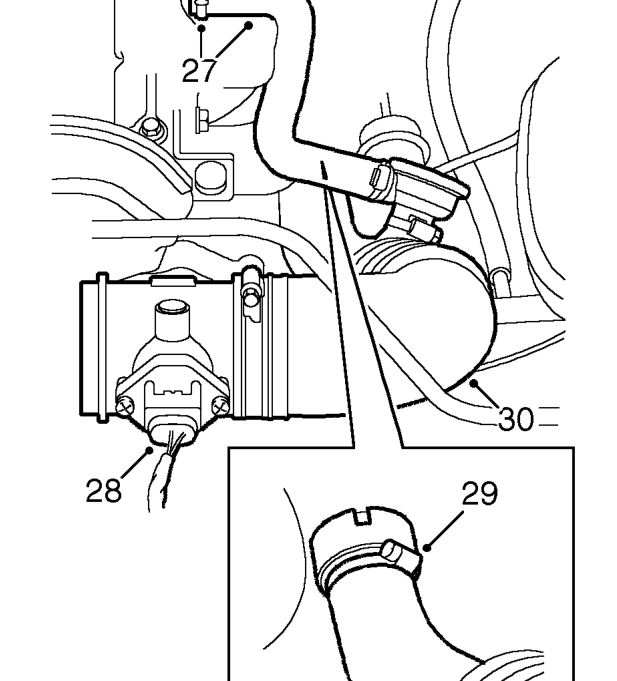

27. Loosen clip and disconnect breather hose from camshaft cover.
28. Disconnect multiplug from MAF sensor.
29. Loosen clip and disconnect air intake pipe from turbocharger.
30. Remove air intake pipe and MAF sensor.
31. Disconnect exhaust front pipe from manifold flange. See MANIFOLD & EXHAUST SYSTEMS, Repairs.

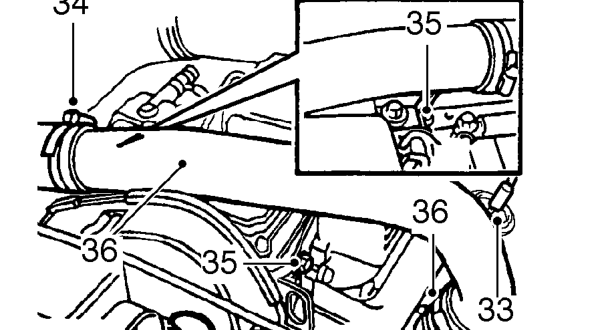

32. Disconnect boost pressure sensing pipe from turbocharger.

33. Disconnect vacuum pipe from EGR valve.
34. Loosen clip and disconnect intercooler top hose from turbocharger pipe.
35. Remove 2 bolts securing turbocharger pipe to cylinder head and engine lifting bracket.

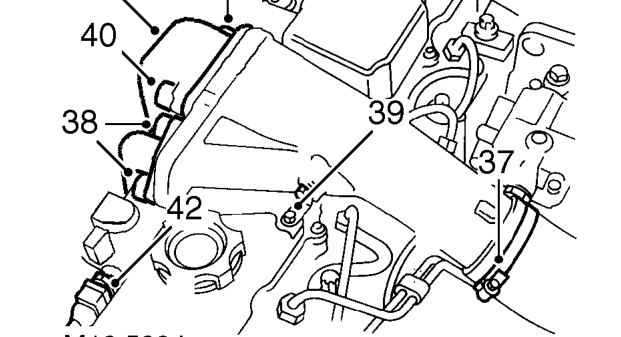

36. Loosen clip securing pipe to turbocharger and remove turbocharger pipe.

37. Loosen clip and disconnect intercooler bottom hose from inlet manifold intake pipe.
38. Remove 2 bolts securing EGR recirculation pipe to inlet manifold intake pipe.
39. Remove bolt securing inlet manifold intake pipe to camshaft cover.
40. Remove 2 bolts securing intake pipe to inlet manifold.
41. Remove inlet manifold intake pipe and discard gasket.
42. Disconnect multiplug from IAT sensor.
