Models with air conditioning fitted (page 2 of 2)

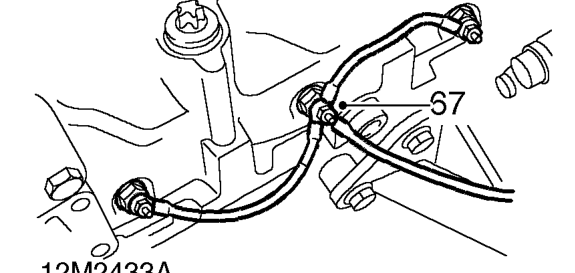

67. Remove nut and disconnect feed lead from glow plug No. 2.

NOTE: 4 glow plugs fitted to later engines.

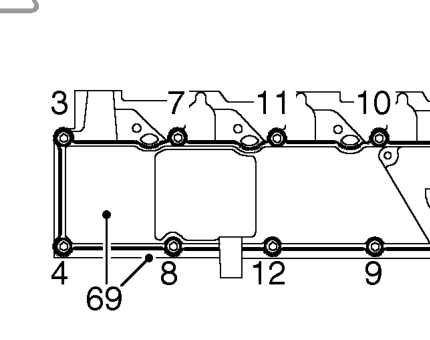

68. Using sequence shown, remove 12 bolts securing camshaft cover to camshaft carrier.
69. Remove camshaft cover, remove and discard gasket.

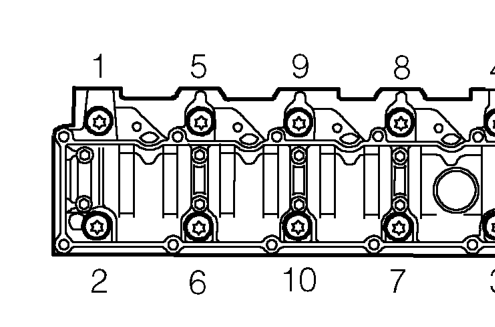

70. Working in the sequence shown, progressively loosen and remove 10 Tx14 Torx cylinder head bolts.

CAUTION: Store cylinder head bolts in fitted order. Do not remove washers from bolts.

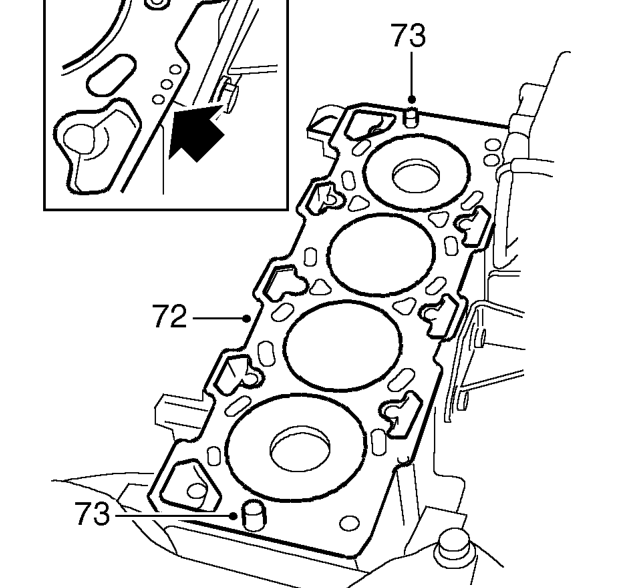

71. Using assistance, remove cylinder head assembly from cylinder block and stand on wooden blocks or stands.

CAUTION: The tips of the injectors and glow plugs protrude below the face of the cylinder head and will be damaged if the cylinder head is stood face down on a work bench. If crankshaft is to be rotated, ensure timing pin 18G 1523 is removed from flywheel prior to rotating crankshaft and is refitted on completion. Do not remove locking pin 18G 1717.

72. Remove cylinder head gasket from cylinder block and discard.

CAUTION: Note the gasket thickness indicator and ensure the same thickness gasket is used when refitting the cylinder head.

73. Remove location dowels from cylinder head.
