2.0 petrol and diesel models (page 2 of 4)

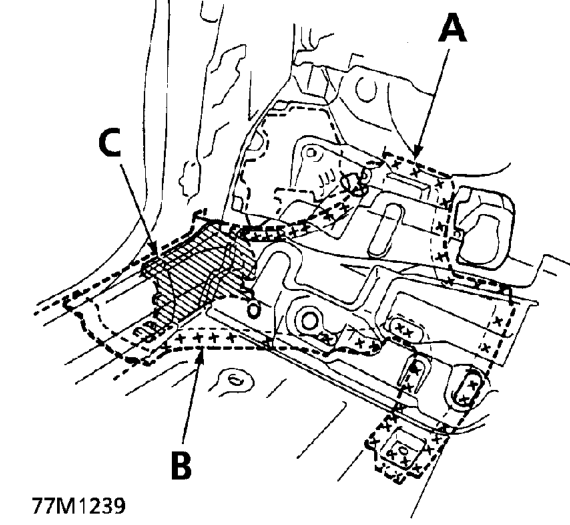

A. Front Side Frame B. Front Side Outrigger C. Inside Sill Extension

• Check the rear support stiffener for position and damage.
• Replace the rear support stiffener if necessary.

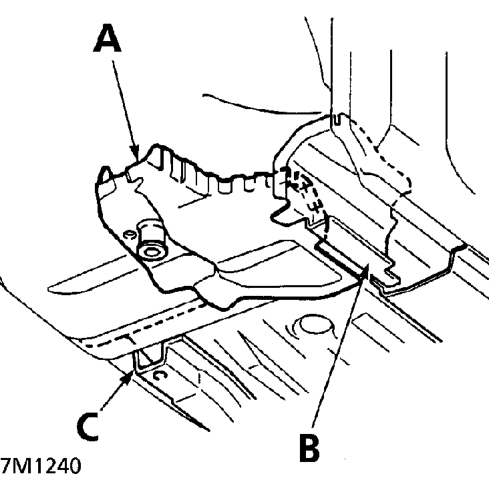

A. Rear Support Stiffener B. Inside Sill Extension C. Floor Frame

6. Mould the related parts.

• Reshape the front inner wing and spring housing lower dashboard-to-front floor joint using a hammer and dolly.
• Fill all drilled holes by MIG or gas welding.

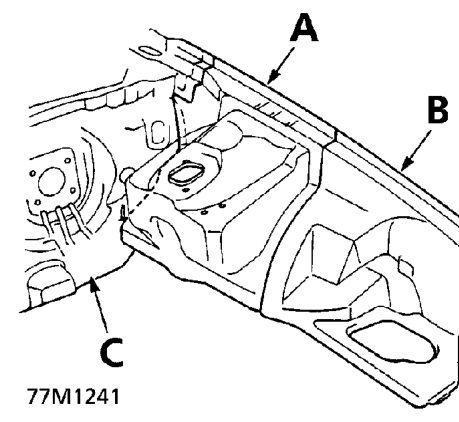

A. Spring Housing B. Front Inner Wing C. Dashboard Lower

7. Remove the inside sill extension and rear support stiffener from the new front side frame.
