Automatic gearboxDismantling · page 2 of 2

44M 0358

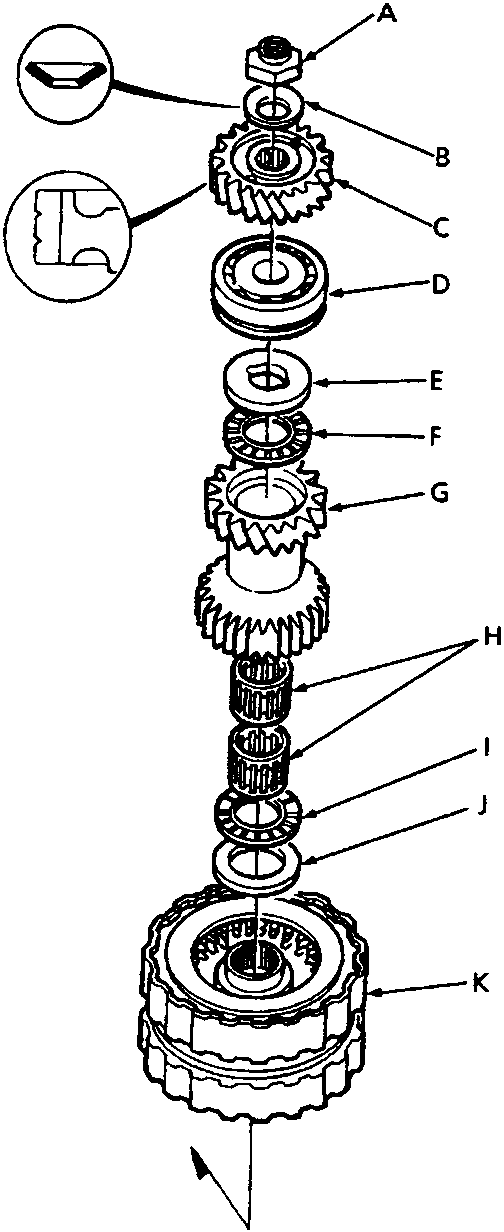

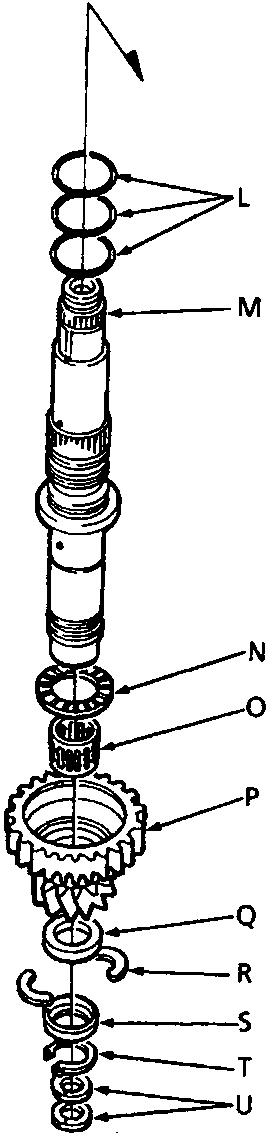

A	Locknut	L	'O' rings
B	Conical spring washer	M	Secondary shaft
C	Idler gear	N	Thrust needle bearing
D	Gearbox housing bearing	O	Needle bearing
E	Thrust washer	P	1st gear
F	Thrust needle bearing	Q	Distance collar – 5 mm
G	2nd gear	R	Split collars – 29 mm
H	Needle bearings	S	Collar retainer
I	Thrust needle bearing	T	Snap ring (circlip)
J	Splined washer	U	Sealing rings – 32 mm
K	1st/2nd clutch
