Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition08 · Automatic gearbox
08 · Transmission

Repair (page 2 of 3)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs
Automatic gearboxRepair · page 2 of 3

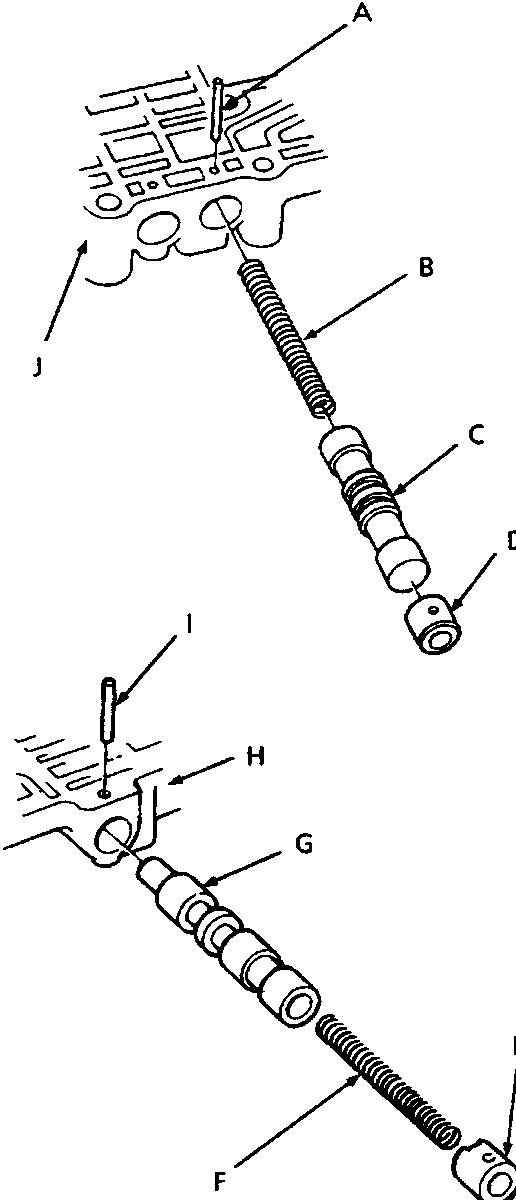

Exploded view diagram of valve body components including valve cap roller, valve spring, valve, valve cap, valve spring cap, and valve body labeled A through J
44M 0335 A Valve cap roller B Valve spring C Valve D Valve cap E Valve spring cap F Valve spring G Valve H Valve body I Valve cap roller J Valve body

Note: Coat all parts with transmission fluid before assembly.

  1. Install the valve, valve spring, and valve cap or valve spring cap in the valve body, and secure with the valve cap roller.

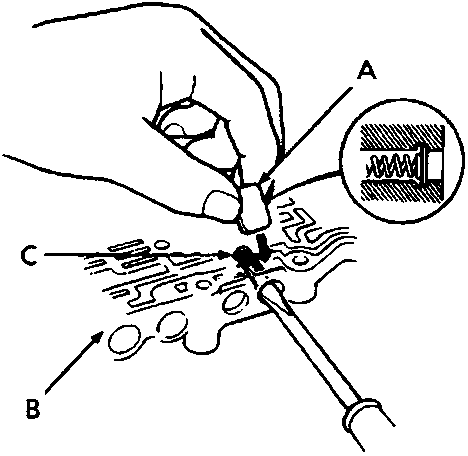

Diagram showing hand installing a valve spring seat into a valve body using a screwdriver, with callouts A, B, and C
44M 0336 A Valve spring seat B Valve body C Valve spring
  1. Set the valve spring in the valve and install them in the valve body. Push the valve spring in with a screwdriver, then install the valve spring seat.
