Rover 800 Workshop Manual (1996-1999)05 · Engine - diesel
05 · Engine

All models (page 2 of 5)

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs
Engine - dieselAll models · page 2 of 5
Diagram

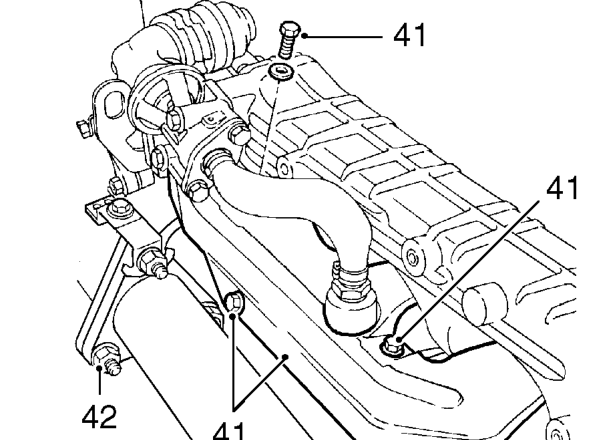

  1. Remove 3 bolts securing exhaust front pipe heat shield and move shield aside.
  2. Remove 3 nuts securing exhaust front pipe to turbocharger outlet elbow. Collect turbocharger heat shield bracket.
Remove 3 nuts securing exhaust front pipe to turbocharger outlet elbow. Collect turbocharg

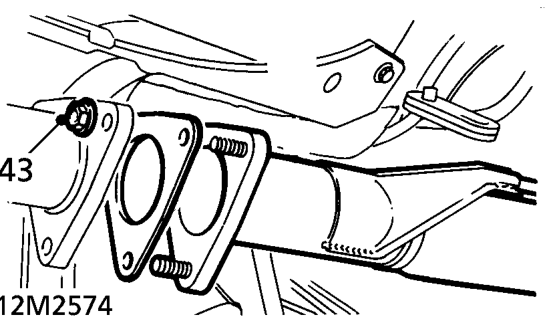

  1. Remove 3 nuts securing exhaust front pipe to intermediate pipe.
Remove 3 nuts securing exhaust front pipe to intermediate pipe.

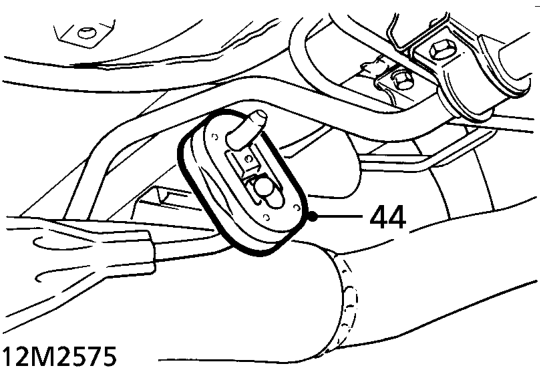

  1. Release front pipe from mounting rubber.
  2. Remove front pipe and discard gaskets.
Remove front pipe and discard gaskets.

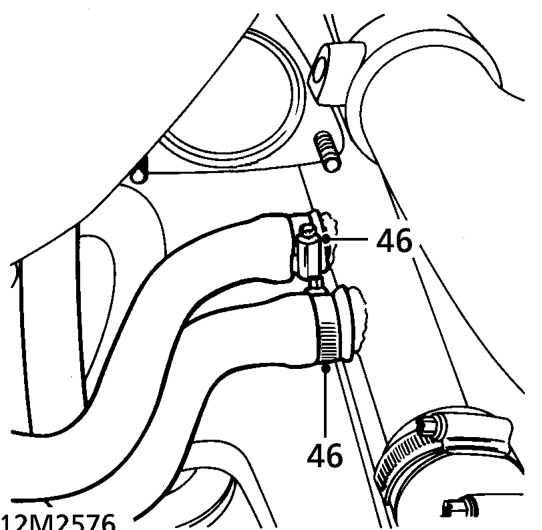

  1. Loosen 2 clips and disconnect heater hoses from coolant pipe on rear of engine.
