Rover 800 Workshop Manual (1996-1999)05 · Engine - diesel
05 · Engine

All models (page 5 of 5)

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs
Engine - dieselAll models · page 5 of 5
Diagram

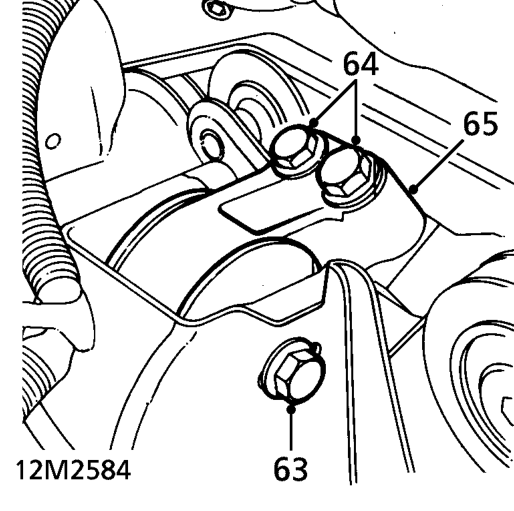

  1. Loosen through bolt securing engine RH mounting to body.
  2. Remove 2 bolts securing RH mounting to engine.
  3. Swivel mounting away from engine and tighten through bolt to hold mounting clear of engine.
Swivel mounting away from engine and tighten through bolt to hold mounting clear of engine

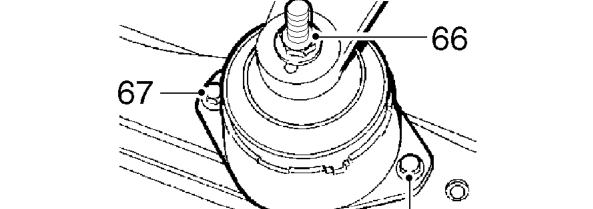

  1. Remove engine front mounting top nut.
  2. Remove 2 bolts securing front mounting to cross member.
Remove 2 bolts securing front mounting to cross member.

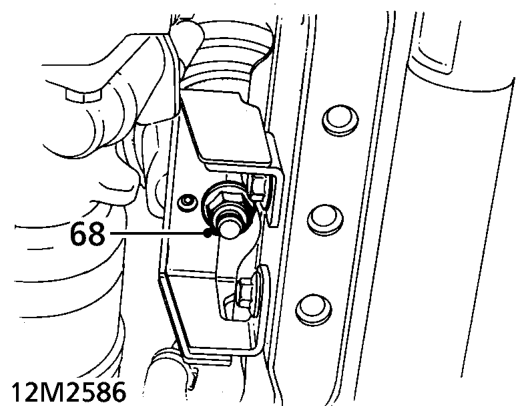

  1. Remove engine rear mounting lower nut.
Remove engine rear mounting lower nut.

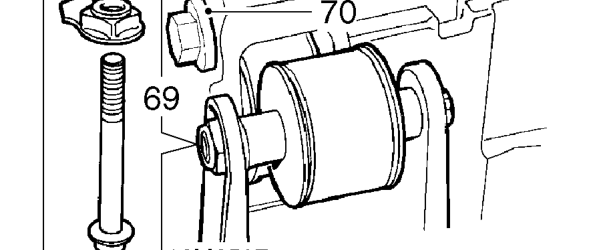

  1. Remove bolt securing engine rear steady bar to engine bracket.
  2. Remove bolt securing engine rear steady bar to body and remove steady bar.
