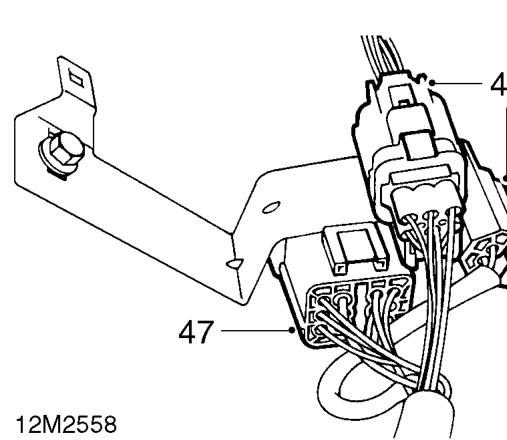

47. Release 3 engine harness multiplugs from bracket on RH inner wing and disconnect multiplugs.

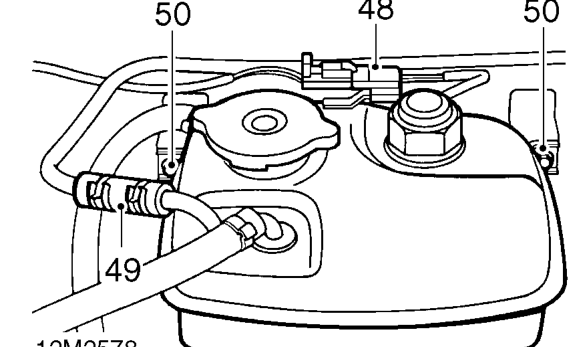

48. Disconnect low coolant level sensor multiplug from expansion tank.
49. Release clip and disconnect bleed hose from expansion tank.
50. Remove 2 bolts securing expansion tank and remove tank.

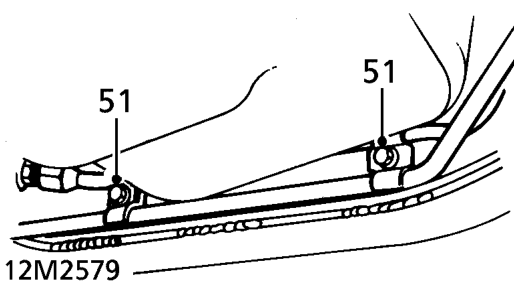

51. Remove 2 bolts securing PAS pipes to centre beam.

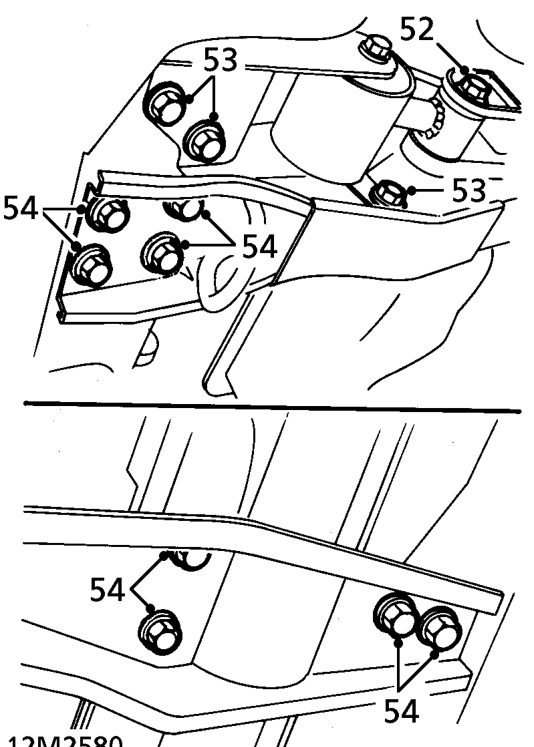

52. Remove bolt securing engine steady bar to steady bar bracket.
53. Remove 2 bolts securing steady bar bracket to front crossmember and bolt securing steady bar bracket to centre beam. Remove steady bar and bracket assembly.
54. Remove 8 bolts securing centre beam to front and rear crossmembers. Remove centre beam.
