Engine - dieselAll models · page 4 of 5
  1. Drain gearbox oil. See MANUAL GEARBOX - ’T750’, Adjustments.
  2. Drain engine oil. See Adjustments.
  3. Remove LH drive shaft. See DRIVE SHAFTS, Repairs.
  4. Remove RH drive shaft. See DRIVE SHAFTS, Repairs.
Remove RH drive shaft. See DRIVE SHAFTS, Repairs.

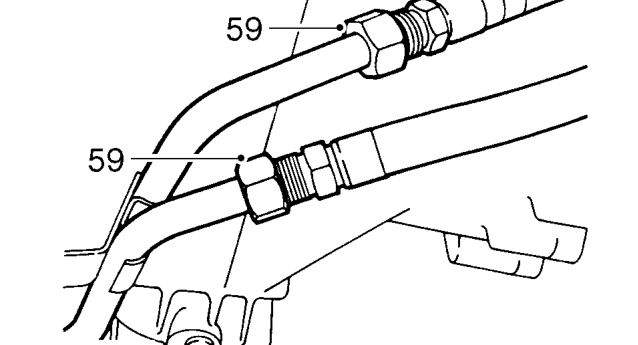

  1. Disconnect 2 oil cooler hose unions. Remove and discard 2 ’O’ rings.

CAUTION: Plug the connections.

Disconnect 2 oil cooler hose unions. Remove and discard 2 ’O’ rings.

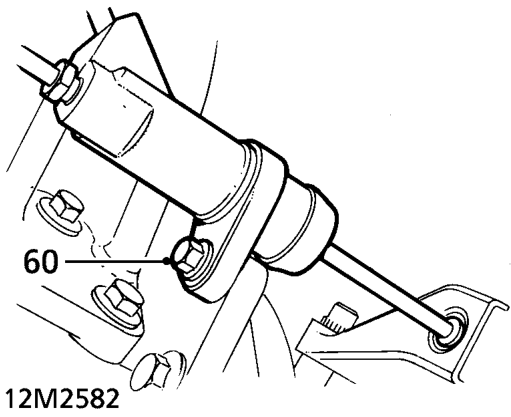

  1. Remove 2 bolts securing clutch slave cylinder and move cylinder aside.
Remove 2 bolts securing clutch slave cylinder and move cylinder aside.

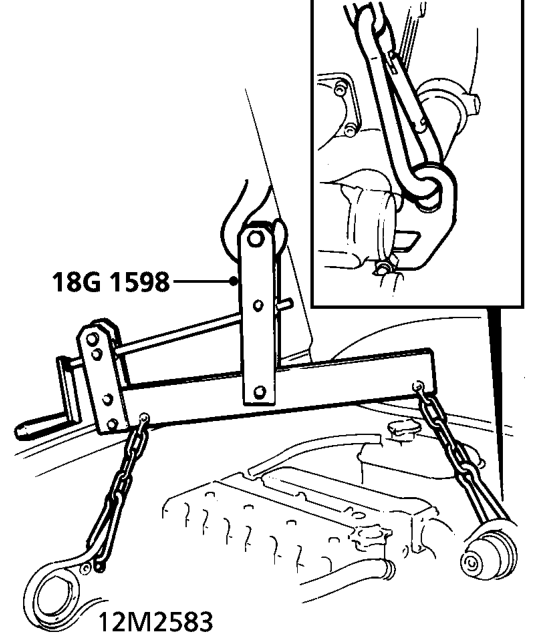

  1. Use a hoist and connect adjustable lifting bracket 18G 1598 to engine.

CAUTION: Care must be taken to ensure lifting bracket is fitted correctly to avoid damage to EGR valve.

  1. Raise hoist to take weight of engine without exerting load on mountings.
