Freelander Service Procedures
EMISSION CONTROL
17-1-4
REPAIRS

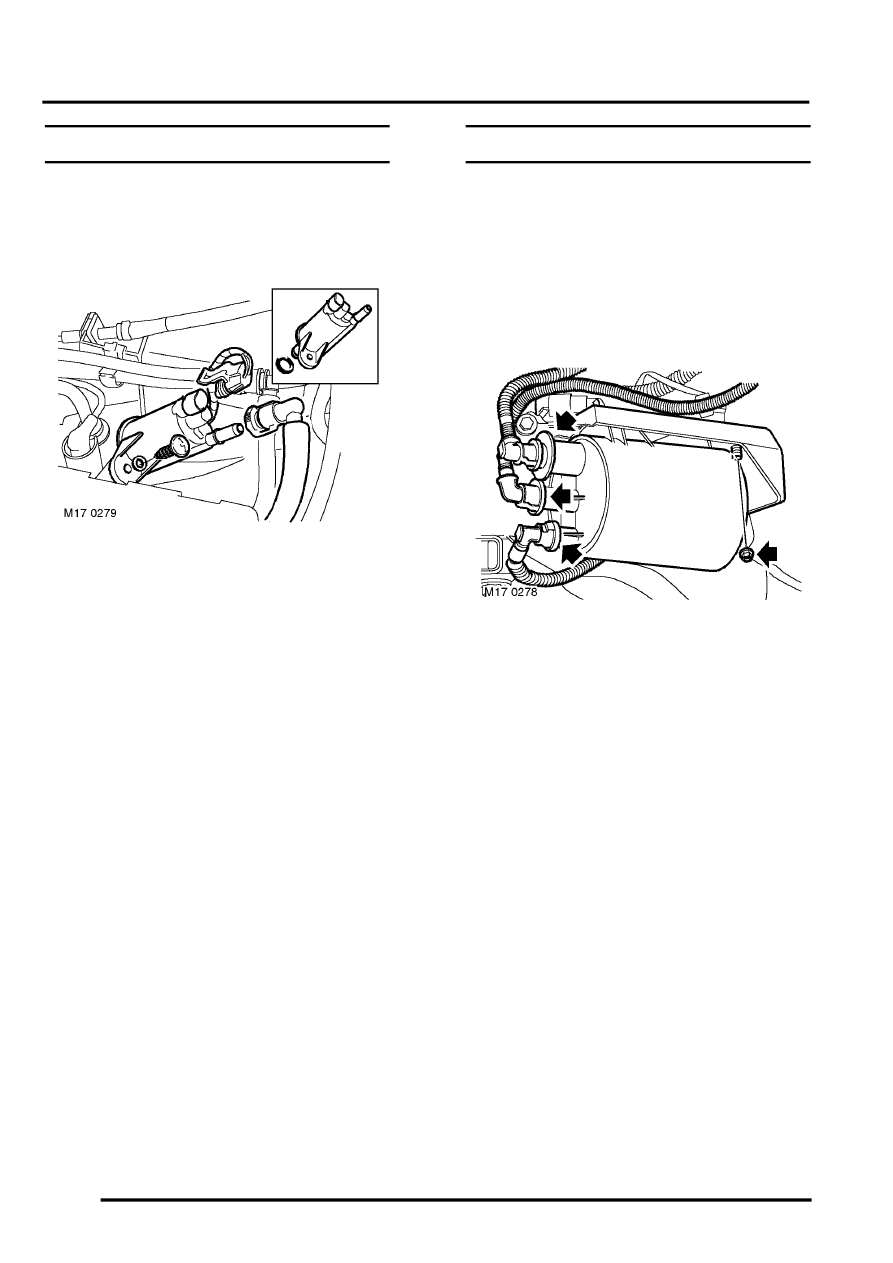

Solenoid - canister purge - KV6
$% 17.15.06
Remove
1. Disconnect battery earth lead.
2. Disconnect multiplug from purge control valve.
3. Disconnect hose from purge control valve.
4. Remove screw and plain washer securing
purge control valve to manifold chamber.
5. Remove purge control valve, remove and
discard seal.
Refit
1. Clean purge control valve and mating face on
manifold chamber.
2. Fit new seal to purge control valve.
3. Position purge control valve to manifold
chamber, secure with plain washer and screw.
4. Connect multiplug and secure hose to purge
control valve.
5. Connect battery earth lead.
Charcoal canister - petrol - Non NAS
$% 17.15.13
Remove
1. Raise rear of vehicle, one side.
WARNING: Do not work on or under a
vehicle supported only by a jack. Always
support the vehicle on safety stands.
2. Remove nut securing charcoal canister to
bracket.
3. Remove charcoal canister from bracket.
4. Disconnect tank, air and purge pipes from
charcoal canister.
CAUTION: Always fit plugs to open
connections to prevent contamination.
5. Remove charcoal canister.
Refit
1. Connect tank, air and purge pipes to charcoal
canister.
2. Fit charcoal canister to bracket and secure with
nut.
3. Lower vehicle.
