EMISSION CONTROL
REPAIRS
17-1-7

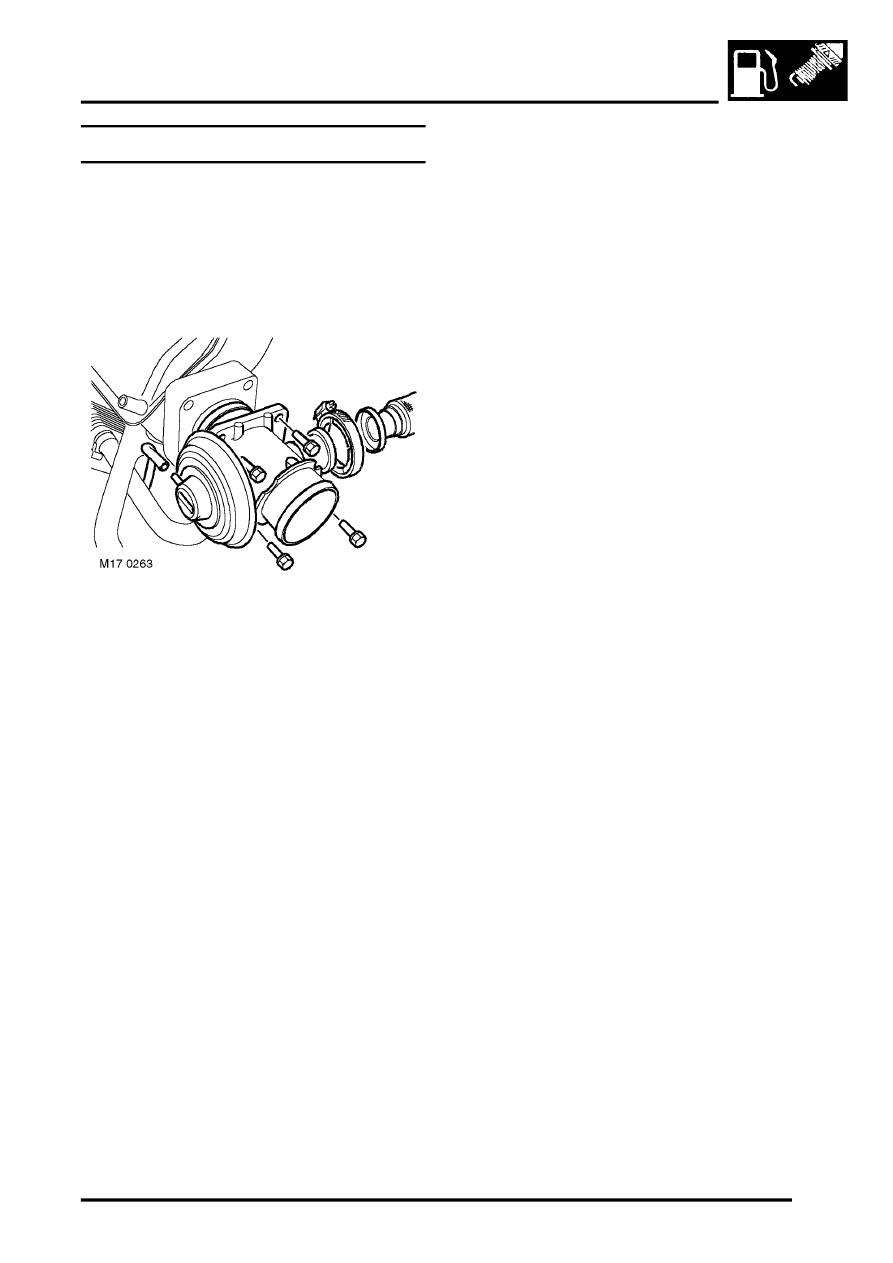

Valve - EGR - Td4
$% 17.45.01
Remove
1. Disconnect battery earth lead.
2. Remove intake ducting assembly.
FUEL DELIVERY SYSTEM - DIESEL,
REPAIRS, Ducting - intake assembly.
3. Disconnect vacuum hose from EGR valve.
4. Loosen screw and remove clamp EGR pipe to
valve.
5. Remove 4 bolts and EGR valve. Discard seal.
Refit
1. Clean EGR valve and mating face on inlet
manifold.
2. Clean EGR pipe flange and EGR valve mating
face.
3. Fit new seal to inlet manifold.
4. Fit EGR valve and tighten bolts evenly to 10 Nm
(7.5 lbf.ft).
5. Fit EGR pipe clamp and tighten screw.
6. Connect vacuum hose to EGR valve.
7. Fit intake ducting assembly.
FUEL DELIVERY SYSTEM - DIESEL,
REPAIRS, Ducting - intake assembly.
8. Connect battery earth lead.
