Engine - K16Engine and automatic gearbox - models without air conditioning · page 8 of 10

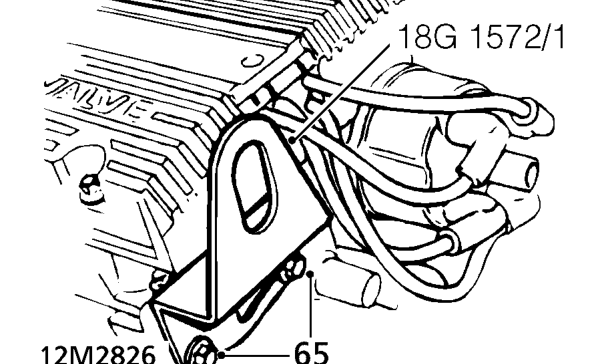

65. Fit lifting bracket tool 18G 1572/1 to cylinder head. Fit bolts and tighten to 9 Nm.

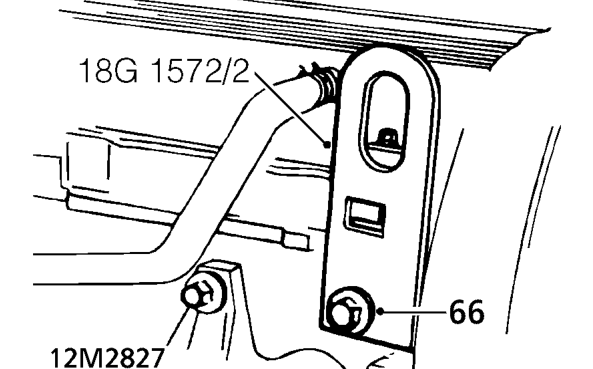

66. Fit lifting bracket tool 18G 1572/2 to cylinder head. Fit bolt and tighten to 9 Nm.

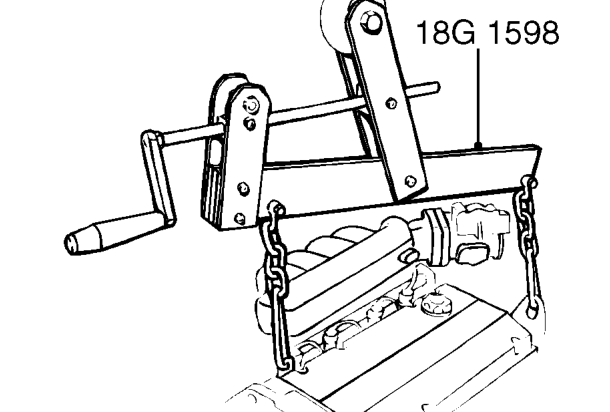

67. Connect adjustable lifting bracket tool 18G 1598 to lifting brackets.
68. Connect a hoist to tool 18G 1598 and raise hoist to take weight of engine without exerting load on engine mounting bolts.

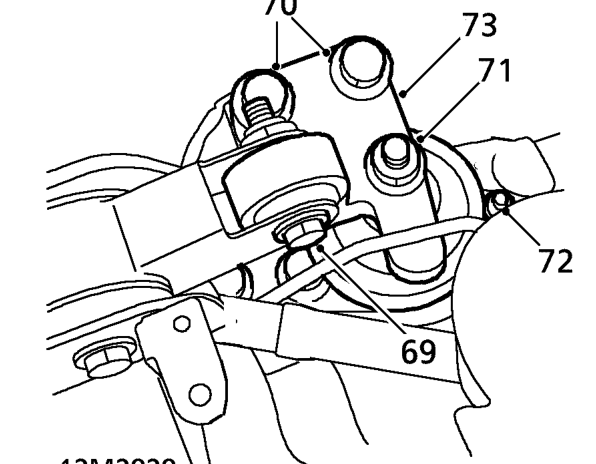

69. Remove bolt securing RH steady bar to engine mounting.
70. Remove 2 bolts securing mounting bracket to engine.
71. Remove nut securing mounting bracket to engine mounting.
72. Loosen 2 nuts securing engine mounting restraint bar to body.
73. Remove RH engine mounting bracket.
