Rover 200 Workshop Manual (1995-1999)06 · Engine - K16
06 · Engine

See ’R65’, Adjustments. (page 9 of 11)

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs
Engine - K16See ’R65’, Adjustments. · page 9 of 11
Diagram

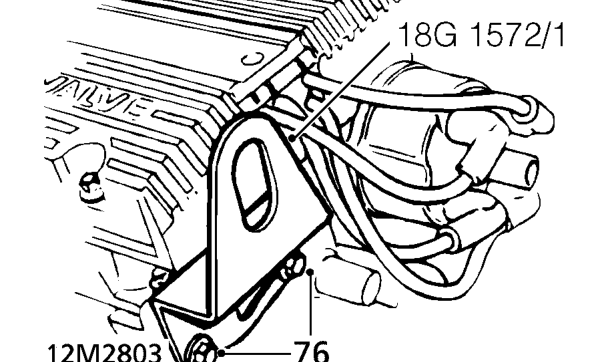

  1. Fit lifting bracket tool 18G 1572/1 to cylinder head. Fit bolts and tighten to 9 Nm.
Fit lifting bracket tool 18G 1572/1 to cylinder head. Fit bolts and tighten to 9 Nm.

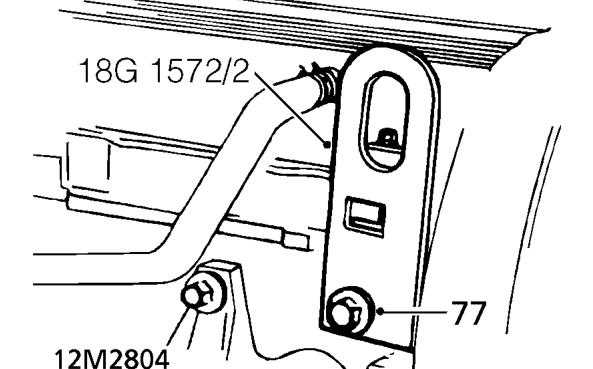

  1. Fit lifting bracket tool 18G 1572/2 to cylinder head. Fit bolt and tighten to 9 Nm.
Fit lifting bracket tool 18G 1572/2 to cylinder head. Fit bolt and tighten to 9 Nm.

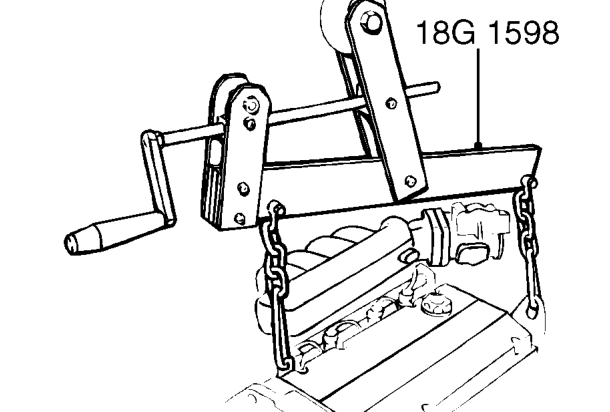

  1. Connect adjustable lifting bracket tool 18G 1598 to lifting brackets.
  2. Connect a hoist to tool 18G 1598 and raise hoist to take weight of engine without exerting load on engine mounting bolts.
Connect a hoist to tool 18G 1598 and raise hoist to take weight of engine without exerting

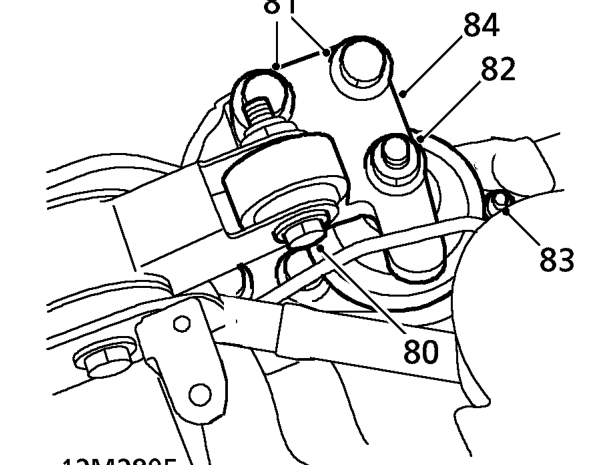

  1. Remove bolt securing RH steady bar to engine mounting.
  2. Remove 2 bolts securing mounting bracket to engine.
  3. Remove nut securing mounting bracket to engine mounting.
  4. Loosen 2 nuts securing engine mounting restraint bar to body.
  5. Remove RH engine mounting bracket.
