See ’R65’, Adjustments. (page 10 of 11)

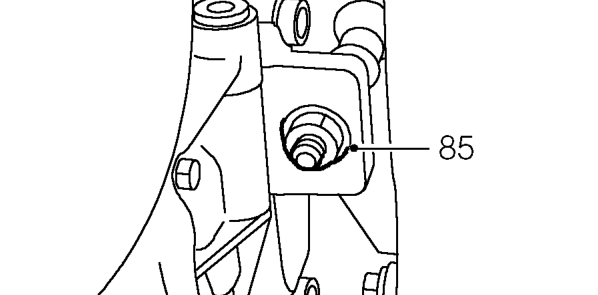

85. Remove and discard nut securing gearbox mounting bracket to engine LH mounting.
86. Adjust tool 18G 1598 to tilt engine with the gearbox as low as possible.
87. Using assistance, manoeuvre engine and gearbox from vehicle.

CAUTION: Take care not to damage the ABS modulator or brake pipes when removing the engine.

88. Lower engine and gearbox assembly and disconnect hoist from adjustable lifting bracket.

Refit

1. Connect hoist to adjustable lifting bracket tool 18G 1598.
2. Using assistance, raise engine and manoeuvre into position in vehicle.
3. Adjust lifting bracket tool so engine is horizontal in engine compartment.
4. Locate gearbox mounting bracket on engine LH mounting.
5. Fit new Nyloc nut securing bracket to engine mounting and tighten to 160 Nm.
6. Fit engine RH mounting bracket to engine mounting, steady bar and engine.
7. Align mounting bracket to engine, fit bolts and tighten to 160 Nm.
8. Fit nut securing mounting bracket to engine mounting and tighten to 85 Nm.
9. Tighten nuts securing engine mounting to body, to 45 Nm.
10. Fit bolt securing RH steady bar to mounting bracket and tighten to 80 Nm.
11. Lower hoist and disconnect lifting bracket tool 18G 1598 from lifting brackets.
12. Remove bolt securing lifting bracket tool 18G 1572/2 to cylinder head and remove lifting bracket.
13. Remove 2 bolts securing lifting bracket tool 18G 1572/1 to cylinder head and remove lifting bracket.
14. Clean camshaft rear cover plate.
15. Position camshaft rear cover plate to cylinder head, fit bolts and tighten to 25 Nm.
16. Connect engine steady bar to bracket on sump, fit through bolt and tighten to 80 Nm.
17. Tighten through bolt, engine steady bar to subframe, to 80 Nm.
18. Remove plugs from fluid cooler hose unions, lubricate new ’O’ rings with gearbox and fit to unions.
19. Connect fluid cooler hoses to gearbox and tighten unions to 37 Nm.
20. Fit selector cable to abutment bracket and push anti-vibration rubbers into position.
21. Tighten selector cable lock nut to abutment bracket.
22. Slide selector cable rod sleeving into position.
23. Connect selector cable rod to selector rod, DO NOT tighten nut.
