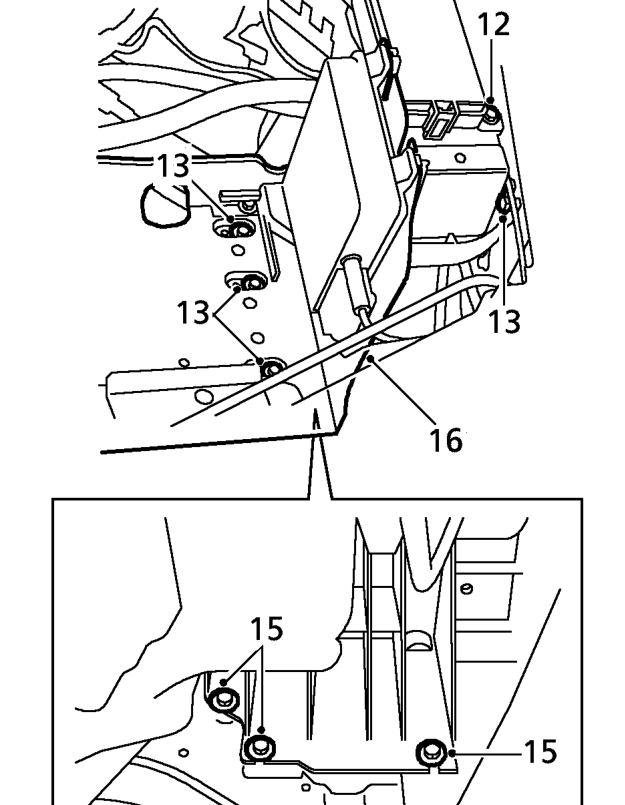

12. Remove bolt securing engine compartment fuse box to battery tray.
13. Remove 4 bolts securing battery tray to body.
14. Remove bolt securing engine compartment fuse box to body and position fuse box aside.
15. Loosen 3 bolts securing battery tray to body.
16. Remove battery tray from vehicle.
17. Release both drive shafts from gearbox as detailed in Differential oil seal. See AUTOMATIC GEARBOX - ’CVT’, Repairs.

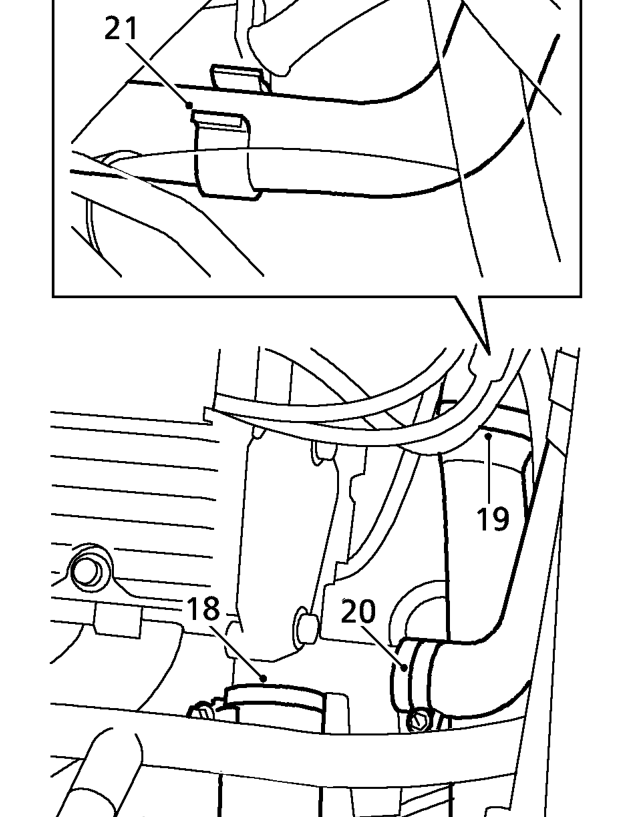

18. Loosen clip and disconnect radiator top hose from coolant outlet elbow.
19. Loosen clip and disconnnect radiator bottom hose from coolant rail.
20. Loosen clip and disconnect heater hose from coolant outlet elbow.
21. Release heater hose from clip on coolant rail and position aside.
