Rover 200 Workshop Manual (1995-1999)06 · Engine - K16
06 · Engine

See ’R65’, Adjustments. (page 4 of 11)

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs
Engine - K16See ’R65’, Adjustments. · page 4 of 11
Diagram

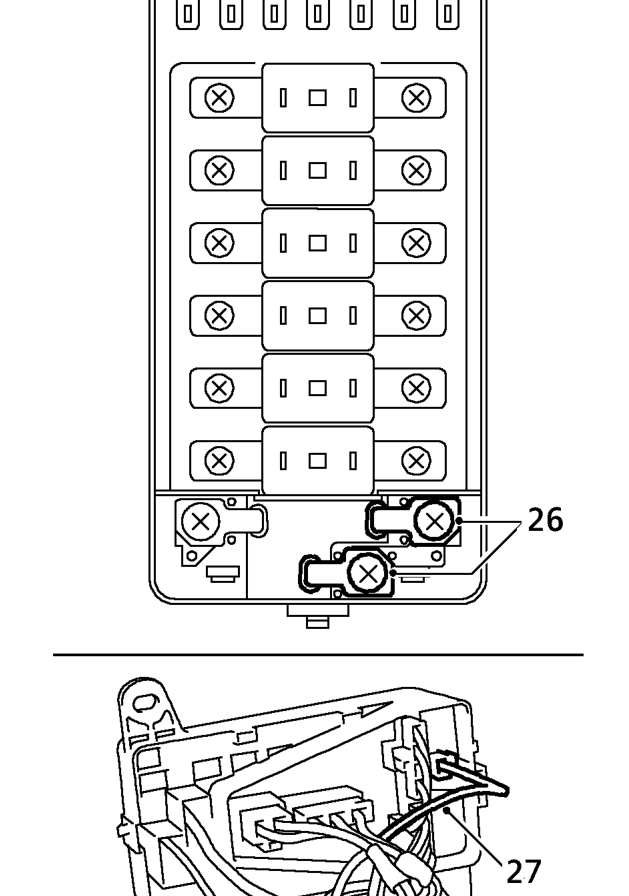

  1. Remove 2 screws securing positive leads to fuse box.
  2. Disconnect multiplug from fuse box.

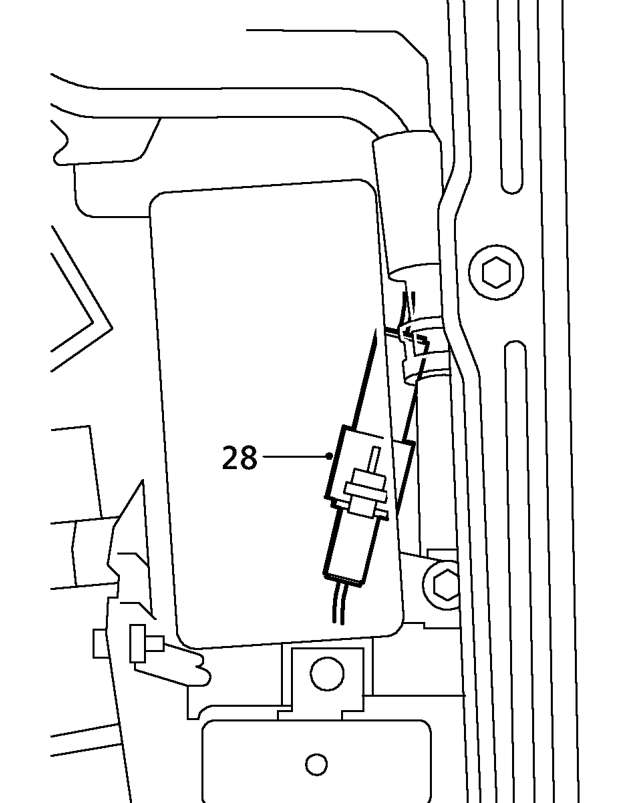

Disconnect multiplug from fuse box.
  1. Disconnect engine harness to main harness connector.
  2. Lay engine harness across engine to avoid it being caught when the engine is removed.
  3. Remove evaporative emission canister. See EMISSION CONTROL, Repairs.
  4. Remove exhaust front pipe. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
  5. Position absorbent cloth around fuel filter outlet union.
