Rover 200 Workshop Manual (1995-1999)06 · Engine - K16
06 · Engine

See ’R65’, Adjustments. (page 8 of 11)

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs
Engine - K16See ’R65’, Adjustments. · page 8 of 11
Diagram

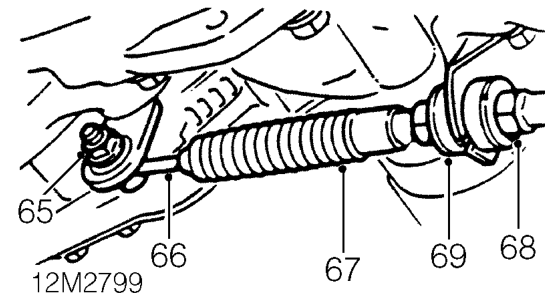

  1. Remove nut securing selector cable rod to selector lever.
  2. Release selector cable rod from selector lever.
  3. Slide rubber sleeving back from lock nut on selector cable rod.
  4. Loosen lock nut securing selector cable to abutment bracket.
  5. Seperate anti-vibration rubbers and release cable from abutment bracket.
Seperate anti-vibration rubbers and release cable from abutment bracket.

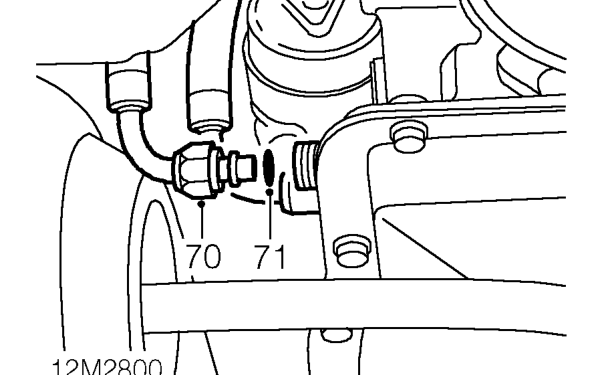

  1. Loosen unions and disconnect 2 fluid cooler hoses from gearbox.
  2. Remove and discard ’O’ rings from fluid cooler hose unions.

CAUTION: Plug the connections.

Remove and discard ’O’ rings from fluid cooler hose unions.

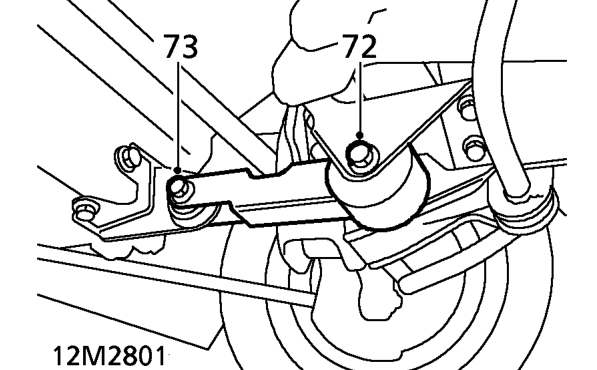

  1. Loosen through bolt securing engine steady bar to subframe.
  2. Remove through bolt securing engine steady bar to bracket on sump.
Remove through bolt securing engine steady bar to bracket on sump.

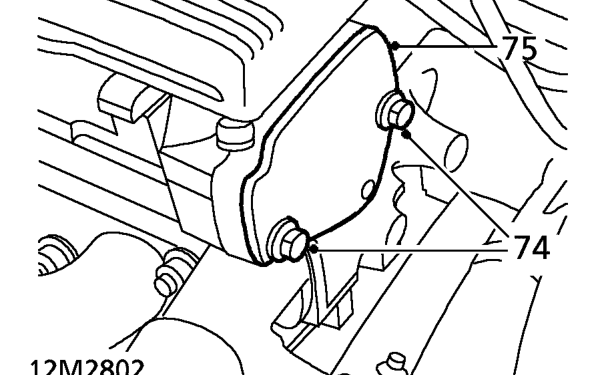

  1. Remove 2 bolts securing camshaft rear cover plate to cylinder head.
  2. Remove camshaft rear cover plate.
