Rover 200 Workshop Manual (1995-1999)08 · Engine - L Series
08 · Engine

Engine and gearbox - models with air conditioning (page 3 of 3)

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs
Engine - L SeriesEngine and gearbox - models with air conditioning · page 3 of 3
Diagram

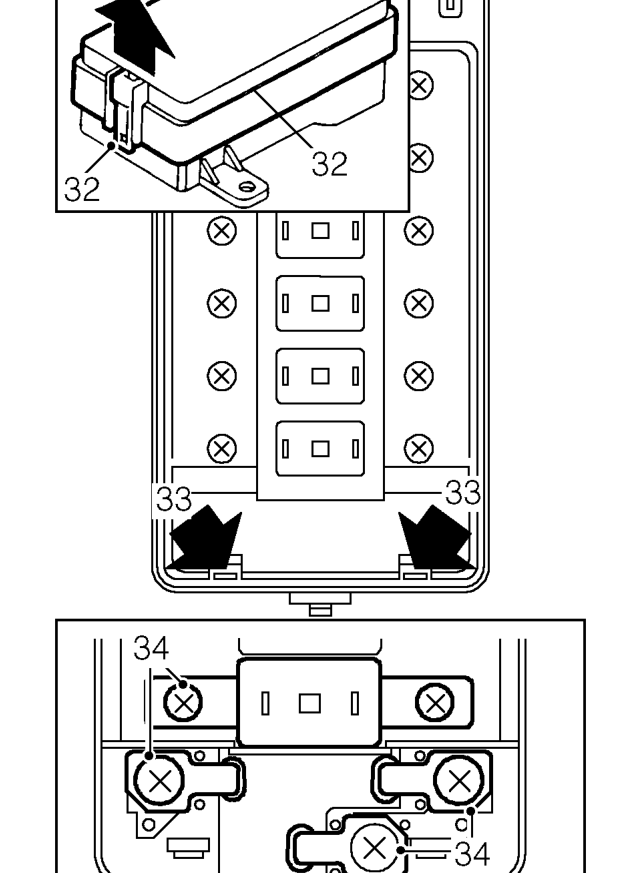

  1. Release clip and remove fuse box cover.
  2. Depress 2 clips and remove fuse box inner cover.
  3. Remove 2 screws securing positive leads to fuse box.
Remove 2 screws securing positive leads to fuse box.

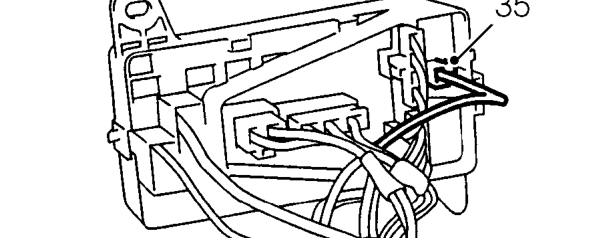

  1. Disconnect multiplug from fuse box.
Disconnect multiplug from fuse box.

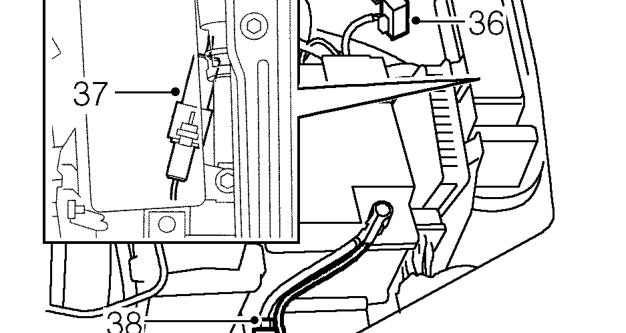

  1. Release glow plug relay from mounting bracket.
  2. Disconnect engine harness to main harness connector.
  3. Remove bolt securing earth lead to bonnet platform.
  4. Remove radiator cooling fan. See COOLING SYSTEM - ’L’ SERIES, Repairs.
Remove radiator cooling fan. See COOLING SYSTEM - ’L’ SERIES, Repairs.

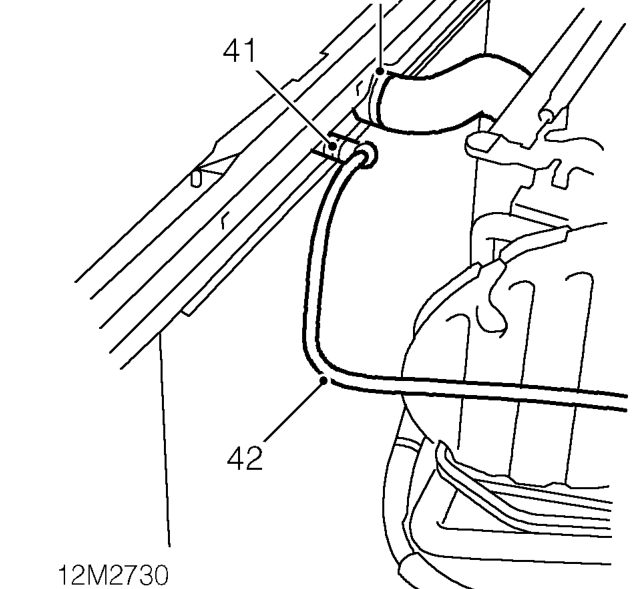

  1. Loosen clip and disconnect top hose from radiator.
  2. Loosen clip and disconnect coolant expansion tank hose from radiator.
  3. Position coolant expansion tank hose aside.
