Engine and gearbox - models with air conditioning (page 2 of 3)

Make

Rover

Model

200 Workshop Manual

Year

1995–1999

Section

Repairs

Engine - L SeriesEngine and gearbox - models with air conditioning · page 2 of 3

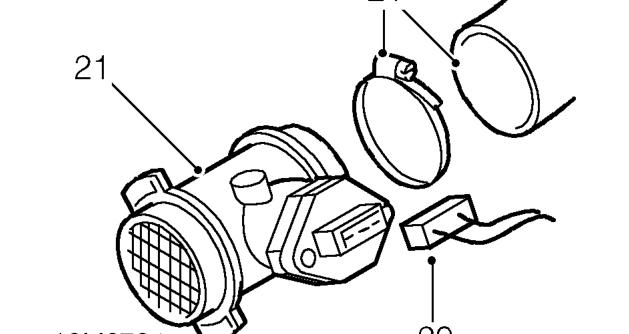

20. Disconnect multiplug from MAF sensor.
21. Loosen clip securing MAF sensor to air intake pipe and remove MAF sensor.
22. Remove exhaust front pipe. See MANIFOLD & EXHAUST SYSTEMS, Repairs.

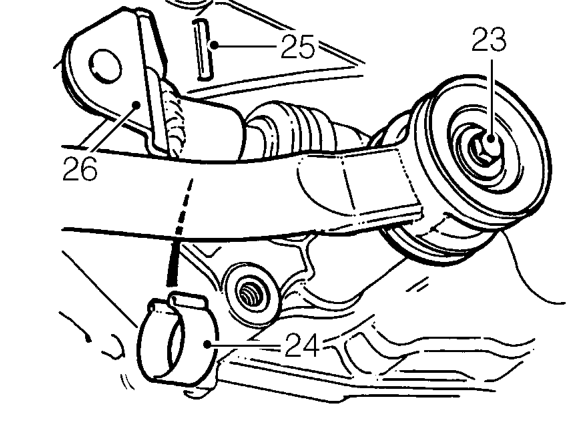

23. Remove bolt and disconnect gear change steady bar from gearbox, collect 2 washers.
24. Remove clip securing selector rod roll pin.
25. Using a suitable punch, drive out roll pin securing selector rod to selector shaft.
26. Release selector rod from selector shaft.
27. Tie selector rod and steady bar aside.

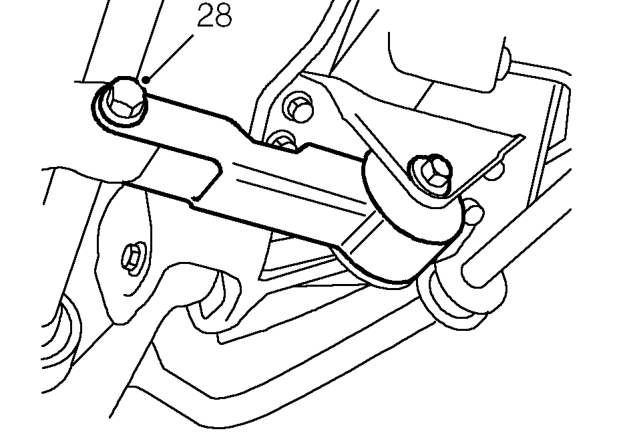

28. Remove through bolt securing engine steady bar to mounting bracket on engine.
29. Remove front beam. See FRONT SUSPENSION, Repairs.
30. Release RH drive shaft from gearbox, as detailed in RH Differential oil seal. See MANUAL GEARBOX - ’PG1’, Repairs.
31. Release LH drive shaft from gearbox, as detailed in differential oil seal. See MANUAL GEARBOX - ’PG1’, Repairs.

08 Engine
