GLOVE BOX LAMP ASSEMBLY

Service Repair No. 86.45.08

Remove

  1. Open passenger door.
Illustrates front suspension control arm mounting bracket location

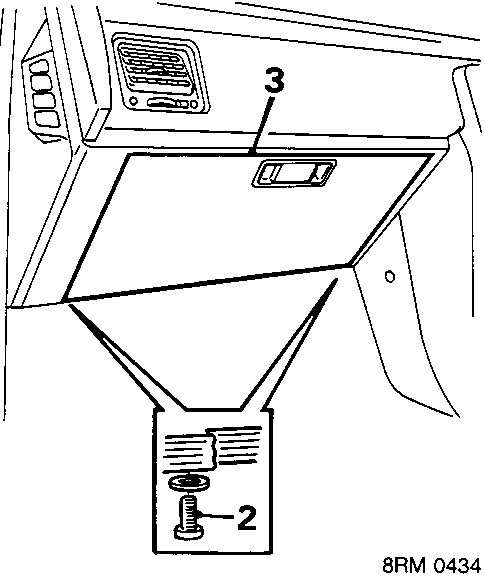

Diagram showing glove box lid and support rail with callout numbers 2 and 3, reference 8RM 0434
  1. Remove 2 screws, glove box lid to support rail.
  2. Remove glove box lid.

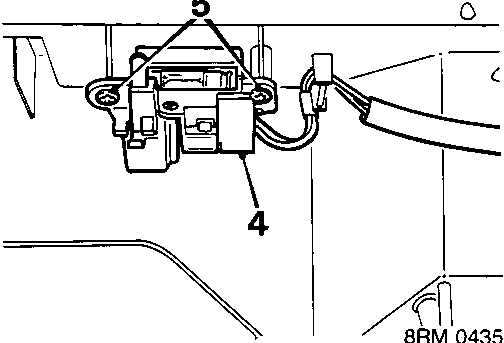

Diagram showing lamp assembly connected to wiring harness with callout numbers 4 and 5, reference 8RM 0435
  1. Disconnect lamp multiplug.
  2. Remove 2 screws, lamp to fascia panel.
  3. Remove lamp assembly.

Refit.

  1. Position lamp assembly to fascia panel.
  2. Fit and tighten screws, lamp to fascia panel.
  3. Connect lamp multiplug.
  4. Position glove box lid.
  5. Fit and tighten screws, glove box lid to support rail.
  6. Close passenger door.

ROOF LAMP ASSEMBLY

Service Repair No. 86.45.02

Remove

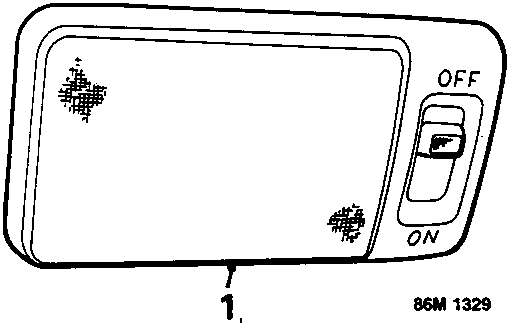

Diagram of roof lamp assembly showing lens and switch positions OFF/ON, reference 86M 1329
  1. Remove lamp lens.

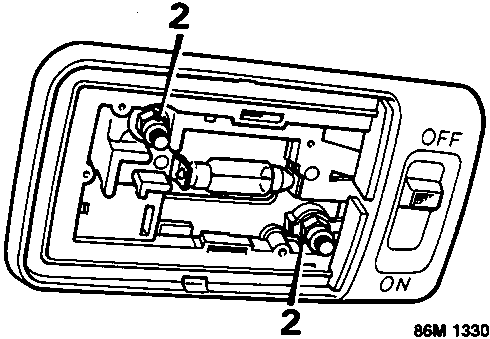

Diagram of roof lamp assembly internal components with callout number 2, reference 86M 1330

With Sun Roof

  1. Remove 2 nuts securing lamp to roof.

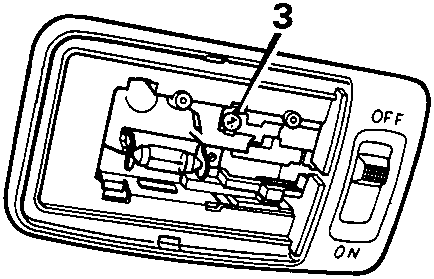

Diagram of roof lamp assembly without sun roof variant showing callout number 3, reference 86M 1331

Without Sun Roof

  1. Remove screw securing lamp to roof.
