Rear speaker – 400 series

REAR SPEAKER – 400 SERIES

Service Repair No. 86.50.12

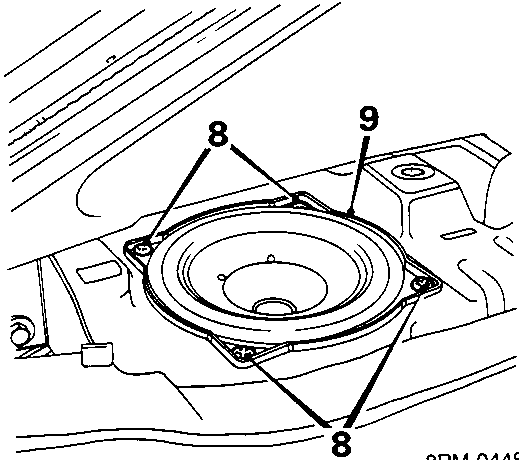

8. Remove 4 screws, speaker to body.
9. Release speaker from panel.

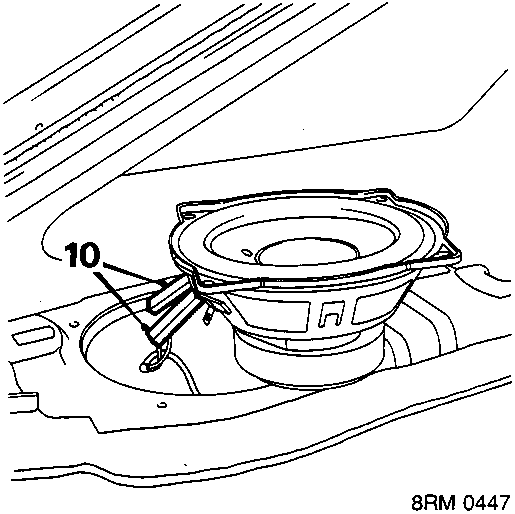

10. Disconnect 2 speaker Lucars.
11. Remove speaker.

Refit

1. Position speaker in panel.
2. Connect speaker Lucars.
3. Align speaker to panel.
4. Fit and tighten screws, speaker to panel.
5. Position grille over speaker.
6. Secure grille in retaining clip.
7. Fit and tighten screws, speaker to grille.
8. Align seat belt guide.
9. Fit and tighten bolts, seat belt upper guide to body.
10. Fit seat belt guide cover.
11. Close luggage compartment.

Remove

1. Open rear luggage compartment lid.

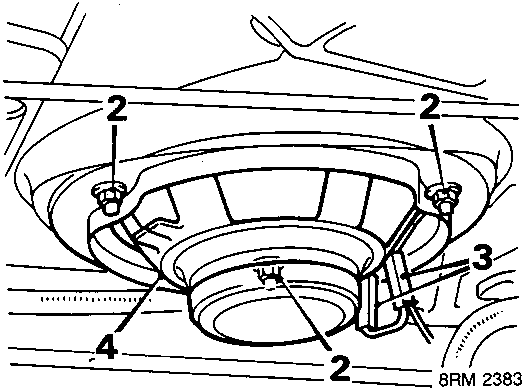

2. Remove 3 nuts, speaker to rear parcel shelf.
3. Disconnect 2 speaker Lucars.
4. Remove the speaker through parcel shelf into the car.

Refit

1. Position speaker and insert mounting studs through holes in parcel shelf.
2. Fit and tighten nuts to secure speaker.
3. Fit Lucars to speaker.
4. Close lid of rear luggage compartment.
