Service Repair No. 86.10.02

Remove

  1. Open bonnet.
  2. Disconnect battery earth lead.

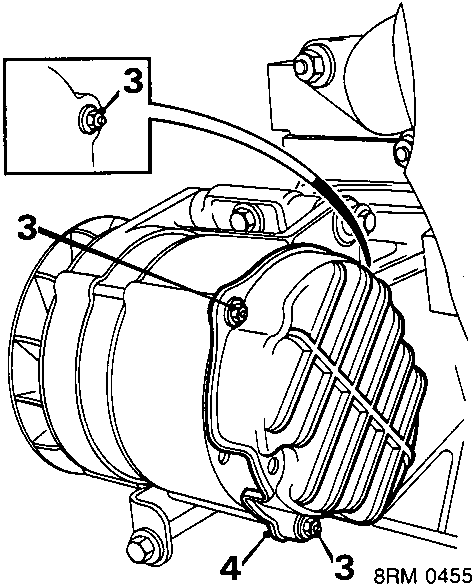

Alternator cover and multiplug area with callout numbers 3 and 4
  1. Remove 3 nuts and plain washers, alternator cover to alternator.
  2. Remove cover.

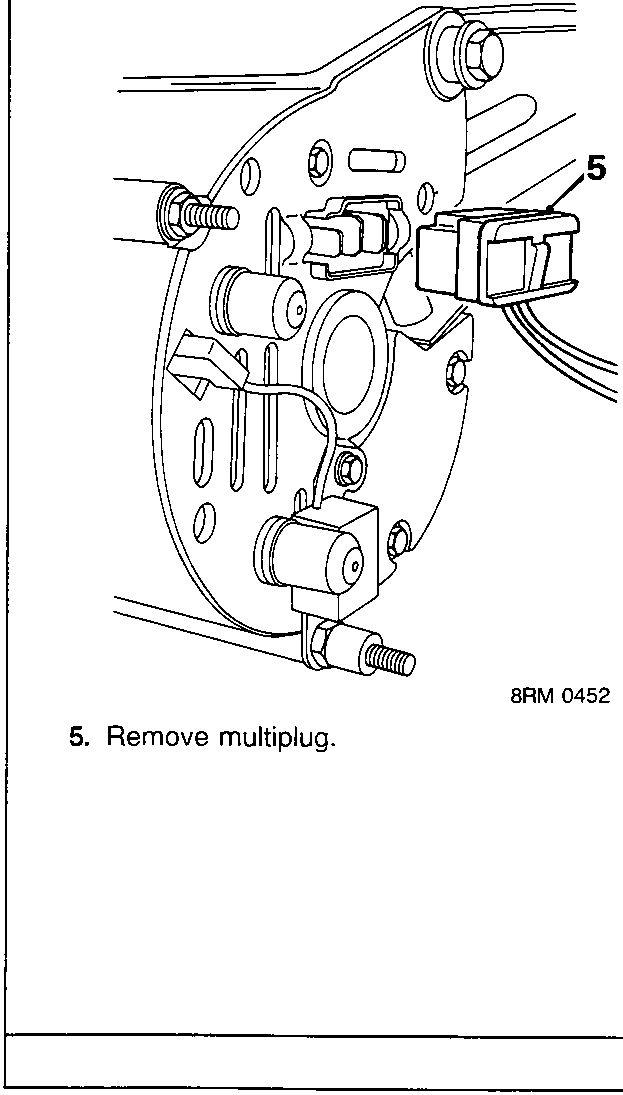

Alternator mounting bracket showing multiplug connection with callout number 5
  1. Remove multiplug.

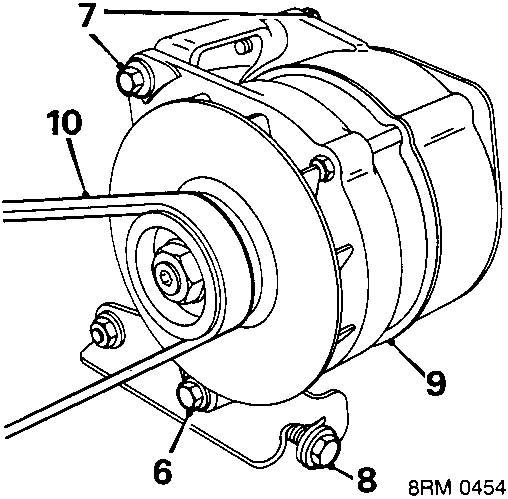

Alternator assembly showing adjustment bracket, pivot bolts, belt tension bolt, and pulley with callout numbers 6 through 10
  1. Remove bolt, alternator to adjustment bracket.
  2. Slacken 2 alternator pivot bolts.
  3. Slacken alternator belt tension bolt.
  4. Pivot alternator.
  5. Release belt from alternator pulley.
  6. Remove alternator pivot bolts.
  7. Remove alternator.
Alternator pulley and centre shaft with locknut, callout numbers 13 and 14
  1. Hold alternator centre shaft.
  2. Remove pulley locknut.

Refit

  1. Clean pulley and shaft.
  2. Fit pulley to alternator.
  3. Fit and tighten pulley locknut to 25 Nm.
  4. Position alternator in vehicle.
  5. Fit alternator pivot bolts. Do not tighten.
  6. Fit belt to alternator pulley.
  7. Fit bolt, alternator to adjustment bracket. Do not tighten.
  8. Tension alternator drive belt, see MAINTENANCE.
  9. Fit multiplug.
  10. Position cover.
  11. Fit plain washer and nuts, alternator cover to alternator. Tighten nuts.
  12. Connect battery earth lead.
  13. Close bonnet.
